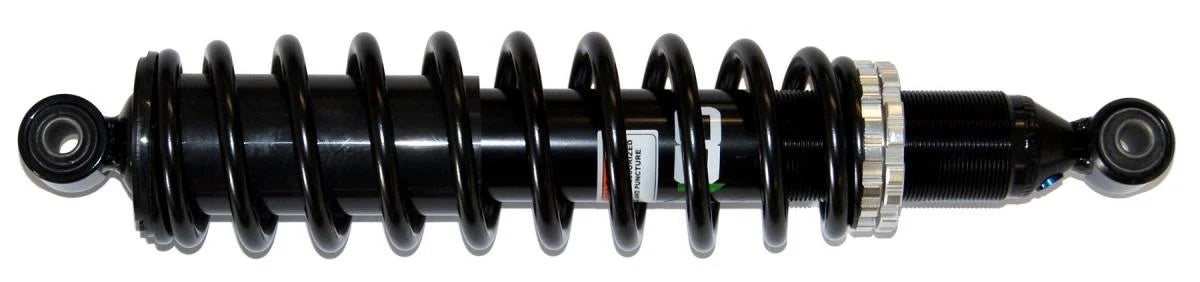

SHOCK ATV 5UH-F3350-01-00 YAMAHA BRUIN GRIZZLY, BRONCO AU-04318 YAMAHA

FITMENT:

• BRUIN 350 2WD/4WD 2005-06
• GRIZZLY 350 2WD/4WD 2007-11
• GRIZZLY 350 IRS 2007
• GRIZZLY 350 IRS 2008-11
• GRIZZLY 400 2008

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 38
• STROKE MM: 98.5

• SPRING OD MM: 73

• SPRING WIRE DIAMETER MM: 7 4/5

• SPRING RATE LBS/INCH: 92

• SPRING RATE KG/MM: 1.65

• CENTER TO CENTER MM: 360

• CENTER TO CENTER IN: 14 1/6

Part No. 29-5783 (oro2u.com)
Cross reference numbers ONLY. AU-04318, 5UH-F3350-01-00,
