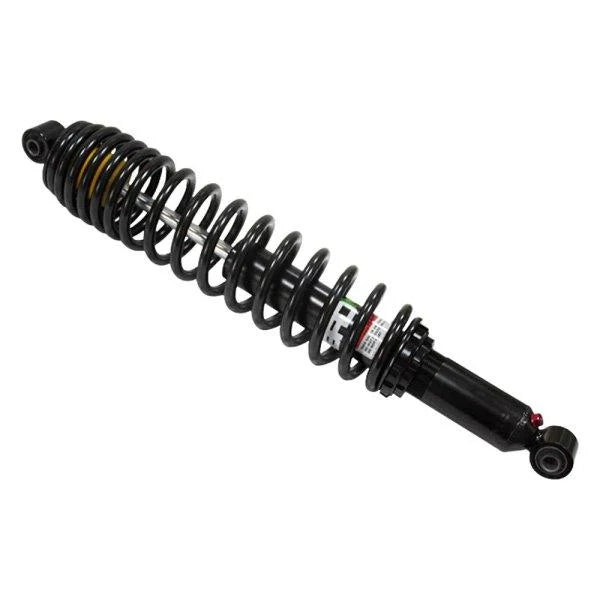

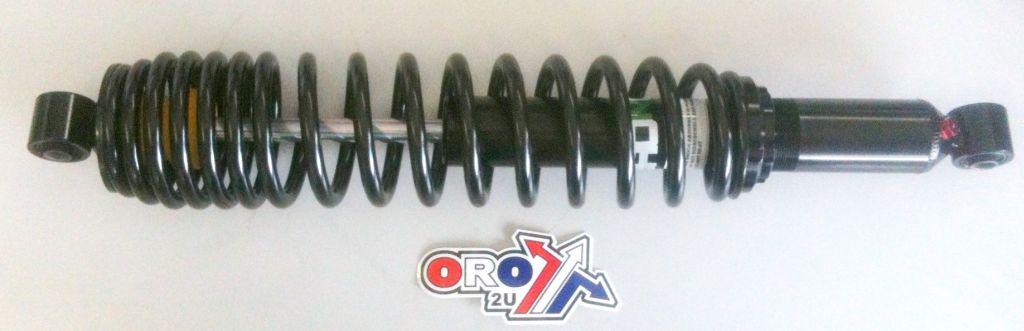

SHOCK ATV REAR 410mm BRONCO CAN-AM, OUTLANDER 330 03-05400 04-15, AU-04414, 706000391

BRONCO HEAVY DUTY GAS SHOCKS AU-04414

Fits ATV Models:Bronco gas shocks offer long term consistent performance over stock oil only damped shocks

10% stiffer springs provide a better ride and higher load capacity

Works great on the front when installing a snow plow

Smooth black color blends perfectly with any OEM ATV

Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box

Sold individually - Includes one shock, with spring, and spring retainers

 CAN-AM FITMENT:

• OUTLANDER 330 STD 2003-05


• OUTLANDER 400 STD/XT 2004-15

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10


• TOP EYELET WIDTH MM: 32


• BOTTOM HOLE I.D MM: 12


• BOTTOM EYELET WIDTH MM: 32


• TUBE O.D MM: 38


• STROKE MM: 155


• SPRING OD MM: 79


• SPRING WIRE DIAMETER MM: 9


• SPRING RATE LBS/INCH: -


• SPRING RATE KG/MM: -


• CENTER TO CENTER MM: 464


• CENTER TO CENTER IN: 18 1/4

OEM Cross-reference Numbers Only: 706000248, 706000391
