TIE ROD END KIT POLARIS KAW, ALLBALLS 51-1013 KVF 300 400

Tie Rod End Kit

Brand: ALLBALLS

Part Number: 51-1013

Alternate Part Number: 0430-0063

Part Number: 17-7004 (oro2u.com)

Description:

• Replaces loose or worn tie-rod ends.


• Kits include both inner and outer ends for one tie-rod.


• Note: Part may not be the same as the picture shown.

Included Items:

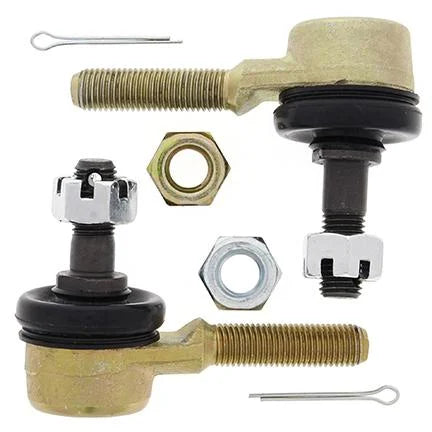

• (2) Tie rod ends


• (2) Cotter pins

Dimensions:

Tie Rod 1:

• Tie Rod End: 10mm x 1.25 RH external threads


• Spindle End: 10mm x 1.25 RH external threads (Non-tapered end)

Tie Rod 2:

• Tie Rod End: 10mm x 1.25 LH external threads


• Spindle End: 10mm x 1.25 RH external threads (Non-tapered end)

Fits the following Kawasaki models:

• KVF300A Prairie 4x4 (2001-2002)


• KVF300B Prairie 2x4 (2001-2002)


• KVF400C Prairie 4x4 (2001-2002)


• KVF400D Prairie (2001-2002)
