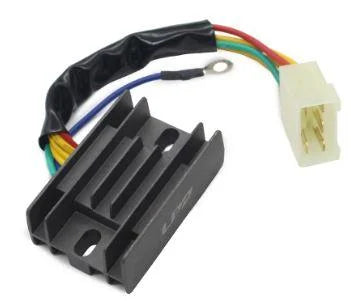

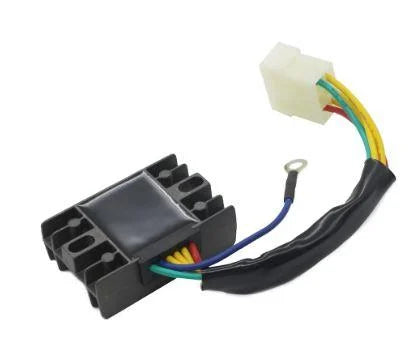

VOLTAGE REGULATOR RECTIFIER 90-10 APRILIA CLASSIC LEONARDO MX PEGASO RS RX SCARABEO SX AP8112906

This 12 V voltage regulator rectifier is a direct replacement charging-system component for selected Aprilia motorcycles from 1990 to 2010. It converts three-phase electrical input to regulated DC output for the motorcycle’s charging system and is manufactured to OEM specifications to match the original equipment in appearance and mounting arrangement.

Features

• Meets or exceeds OEM quality requirements.


• Manufactured using high-technology materials for reliability and performance.


• Direct OEM-style replacement.


• Fits the original stock mounting location.


• Designed to handle increased electrical power loads.


• Intended as a cost-effective replacement.


• Manufactured to OEM specifications with an appearance matching the original equipment.


• Installation is straightforward; professional installation is recommended if unsure.


• Check the product image against the original unit before ordering to confirm compatibility.

Specifications

• Voltage: 12 V


• Current: 20 A


• Input type: Three-phase


• Technology: SCR


• Output type: DC


• Height: 28 mm


• Width: 47 mm


• Length: 76 mm


• Mounting pitch: 60 mm


• Sensor: Yes

Cross-Reference OEM Part Numbers

• AP8112906


• AP8112434


• ARROWHEAD APG6001

Vehicle Fitments

• Aprilia Classic 125cc, 1995-1999


• Aprilia Leonardo 150cc, 1996-2004


• Aprilia Leonardo 125cc, 1996-2004


• Aprilia MX 125cc, 2004-2006


• Aprilia Pegaso 650cc, 1992-1996


• Aprilia Pegaso 600cc, 1990-1991


• Aprilia RS 250cc, 1998-2003


• Aprilia RS 125cc, 1995-2010


• Aprilia RX 125cc, 1994-2010


• Aprilia Scarabeo 200cc, 1999-2003


• Aprilia Scarabeo 125cc, 1999-2003


• Aprilia Scarabeo 150cc, 1999-2003


• Aprilia SX 125cc, 2008-2010
