SWITCH UNIVERSAL 35020-MY6-670, HONDA XR650L TYPE, KS12-0046

K&S Technologies 44-793 is a universal XR-650L type handlebar switch assembly used to control turn signals, headlight beam selection and horn operation from the handlebar.

Features

• Controls left and right turn signals


• Centre push cancellation for turn signal operation


• Controls headlight high and low beam selection


• Includes horn control


• Supplied with matching 9-pin connector extension lead

Specifications

• Fits 7/8 in handlebars


• Width: 45 mm


• Height: 64 mm


• Depth: 55 mm


• Voltage range: 10–14 V


• Main wire length: 15.5 in (39.37 cm)

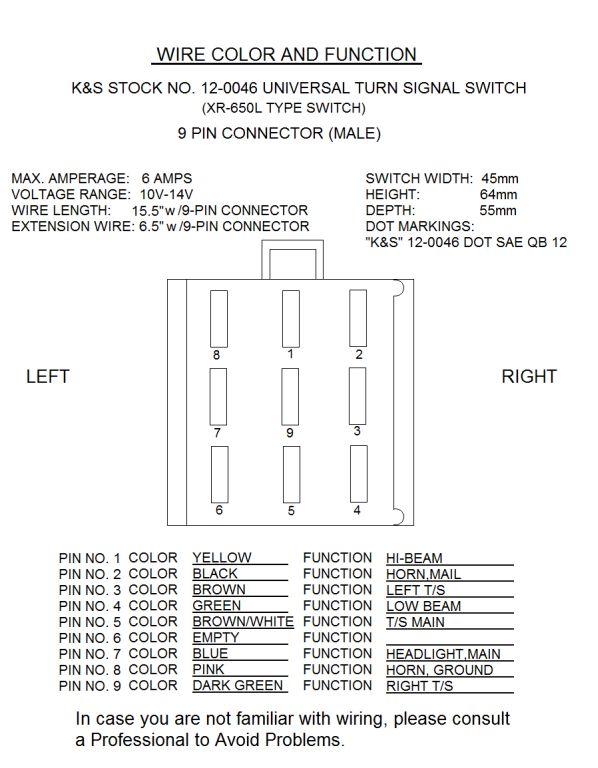

• Connector: 9-pin wire connector


• Extension wire length: 6.5 in (16.5 cm)


• Extension connector: matching 9-pin connector

Cross-Reference OEM Part Numbers

•


  35020-MY6-670
