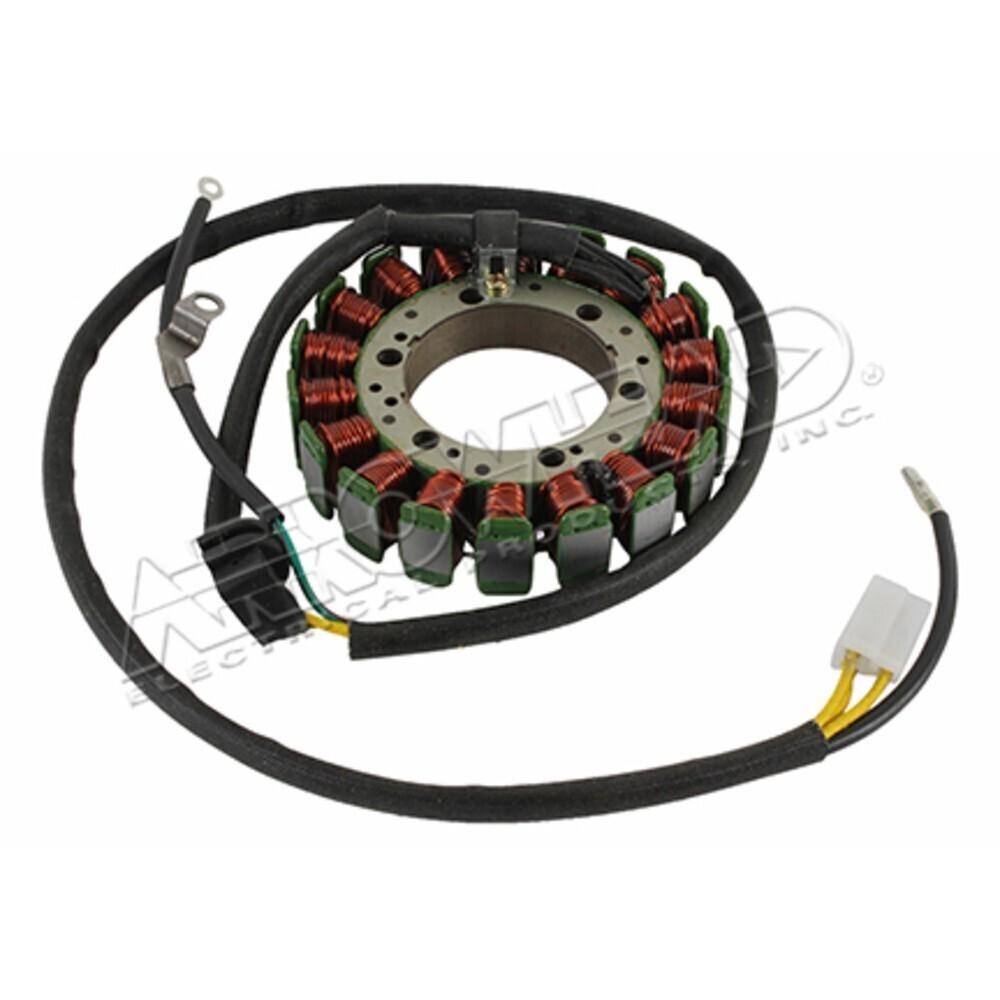

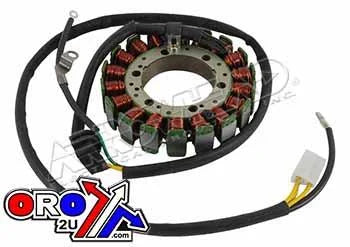

STATOR HONDA XR650L 93-16, AHA4042 31120-MW2-781

Honda

XR650L 1993-2016,

STATOR COIL ARROWHEAD AHA4042

Part No. 44-6388.AH (oro2u.com)

STATOR COIL 12V. ARROWHEAD AHA4042

ID 53.5mm, OD 115.6mm, Width (OD) 26.8mm,

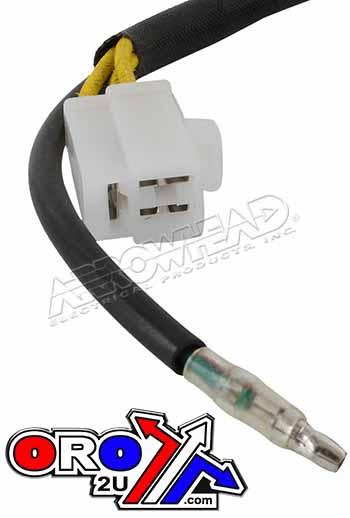

Width (ID) 16.0mm, # Posts 18, Mounting Holes (6) - 6mm OD, Cord Length (Total) 900mm, Cord Length (To Grommet) 140mm, Notes: Windings Sealed in Epoxy,

Cross reference numbers ONLY. 31120-MW2-781,
