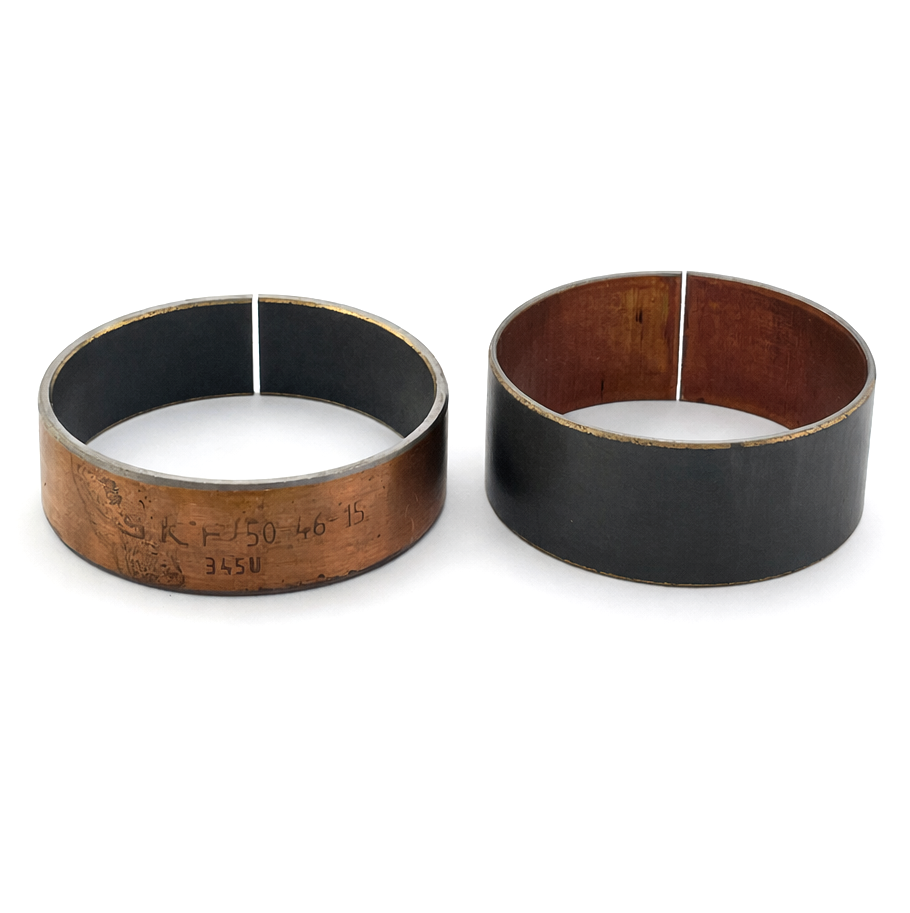

SKF FORK GUIDE & SLIDE BUSHING SET 46mm (TYPE2) - KAYABA VKWA-KYB46-B

SKF fork bushing kit for 46 mm Kayaba (KYB) front forks, supplied as one inner and one outer bushing for servicing a single fork leg, designed to provide low-friction fork guidance with corrosion-resistant backing and reduced routine maintenance.

Features

• Suitable for Kayaba (KYB) 46 mm front forks (Type 2 / Type B)


• Kit services one fork leg (two kits required to service both forks)


• Maintenance-free operation (no lubrication required)


• Low-friction sliding performance to reduce stiction


• High load-carrying capability under side load


• Stable operation across a wide temperature range


• Small operating clearance for improved fork guidance


• Dimension marking for quick product identification


• Front mounting position

Specifications

• Kit contents: 1 internal bushing, 1 external bushing


• Fork inner tube diameter: 46.0 mm


• Internal bushing dimensions: 46 × 50 × 15 mm


• External bushing dimensions: 45 × 47 × 20 mm


• Sliding layer: PTFE-based


• Intermediate layer: thin bronze layer


• Backing: steel with copper plating (corrosion protection)

Cross-Reference Numbers

• VKWA-KYB46-B


• SKF-VKWA-KYB46-B


• 1122523

Vehicle Fitments

• Suzuki RM250 (2003)


• Yamaha WR250F (2004)


• Yamaha WR450F (2004)
