SKF FORK GUIDE & SLIDE BUSHING SET 41mm (Type1) - KAYABA VKWA-KYB41-A

SKF fork guide and slide bushing set for 41 mm Kayaba (KYB) front forks (Type A), supplied as one inner bushing and one outer bushing to service a single fork leg, intended to provide low-friction fork guidance with a self-lubricating sliding surface and corrosion-resistant backing.

Features

• Suitable for 41 mm Kayaba (KYB) front forks (Type A)


• Kit services one fork leg (two kits required to service both forks)


• Maintenance-free operation


• Low-friction properties under side load


• High load-carrying capability


• Stable operation across a wide temperature range


• Small operating clearance for improved guidance


• Dimension marking for quick product identification

Specifications

• Fork inner tube diameter: 41.0 mm

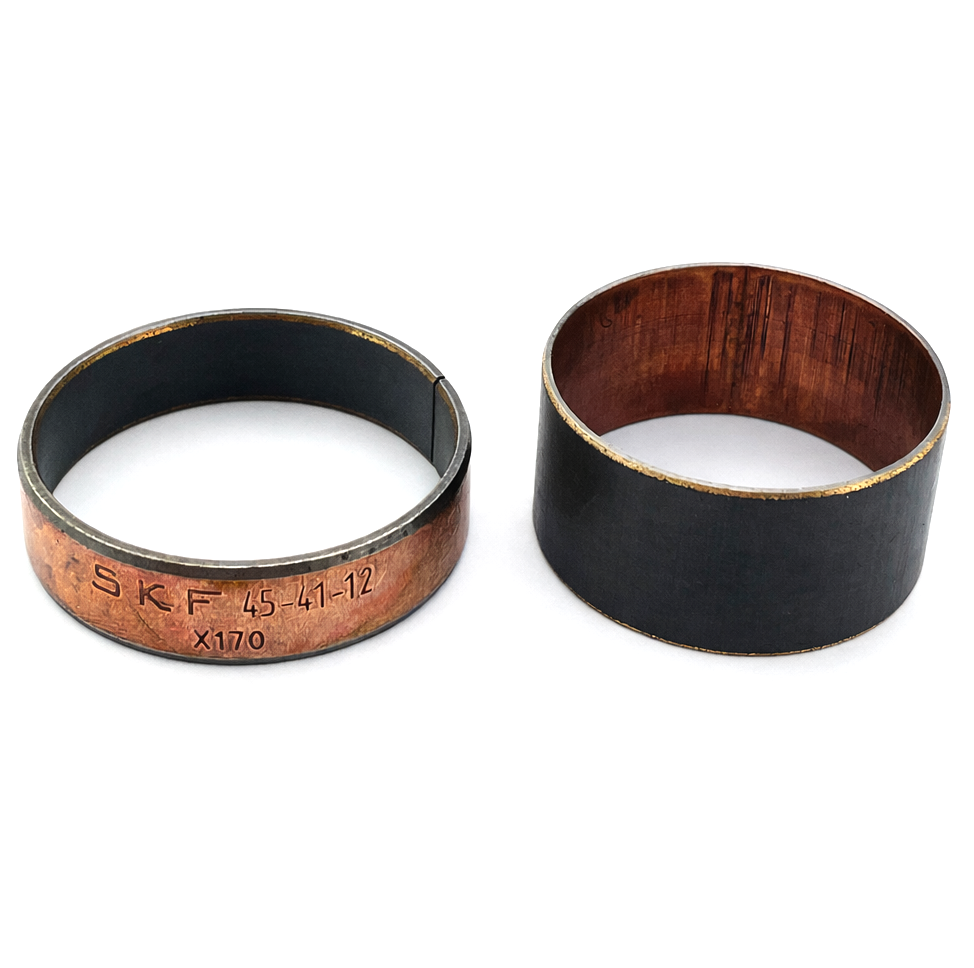

• Kit contents: 1 internal PTFE bushing, 1 external PTFE bushing


• Internal bushing dimensions: 41 × 45 × 12 mm


• External bushing dimensions: 39 × 41 × 20 mm


• Sliding layer: PTFE-based self-lubricating composite


• Intermediate layer: thin bronze layer


• Backing: copper-plated steel (corrosion protection)

Cross-Reference Numbers

•


  VKWA-KYB41-A




Vehicle Fitments

• Honda XR 250 R 2003-2004


• Kawasaki KX 125 1989-1992


• Kawasaki KX 500 1990


• Suzuki RM 250 1987-1990


• Yamaha YZ 125 1989-1990


• Kawasaki KX 250 1990-1991
