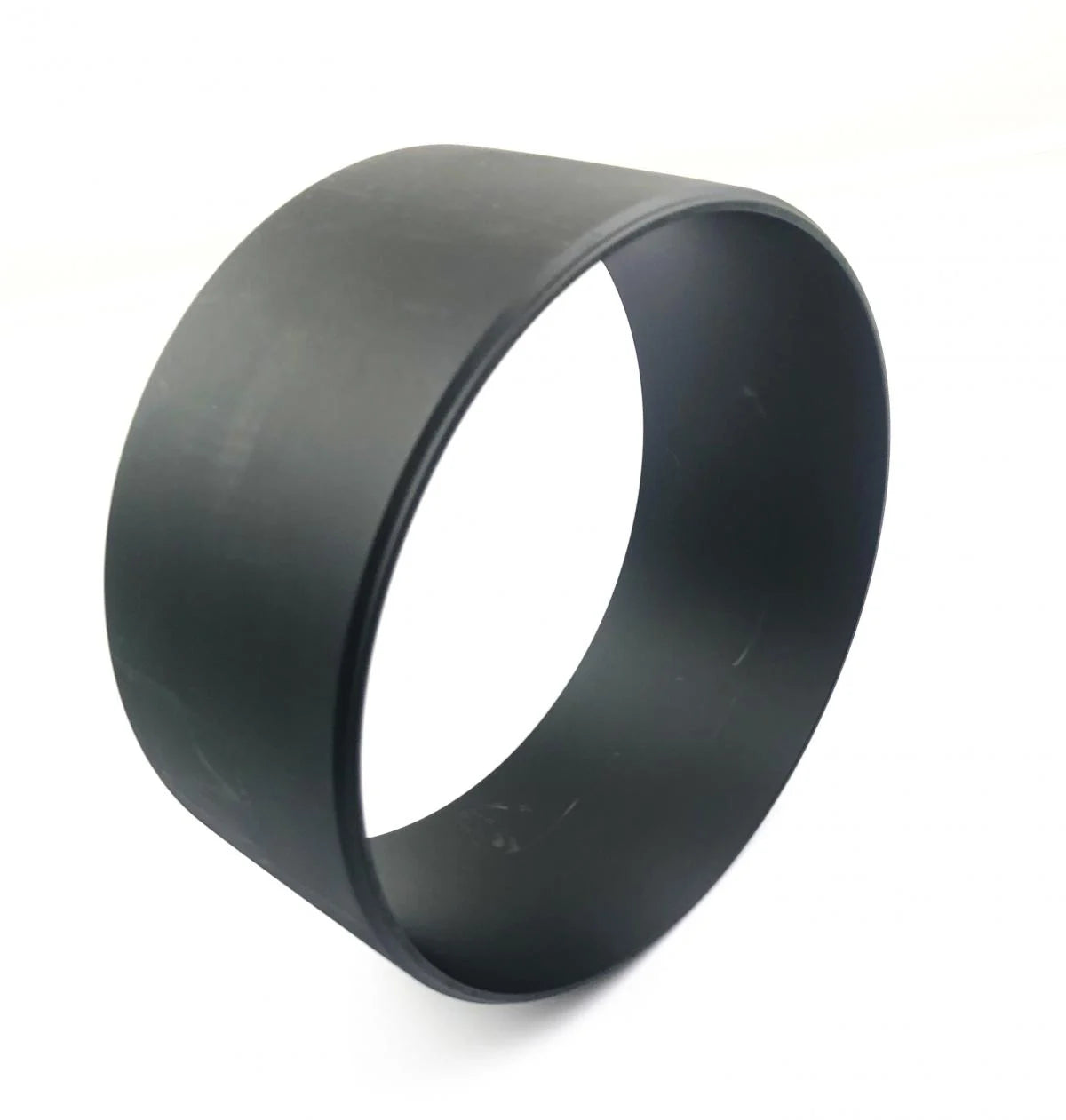

SEA-DOO JET PUMP WEAR RING KIT, WC-03009-1K, 003-501, JET SKI, PWC DRIVE PARTS

This jet pump wear ring kit is designed for Sea-Doo Spark models using the 140 mm pump, restoring correct impeller clearance to maintain thrust and reduce cavitation. Supplied as a kit with wear ring and pump/pump-to-hull seal, it is a direct replacement for the original liner. Equivalent aftermarket references include WC-03009-1K (kit) and 003-501 (wear ring).

Features

• Direct replacement wear ring for Sea-Doo Spark 140 mm pumps


• Includes pump/pump-to-hull seal for correct installation


• Restores impeller clearance to minimise cavitation and performance loss


• Precision-moulded polymer liner for consistent fit and finish


• Simple slip-in installation into the jet pump housing

Specifications

• Pump size: 140 mm


• Dimensions (approx.): 140.6 mm (ID) × 146.6 mm (OD) × 69 mm (length)


• Material: moulded polymer liner


• Kit contents: wear ring ×1, pump/pump-to-hull seal ×1


• Manufacturer references: WC-03009-1K (kit), 003-501 (wear ring)

Cross-Reference OEM Part Numbers

• 267000617


• 267000813


• 267000883


• 267000925

Vehicle Fitments

• Sea-Doo Spark 2Up 900 2015–2020


• Sea-Doo Spark 2Up HO 900 2015–2020


• Sea-Doo Spark 3Up HO 900 2015–2020


• Sea-Doo Spark 60 2Up 900 2021–2024


• Sea-Doo Spark 90 2Up 900 2021–2024


• Sea-Doo Spark 90 3Up 900 2021–2024


• Sea-Doo Spark DT 900 2014


• Sea-Doo Spark NA 900 2014


• Sea-Doo Spark TRIXX 1Up 900 2024


• Sea-Doo Spark TRIXX 2Up 900 2017–2023


• Sea-Doo Spark TRIXX 3Up 900 2017–2024
