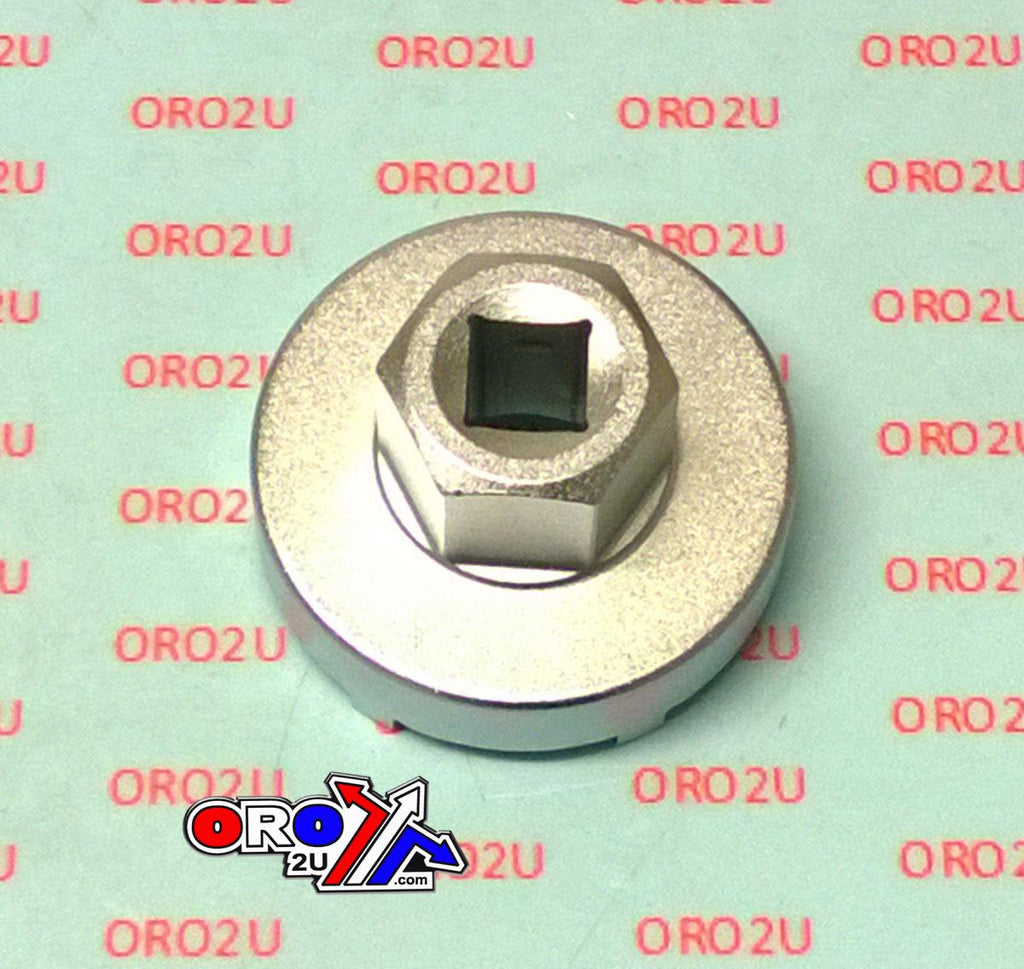

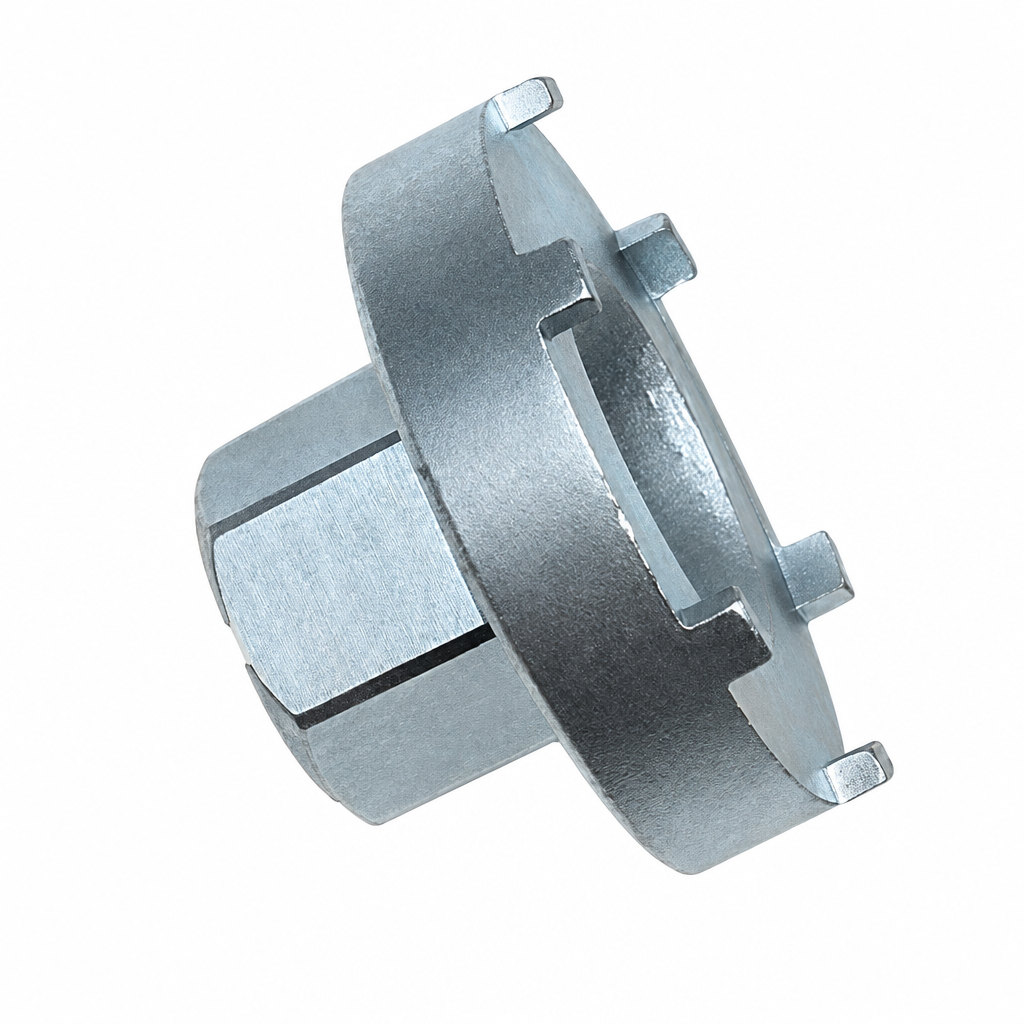

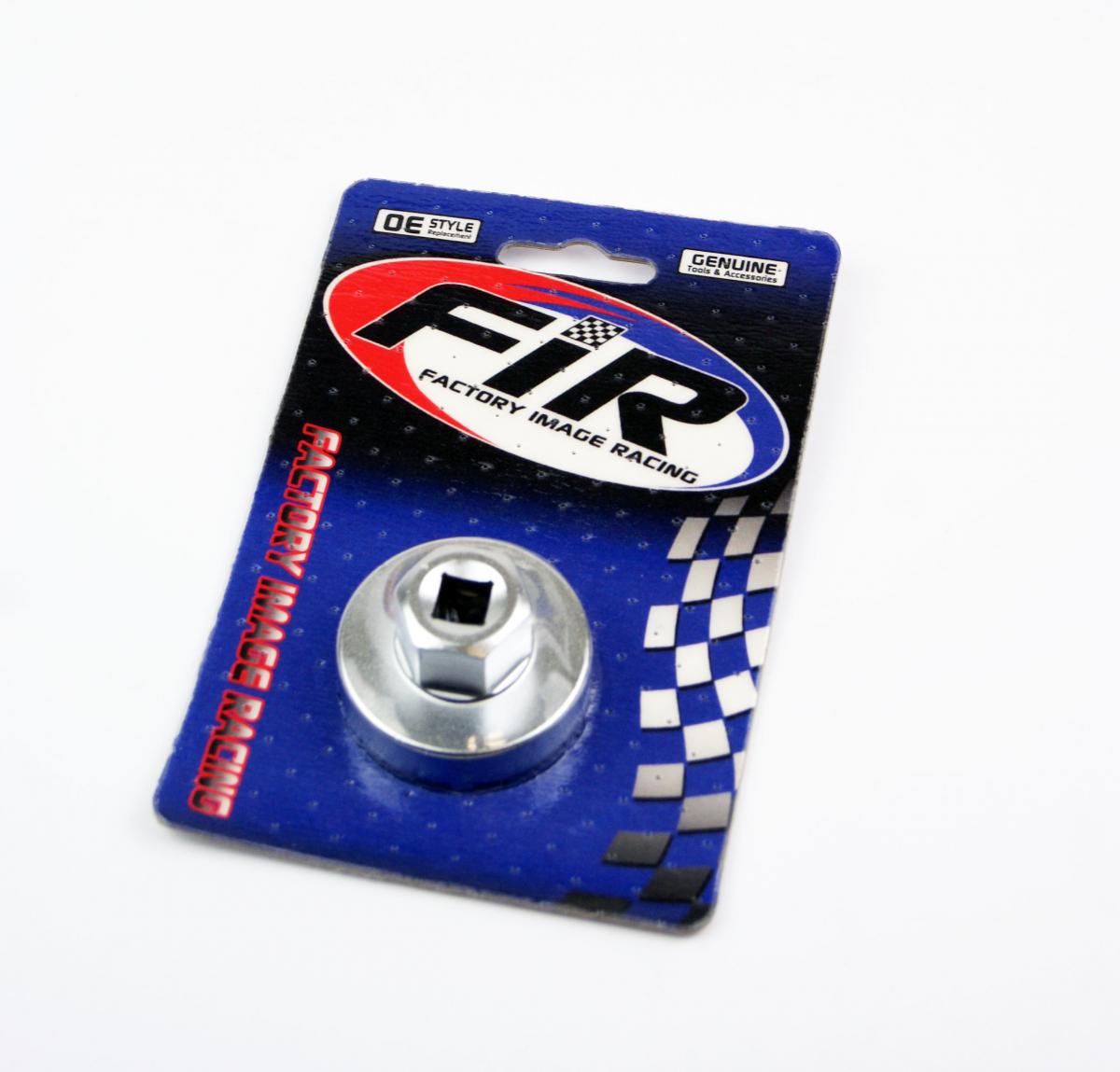

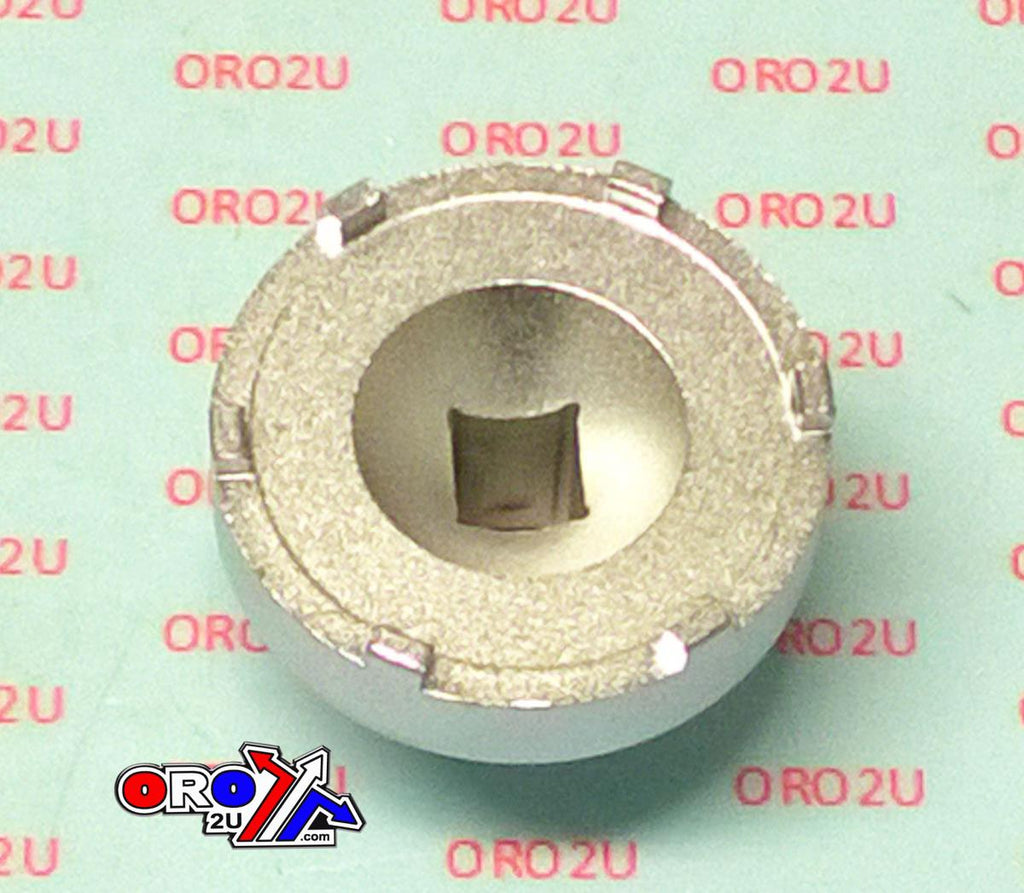

RETAINER REMOVE TOOL 6 Lug 47

This six-lug retainer tool removes and installs rear wheel bearing and seal retainer rings. It is designed for 47 mm lock rings and can be driven using a hex socket or square-drive tool.

Features

• Helps prevent damage to the retainer ring after peened stakes have been removed by drilling.


• Used to remove and replace rear wheel bearing and seal retainer rings.

Specifications

• Lock ring size: 47 mm


• Lug count: 6


• Drive interfaces: 22 mm hex and 3/8-inch square drive

Cross-Reference OEM Part Numbers

• OEM tool numbers: 07HMA-KS70100, 07YMA-KZ40100


• Retainer ring part numbers: 41231-KZ4-J20, 41231-KS6-700


• Motion Pro: 08-0256


• Related reference: AT-12953

Vehicle Fitments

• Honda CR125R: 2000–2007


• Honda CR250R: 2000–2007


• Honda CR500R: 1987–1988


• Honda CRF250R: 2004–2007


• Honda CRF250X: 2004–2007


• Honda CRF450R: 2002–2007


• Honda CRF450X: 2005–2008
