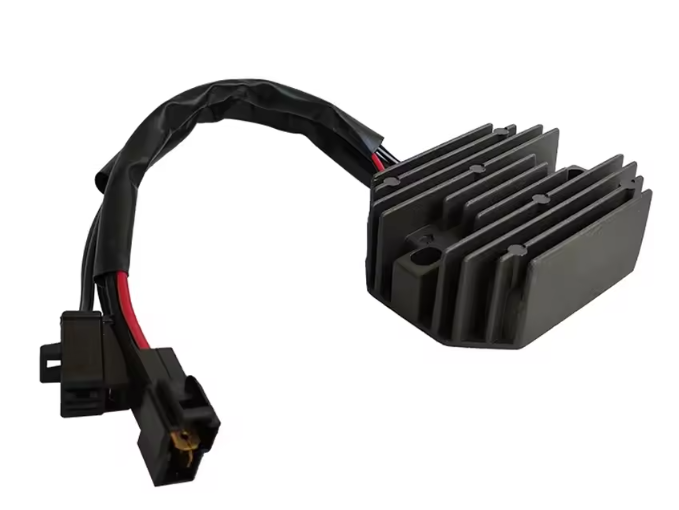

REGULATOR VOLTAGE 12v / 25A, 32800-30B01/ 32800-33C00 32800-33C01

The DZE motorcycle voltage regulator controls charging-system output and converts the alternator’s three-phase supply to DC for the battery and electrical system. It is a replacement unit for the Suzuki models and years listed below.

Features

• Direct replacement for the original charging-system regulator.

Specifications

• Rated voltage: 12 V


• Rated current: 25 A


• Input: three-phase


• Output: DC


• Technology: SCR


• Dimensions: 80 mm long × 70 mm wide × 28 mm high


• Mounting-hole pitch: 60 mm


• Sensor: none

Cross-Reference OEM Part Numbers

• DZE: 02396-04


• Suzuki: 32800-30B01, 32800-33B01, 32800-33C00, 32800-33C01


• Arrowhead and J & N: 230-58242


• Arrowhead (old): ASU6027


• Hi Level: 717835

Vehicle Fitments

• Suzuki DR650S, 650 cc: 1990–1991


• Suzuki GS500, 500 cc: 2001–2002


• Suzuki GS500E, 500 cc: 1989–2002


• Suzuki GSF400 Bandit, 400 cc: 1991–1993


• Suzuki GSX-R400, 400 cc: 1990–1994


• Suzuki DR S 650 1990 1991 32800-30B01


• Suzuki DR 200


• Suzuki Djebel 200


• Suzuki GS E 500 1989 1996 32800-30B01


• Suzuki GS E 500 1989 2002 32800-33C00


• Suzuki GSF Bandit 400 1991 1993 32800-33C01


• Suzuki GSX R 400 1990 1994 32800-33C00


• Suzuki GN 125 32800-37G10-000


• Suzuki GSX 250 1991 1997 32800-22D11


• Suzuki RG Gamma 500 1986 1987 32800-20A00


• Suzuki RGV Gamma 250 1989 1996 32800-22D00


• Suzuki UE 125 2001 2011 32800-20A01


• Suzuki UE 150 2001 2011 32800-20A01
