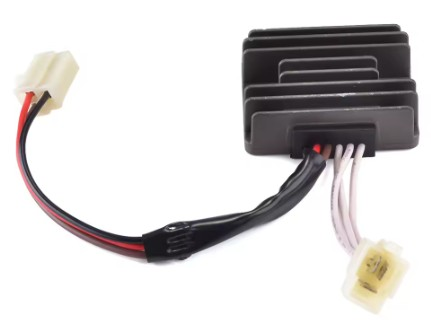

REGULATOR RECTIFIER 81-98 YAMAHA TZR RD RZ SR 125 185 LC 12V 5H0-81960-A0 RR-236

This motorcycle regulator rectifier is a replacement charging-system component for the listed Yamaha models. It regulates charging output to help prevent battery overcharging and converts power for the motorcycle’s electrical system.

Features

• Plug-in installation.


• Cooling fins help dissipate heat.

Specifications

• Input voltage: 12 V DC


• Dimensions: 69 × 54 × 24 mm


• Weight: 0.15 kg

Cross-Reference OEM Part Numbers

• Yamaha: 5H0-81960-A0


• RR-236

Vehicle Fitments

• Yamaha TZR125: 1987–1994


• Yamaha RD125LC: 1982–1984


• Yamaha RZ125: 1982–1985


• Yamaha SR125: 1987–1998


• Yamaha SR185: 1981–1982
