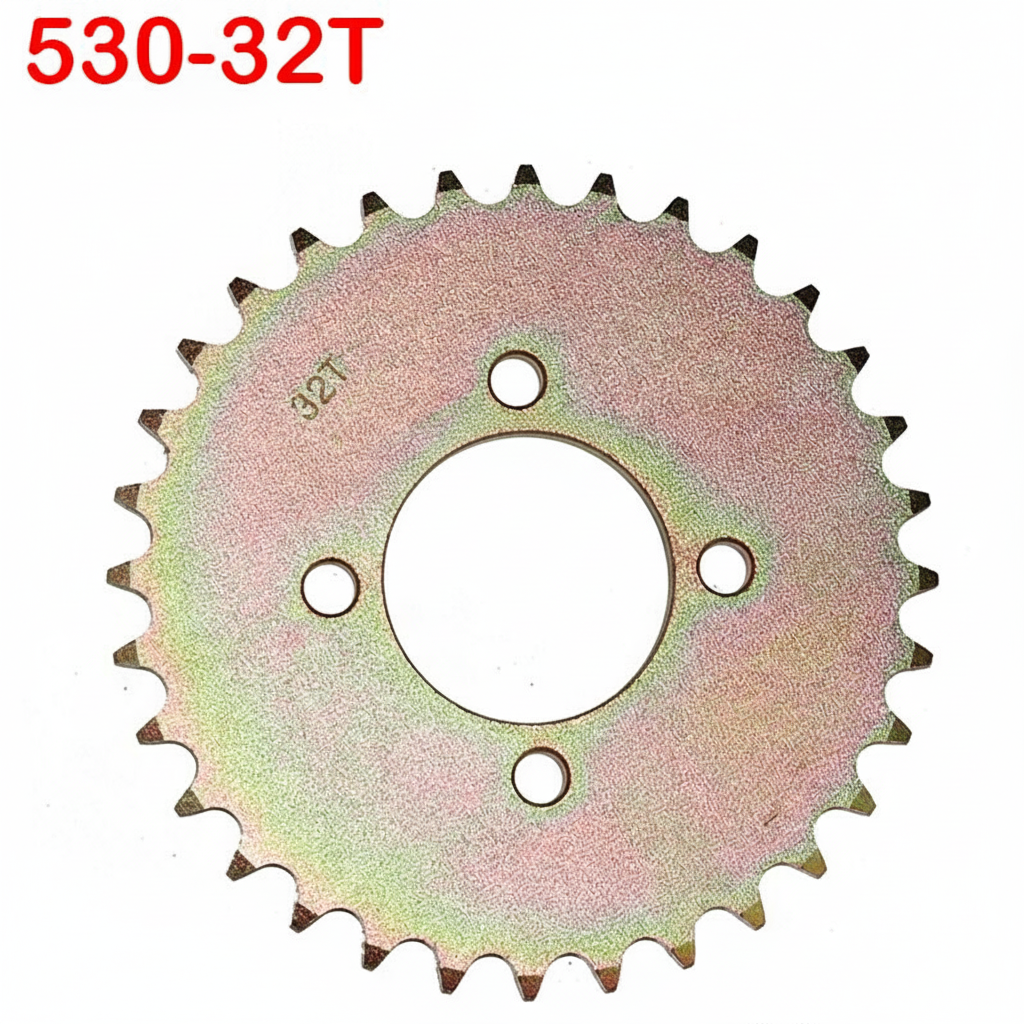

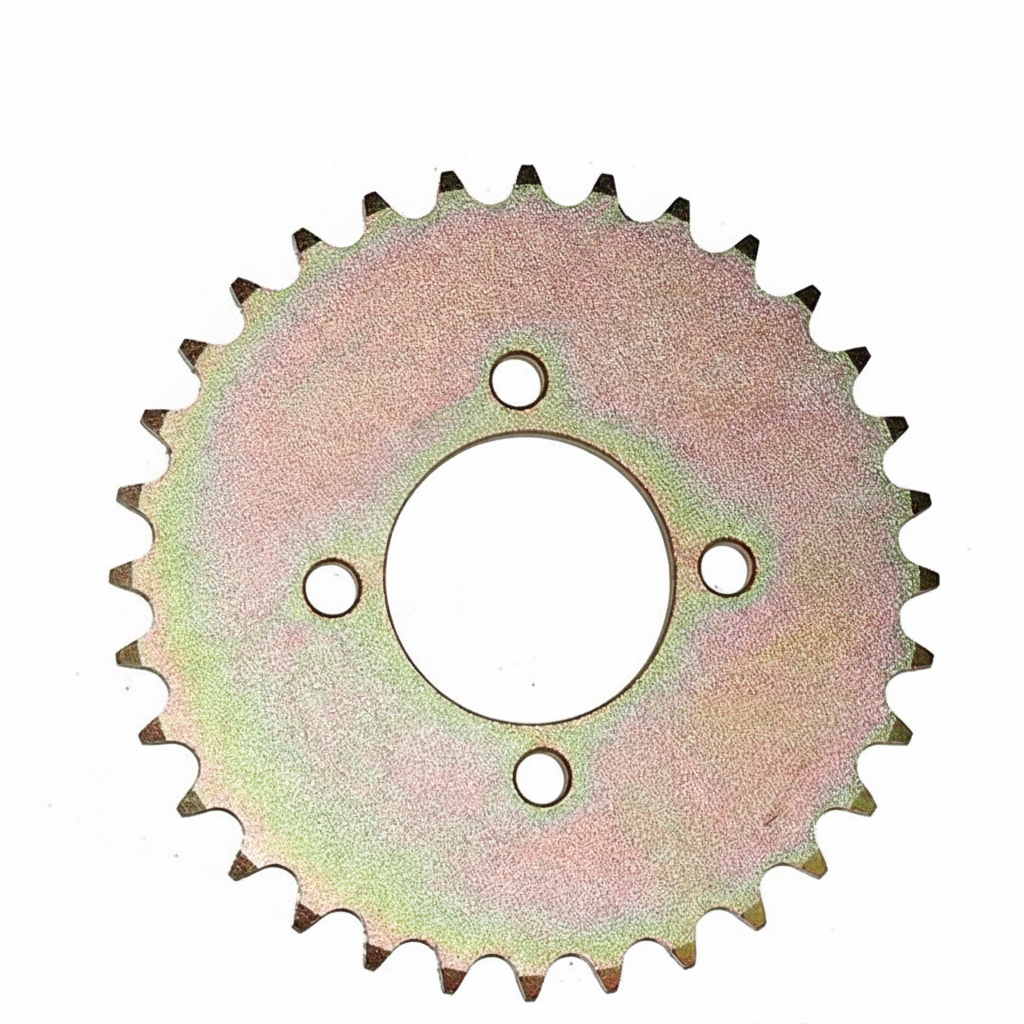

REAR SPROCKET STEEL 32T 58mm ID 80mm PCD 530 CHAIN

This rear chain sprocket is a 32-tooth unit for #530 chain with a 58 mm (approx. 57.6 mm) centre bore. It is commonly used on pit bikes, dirt bikes, ATVs, quads and go karts and is suitable for many 50 cc–160 cc applications where these dimensions are required. The hub pattern uses four mounting holes on an 80 mm bolt circle, making it a frequent replacement choice on various Chinese-origin machines and popular buggy platforms.

Features

• 32-tooth rear sprocket for #530 chain systems


• 58 mm centre bore suited to many pit bike, ATV, quad and go-kart hubs


• Four-bolt mounting on an 80 mm bolt circle


• Steel construction for durability in off-road use


• Suitable for numerous 50 cc–160 cc pit/dirt bike and ATV/quad applications (verify dimensions before purchase)


• Please consult product images and the dimensional information prior to purchase to ensure compatibility


• International versions may have differences in labelling, instructions, or packaging compared with local products

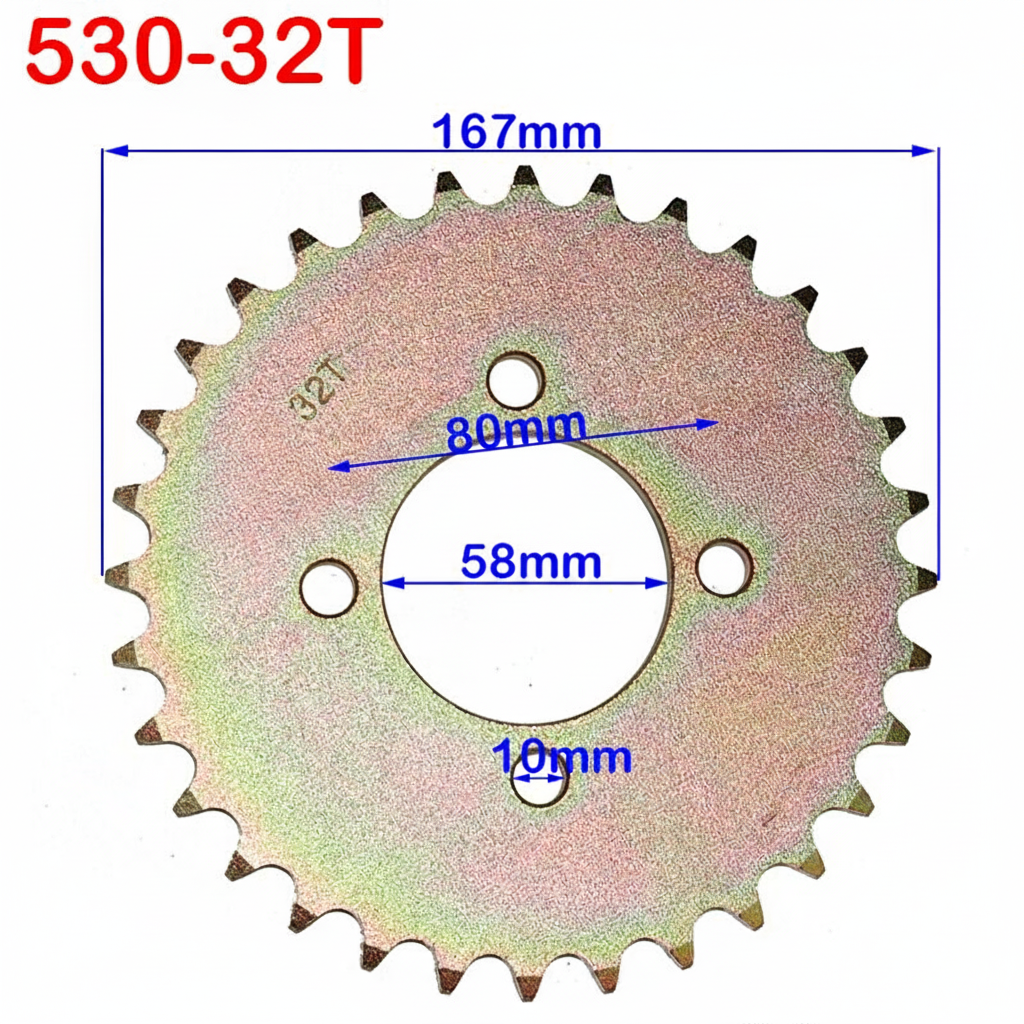

Specifications

• Chain pitch/type: #530


• Tooth count: 32T


• Centre (bore) diameter: 58 mm (approx. 57.6 mm)


• Bolt pattern: 4 mounting holes on 80 mm PCD


• Hole Diameter: 10.5mm


• Material: Steel


• Position: Rear

Vehicle Fitments

• Suitable for many Chinese-origin pit bikes, dirt bikes, ATVs, quads and go karts that use a #530 chain, 58 mm centre bore and 4-bolt 80 mm PCD (measure existing parts to confirm)
