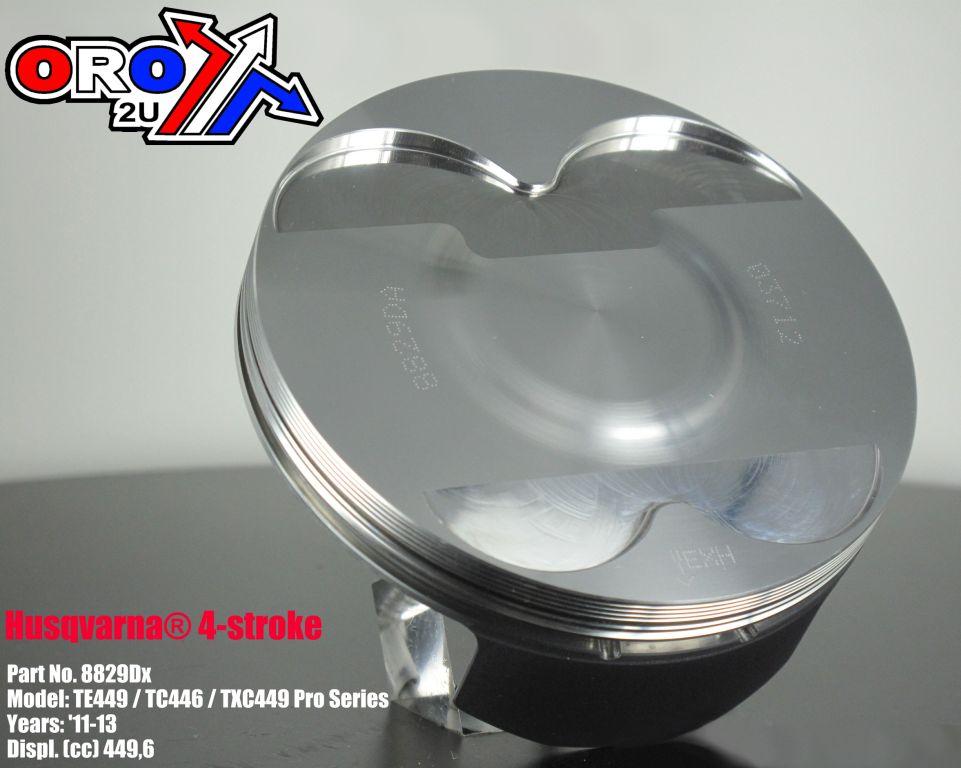

PISTON KIT11-13 TE TC449 98.00, HUSQVARNA WOSSNER 8829DB

Wossner forged piston kit 8829DB is a +0.01mm oversized Pro Series piston with a 98.01mm bore (measured at 97.95mm), specifically designed for Husqvarna TE449, TC446, and TXC449 models from 2011 to 2013. Made in Germany, this high-performance piston provides enhanced durability, heat management, and compression for demanding four-stroke engines.

Features

•


  Forged construction ensures exceptional strength and performance





•


  Elliptical design allows for uniform pressure distribution during heat expansion





•


  Efficient heat transfer from the combustion chamber to the cylinder walls





•


  Reduces localised stress and minimises risk of piston collapse





•


  Made in Germany




Specifications

•


  Bore: 98.01mm (Measured: 97.95mm)





•


  Display Volume: 449 cm³





•


  Stroke: 59.60mm





•


  Clearance: 0.06mm





•


  Compression Height: 25.00mm





•


  Wossner Compression Ratio: 13.00:1





•


  OEM Compression Ratio: 12.00:1





•


  Dome Volume: -0.50 cm³





•


  Part No.: 56-W920.B.WO (Wossner 8829DB)





•

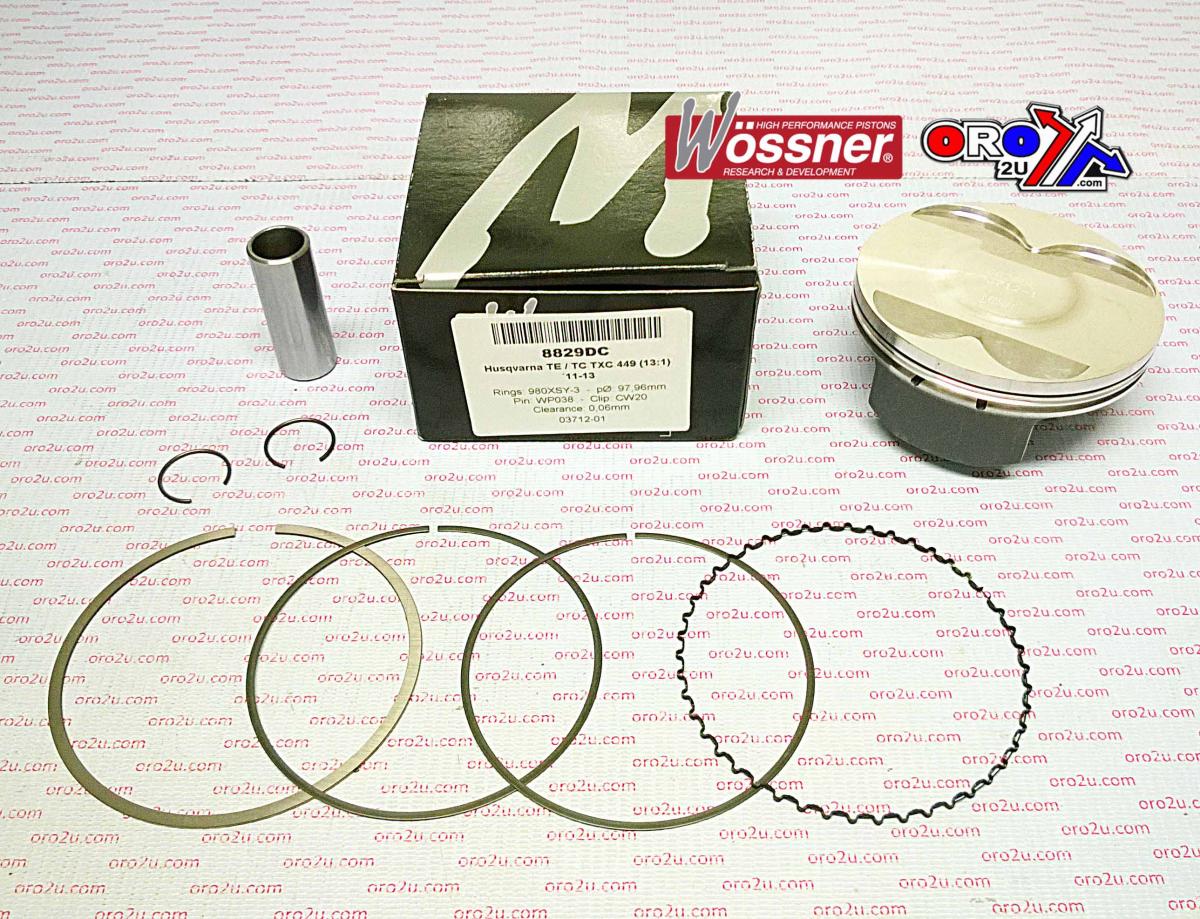

  Ring Set: 980XSY





•


  Lock P/N: CW20





•


  Pin P/N: WP038




Vehicle Fitments

•


  2011 Husqvarna TE449





•


  2012 Husqvarna TE449





•


  2013 Husqvarna TE449





•


  2011 Husqvarna TC446





•


  2012 Husqvarna TC446





•


  2013 Husqvarna TC446





•


  2011 Husqvarna TXC449





•


  2012 Husqvarna TXC449





•


  2013 Husqvarna TXC449
