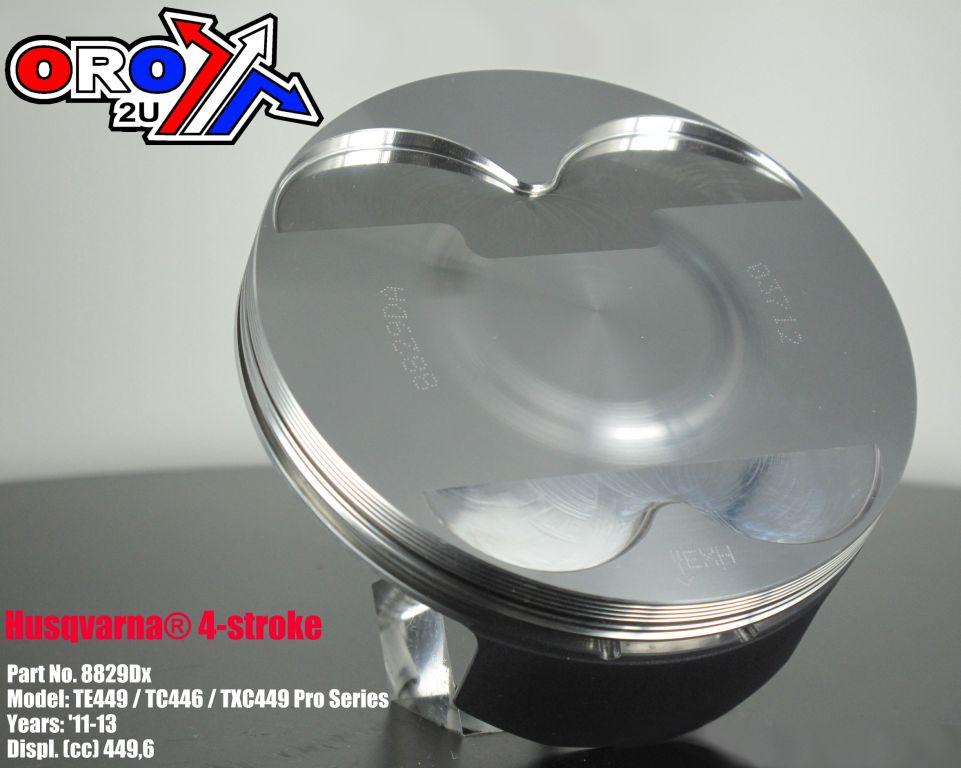

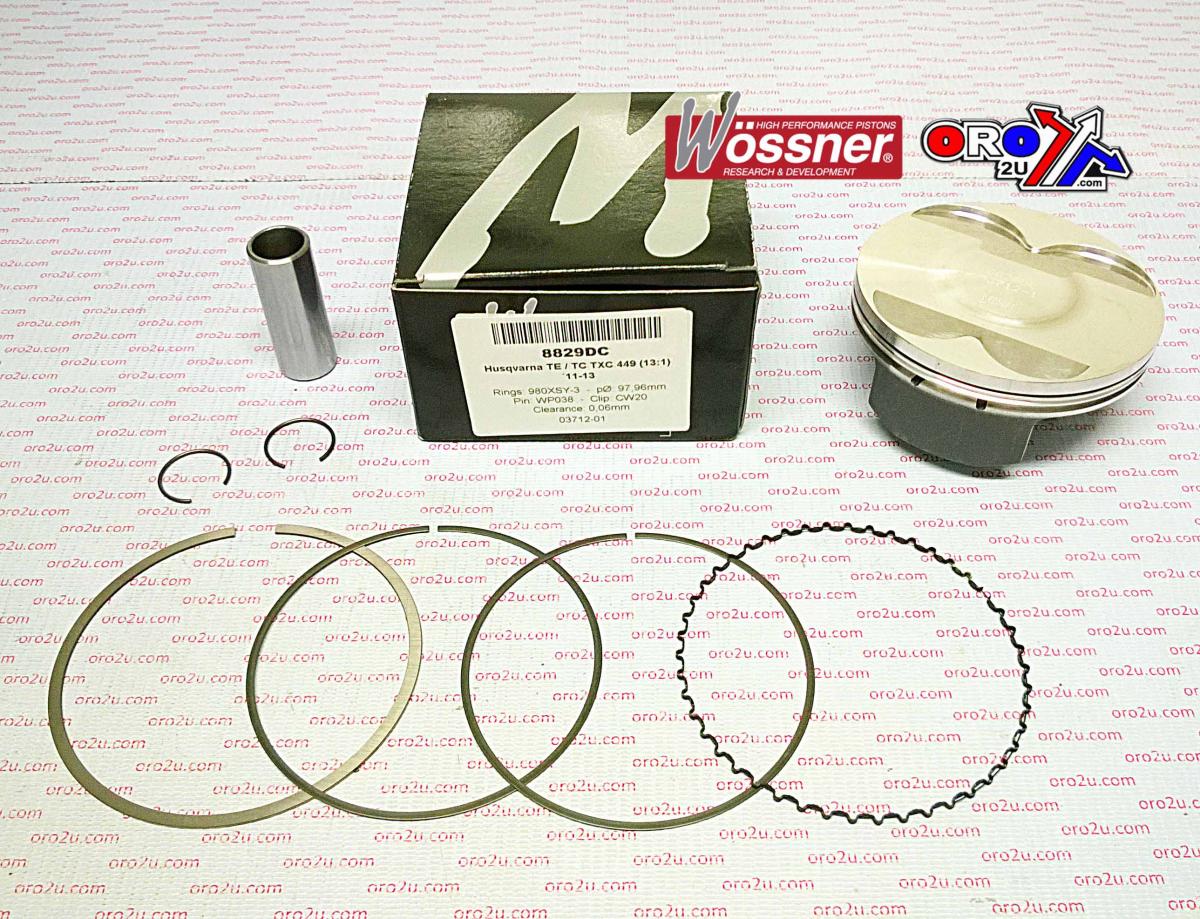

Wossner forged piston kit 8829DA is a standard-size Pro Series piston with a 98mm bore (measured at 97.94mm), engineered for Husqvarna TE449, TC446, and TXC449 models from 2011 to 2013. Built in Germany for high-performance applications, this piston features enhanced compression and thermal dynamics suited for competitive four-stroke engines.
Features
-
Forged construction provides superior mechanical strength and durability
-
Elliptical profile ensures even load distribution during thermal expansion
-
Optimised heat dissipation from the combustion chamber to cylinder walls
-
Reduces localised pressure, preventing piston collapse
-
Made in Germany
Specifications
-
Bore: 98mm (Measured: 97.94mm)
-
Display Volume: 449 cm³
-
Stroke: 59.60mm
-
Clearance: 0.06mm
-
Compression Height: 25.00mm
-
Wossner Compression Ratio: 13.00:1
-
OEM Compression Ratio: 12.00:1
-
Dome Volume: -0.50 cm³
-
Part No.: 56-W920.A.WO (Wossner 8829DA)
-
Ring Set: 980XSY
-
Lock P/N: CW20
-
Pin P/N: WP038
Cross-Reference OEM Part Numbers
-
1-002-442-681
Vehicle Fitments
-
2011 Husqvarna TE449
-
2012 Husqvarna TE449
-
2013 Husqvarna TE449
-
2011 Husqvarna TC446
-
2012 Husqvarna TC446
-
2013 Husqvarna TC446
-
2011 Husqvarna TXC449
-
2012 Husqvarna TXC449
-
2013 Husqvarna TXC449
