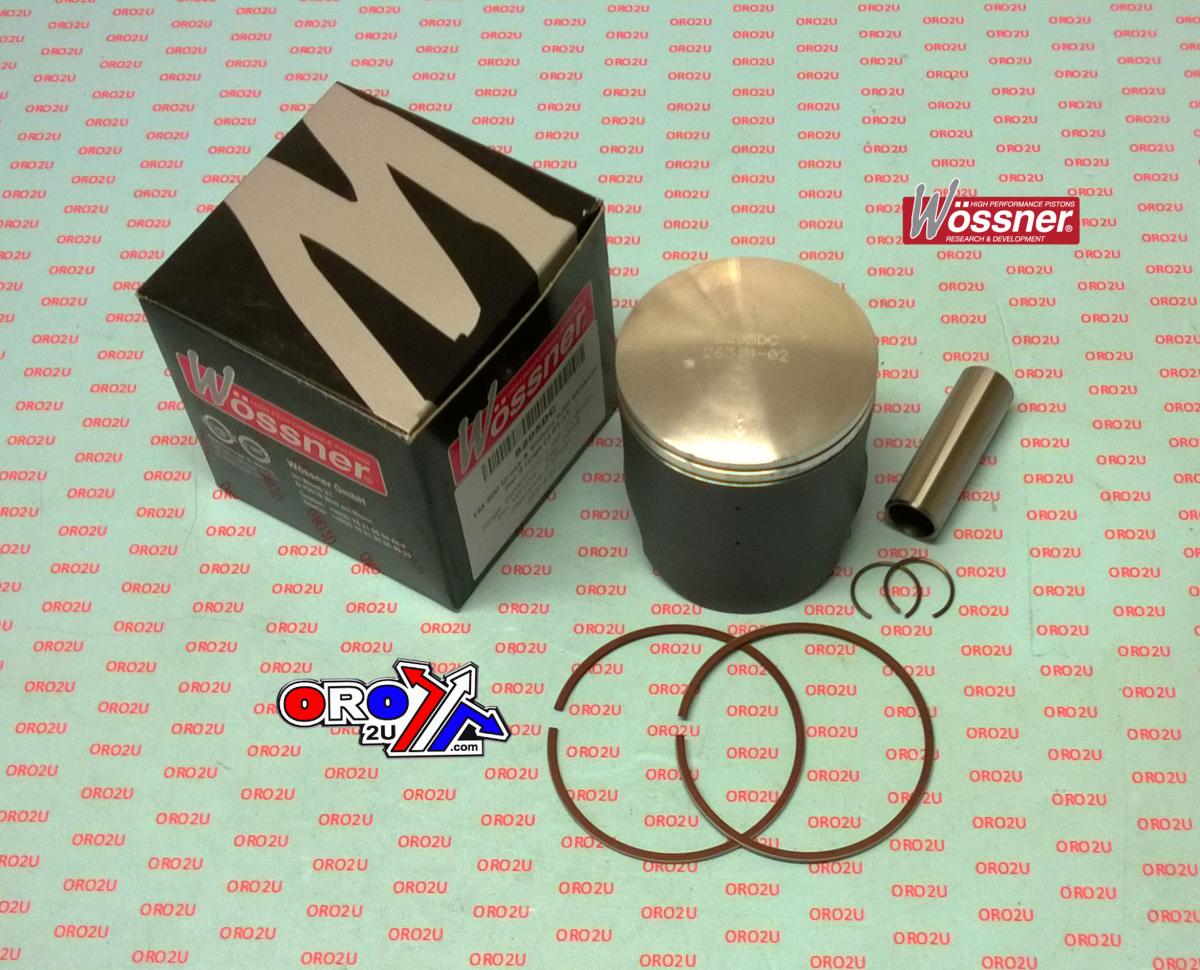

PISTON KIT TM 300 01-06 72.00, FORGED WOSSNER 8295DB
PISTON KIT TM 300 01-06 72.00, FORGED WOSSNER 8295DB
This Wossner piston kit features a 72.01mm bore with a measured diameter of 71.94mm, offering a +0.01mm oversize fitment. Designed for TM 300 MX and Enduro models from 2001 to 2006, this two-ring forged piston ensures optimal strength, heat management, and reliable performance for two-stroke engines.
Features
-
Forged construction for enhanced durability and strength
-
Engineered for effective heat transfer from combustion chamber to cylinder walls
-
Elliptical shape ensures a uniform bearing surface under heat expansion
-
Minimises localised pressure and evenly distributes thrust loads
-
Prevents piston collapse under stress
-
Manufactured in Germany
Specifications
-
Bore: 72.01mm
-
Diameter: 71.94mm
-
Stroke: 73.70 mm
-
Clearance: 0.07 mm
-
Compression Ratio (Wossner): 2-stroke
-
Compression Ratio (OEM): 2-stroke
-
Compression Height: 38.00 mm
-
Ring Type: Two Ring
-
Clips P/N: CW18
-
Pin P/N: WP033
-
Ring Set P/N: RST7200 x 2
Cross-Reference OEM Part Numbers
-
Part No. 56-W9920.00B.WO
-
Wossner Piston 8295DB
Vehicle Fitments
-
TM 300 MX 2001–2006
-
TM 300 Enduro 2001–2006
