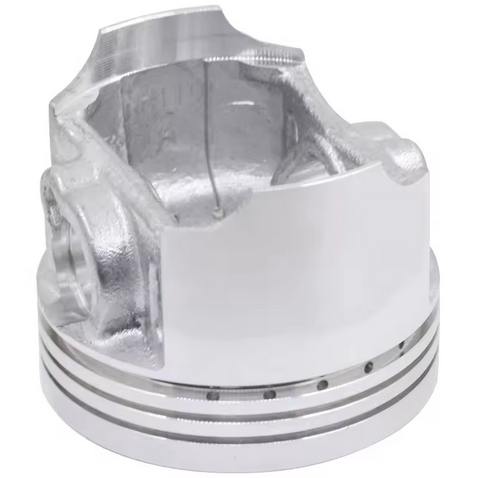

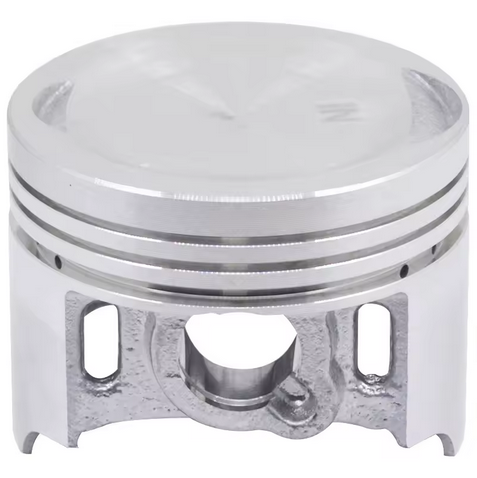

PISTON KIT 13-21 HONDA CRF DREAM NBC CUB 110 F FD E G H EX5 SCRAMBLER STD 50.00mm 13105-KWW-740

This standard 50.00 mm piston kit is a complete replacement assembly for compatible Honda 110 cc engines, intended for engine rebuild and piston replacement applications. It is manufactured to match original-equipment dimensions and includes the piston, piston rings, gudgeon pin and retaining clips required for installation.

Features

• Direct replacement for the original piston assembly


• Supplied as a complete kit with piston, rings, pin and clips


• Constructed from high-tech materials for reliability and consistent operation


• Manufactured to precise standards for correct engine operation


• Designed to meet or exceed OEM quality requirements

Specifications

• Piston diameter: 50.00 mm


• Piston height: 38 mm


• Pin diameter: 13 mm


• Piston ring sizes: 1 mm x 1 mm x 2 mm


• Standard-bore configuration


• Suitable for 109 cc engine applications

Cross-Reference OEM Part Numbers

• 13101-KWW-740


• 13105-KWW-740


• 13111-KVR-C00


• 13011-KWW-740


• 13115-KVR-C00


• NH110


• SDH110

Vehicle Fitments

• Honda CRF110F (2013–2021)


• Honda CRF110FD/E/F/G/H Scrambler (2013–2017)


• Honda Dream 110 EX5


• Honda NBC110 / NBC 110


• Honda Cub 110
