PISTON KIT SET/3 KAW. 500 KH, WOSSNER K8247DA-3 60.00mm
PISTON KIT SET/3 KAW. 500 KH, WOSSNER K8247DA-3 60.00mm

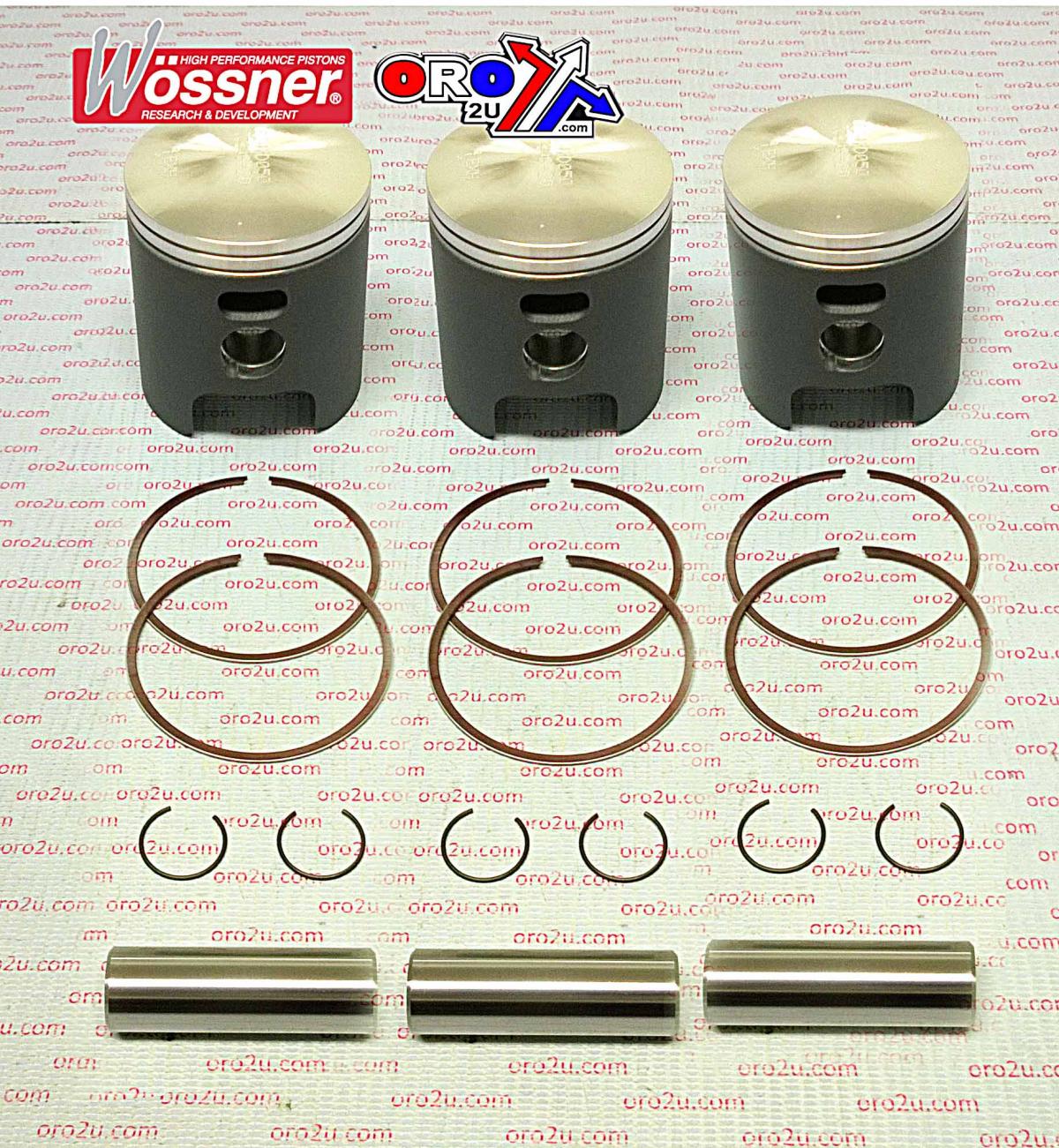

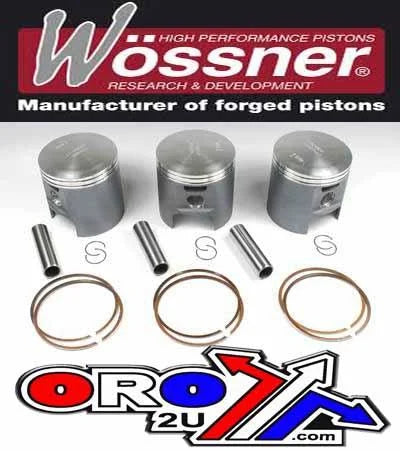

The Wossner K8247DA-3 piston kit is a standard-size forged piston set designed for Kawasaki triple-cylinder 500cc models produced between 1969 and 1976. With a 60.00mm bore and precision-engineered construction, this kit ensures reliable performance and effective heat management in two-stroke engine configurations. Manufactured in Germany, the kit includes three pistons along with essential components for installation.
Features
-
Forged high-performance pistons with skirt coating
-
Elliptical design ensures uniform thermal expansion and load distribution
-
Optimised combustion chamber heat transfer to cylinder walls
-
Designed for two-stroke engines
-
Includes piston pins, clips, and rings
Specifications
-
Bore size: 60.00mm (Standard)
-
Measured bore: 59.93mm
-
Display displacement: 498 cm³
-
Stroke: 58.80mm
-
Clearance: 0.07mm
-
Compression height: 31.90mm
-
Dome volume: Not specified
-
Theoretical weight: 177g
-
Wossner compression ratio: 2-stroke
-
OEM compression ratio: 2-stroke
-
Quantity: 3 pistons per kit
-
Made in Germany
Cross-Reference OEM Part Numbers
-
Part No. 56-W9867.00A.WO
-
Clip: CW16
-
Piston Pin: WP041
-
Ring Set: RSB6100 x 2 per piston
Vehicle Fitments
-
Kawasaki 500S 1969–1976
-
Kawasaki 500 H1 1969–1976
-
Kawasaki 500 KH 1969–1976
-
Triple Cylinder Models
