PISTON KIT KTM350 EXC-F 88mm B, WOSSNER 8941DB COMP 12.5:1
PISTON KIT KTM350 EXC-F 88mm B, WOSSNER 8941DB COMP 12.5:1
The Wossner 8941DB piston kit is a forged performance upgrade featuring a 88.00mm standard bore with a measured diameter of 87.96mm, offering a +0.01mm sizing option. It is precision-engineered for KTM and Husqvarna 350cc models and provides exceptional strength, uniform expansion, and efficient thermal conductivity. Made in Germany, the piston design enhances durability under thermal load conditions.
Features
-
Forged construction for increased strength and reliability
-
Engineered for effective combustion heat transfer to cylinder walls
-
Elliptical shape ensures uniform bearing surface during thermal expansion
-
Minimises localised stress and prevents piston collapse
-

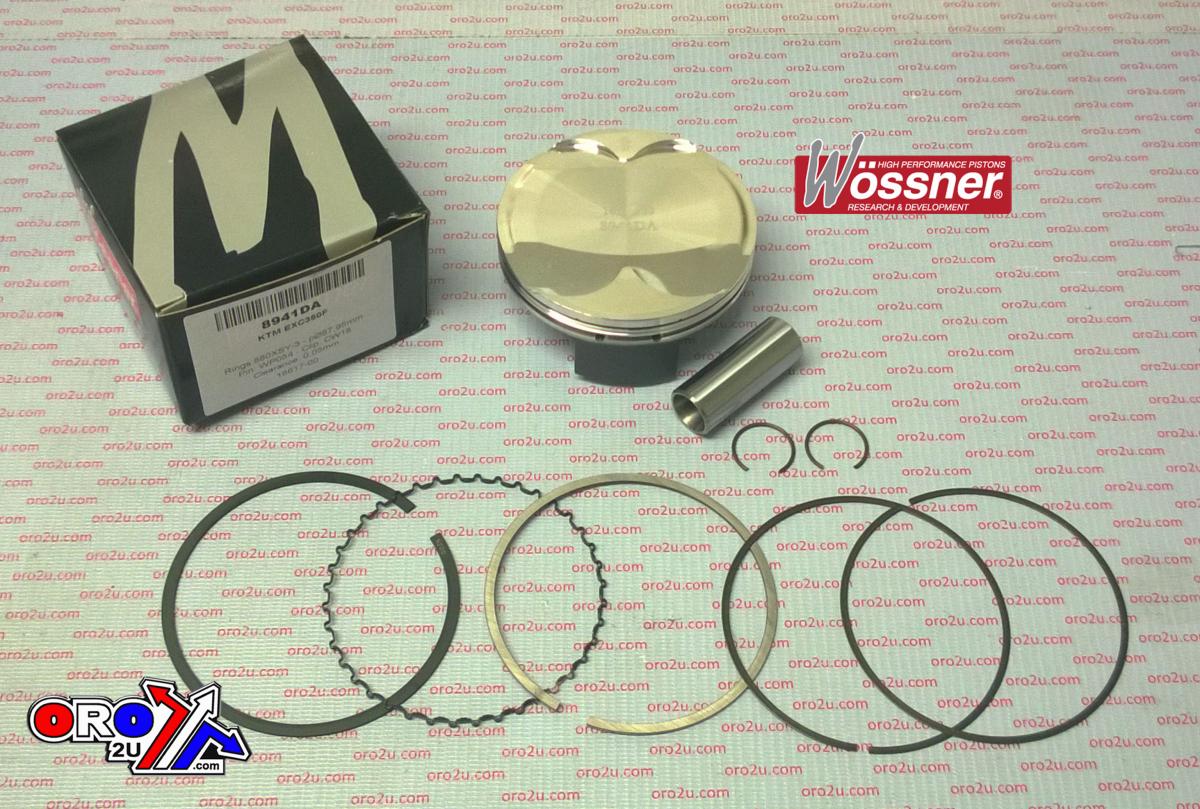

Includes piston, rings (880XSY), pin (WP054), and circlips (CW18)
Specifications
-
Bore: 88.00mm (STD)
-
Diameter: 87.96mm
-
Sizing: B (+0.01mm)
-
Compression Ratio: 12.5:1
-
Wossner Part Number: 8941DB
-
Kit Part Number: 56-W9950.B.WO
-
Made in Germany
Cross-Reference OEM Part Numbers
-
RINGS: 880XSY
-
PIN: WP054
-
CLIPS: CW18
Vehicle Fitments
-
KTM 350 EXC-F 2017 - 2018
-
Husqvarna FE350 2017 - 2018
