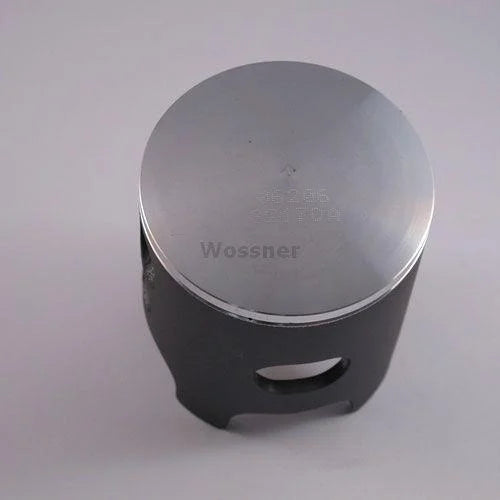

PISTON KIT 99-18 YZ250 1-RING, WOSSNER 8217DB 66.40

This Wossner piston kit with a 66.41mm bore (+0.01mm oversize, actual size 66.36mm) is specifically designed for Yamaha YZ250 models from 1999 to 2018. Featuring a single-ring forged design, it delivers reduced friction, reliable performance, and durability under the demands of two-stroke operation.

Features

•


  Forged single-ring piston enhances response and reduces friction





•


  Engineered for optimal heat transfer from the combustion chamber to cylinder walls





•


  Elliptical design distributes load evenly and prevents piston collapse during thermal expansion





•


  Manufactured in Germany for high precision and reliability




Specifications

•


  Bore size: 66.41 mm





•


  Actual piston size: 66.36 mm





•


  Display (cm³): 249





•


  Stroke (mm): 68.00





•


  Clearance (mm): 0.05





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height (mm): 38.00




Cross-Reference OEM Part Numbers

•


  OLD No. 56-W056.WO.B




Vehicle Fitments

•


  1999–2018 Yamaha YZ250




Included Components

•


  Piston: Wossner PN# 8217DB (Single ring)





•


  Gasket: PN# D2041





•


  Lock: PN# CW18





•


  Pin: PN# WP033





•


  Ring Set: PN# RSB6640





•


  Rod: PN# P2028
