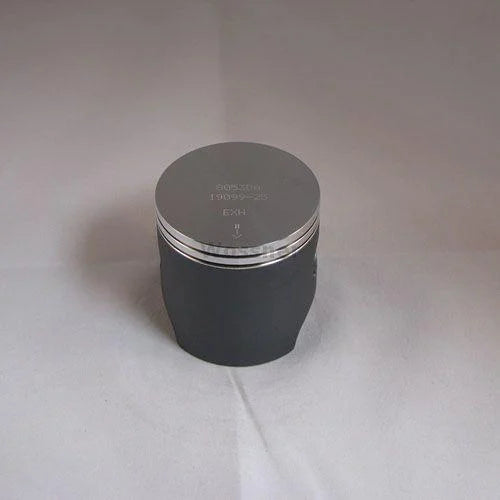

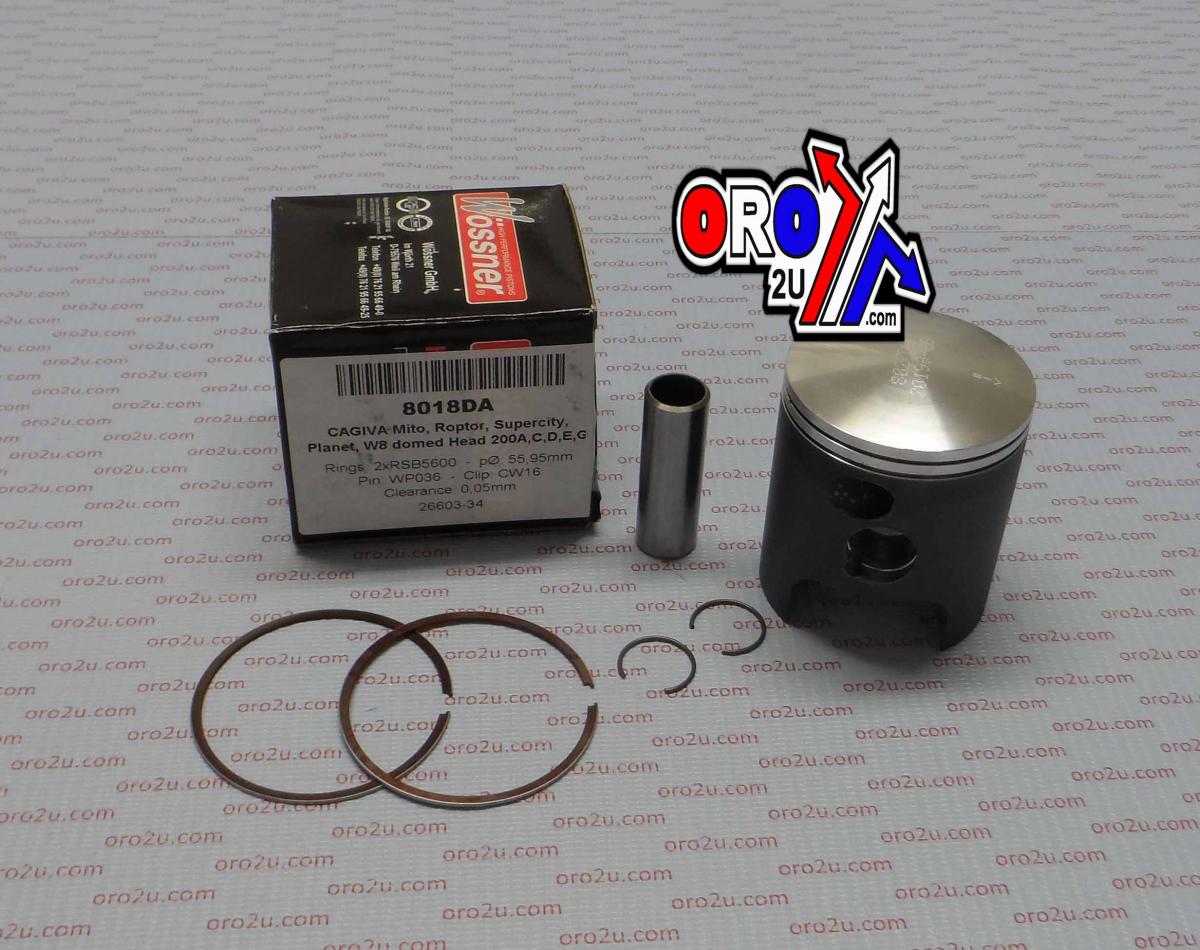

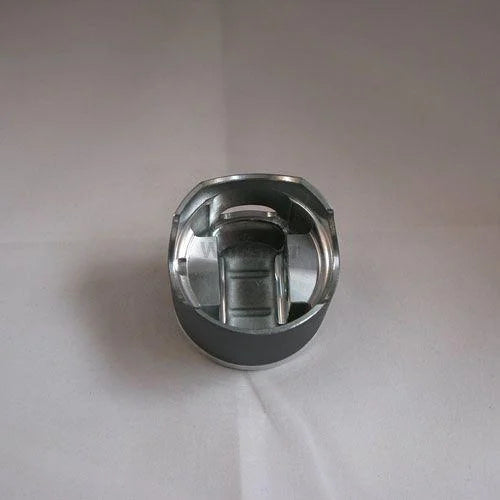

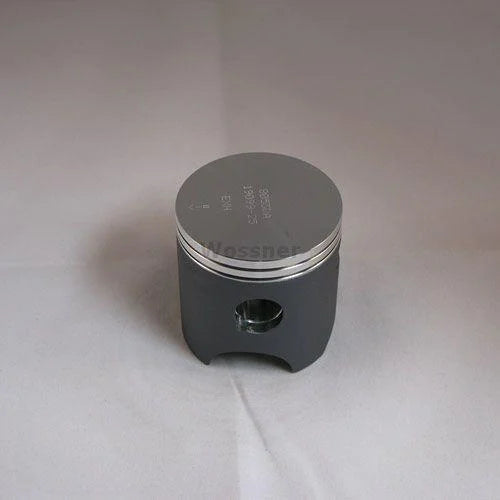

PISTON KIT 99-12 125 MITO 56, CAGIVA 8018DA WOSSNER

This Wossner forged piston kit features a 56mm bore size (55.95mm actual) and is designed as a standard replacement for select Cagiva 125 models. Precision-engineered in Germany, the piston provides optimal heat transfer and superior structural integrity. Its elliptical design ensures even pressure distribution during operation, reducing the risk of piston collapse.

Features

•


  Forged piston construction for high durability and strength





•


  Elliptical design for uniform bearing surface under heat expansion





•


  Efficient heat transfer from combustion chamber to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 56mm (actual 55.95mm)





•


  Displacement: 124 cm³





•


  Stroke: 50.60 mm





•


  Clearance: 0.05 mm





•


  Compression Ratio (Wossner): 2-stroke





•


  Compression Ratio (OEM): 2-stroke





•


  Dome Volume: Domed





•


  Compression Height: 25.00 mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP036





•


  Ring Set Part Number: RSB5600




Cross-Reference OEM Part Numbers

•


  56-W941.A




Vehicle Fitments

•


  Cagiva 125 Mito (2000–2012)





•


  Cagiva 125 Roptor (2000–2012)





•


  Cagiva 125 Supercity (2000–2012)





•


  Cagiva 125 Planet (2000–2012)





•


  Cagiva 125 W8 / Head 200A,C,D,E,G (2000–2012)
