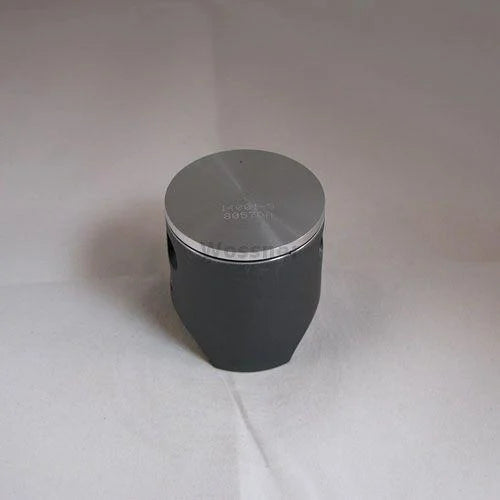

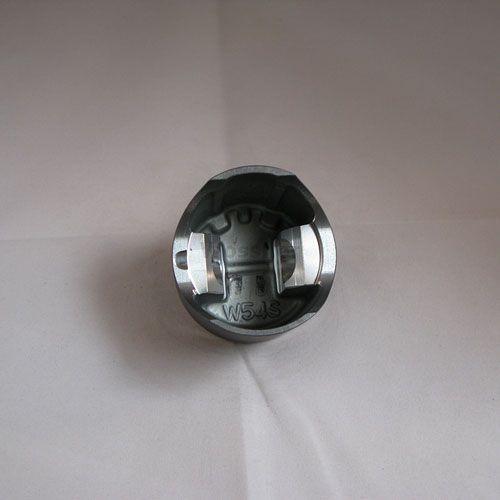

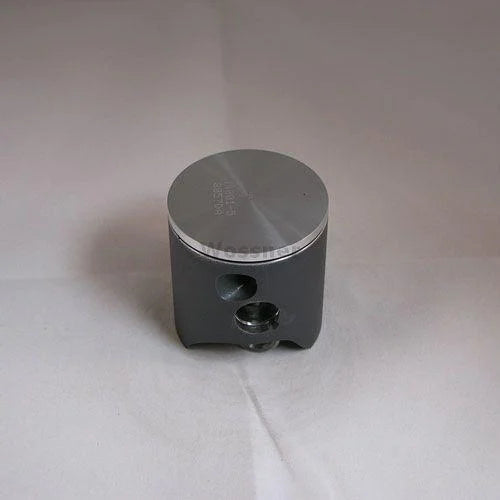

PISTON KIT 99-00 KX125 56.00, WOSSNER 8057D200 KAWASAKI

This Wossner piston kit with a 56.00mm bore (+2.00mm oversize, actual size 55.95mm) is designed for Kawasaki KX125 models from 1999 to 2000. German-engineered for performance and reliability, the forged piston is built to withstand the stresses of high-output two-stroke engines.

Features

•


  Forged piston construction for maximum durability and performance





•


  Advanced design promotes efficient heat transfer to the cylinder wall





•


  Elliptical profile minimises pressure points and resists piston collapse during heat expansion





•


  Manufactured in Germany for precision and reliability




Specifications

•


  Bore size: 56.00 mm





•


  Actual piston size: 55.95 mm





•


  Display (cm³): 125





•


  Stroke (mm): 54.50





•


  Clearance (mm): 0.05





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height (mm): 29.30




Vehicle Fitments

•


  1999 Kawasaki KX125





•


  2000 Kawasaki KX125

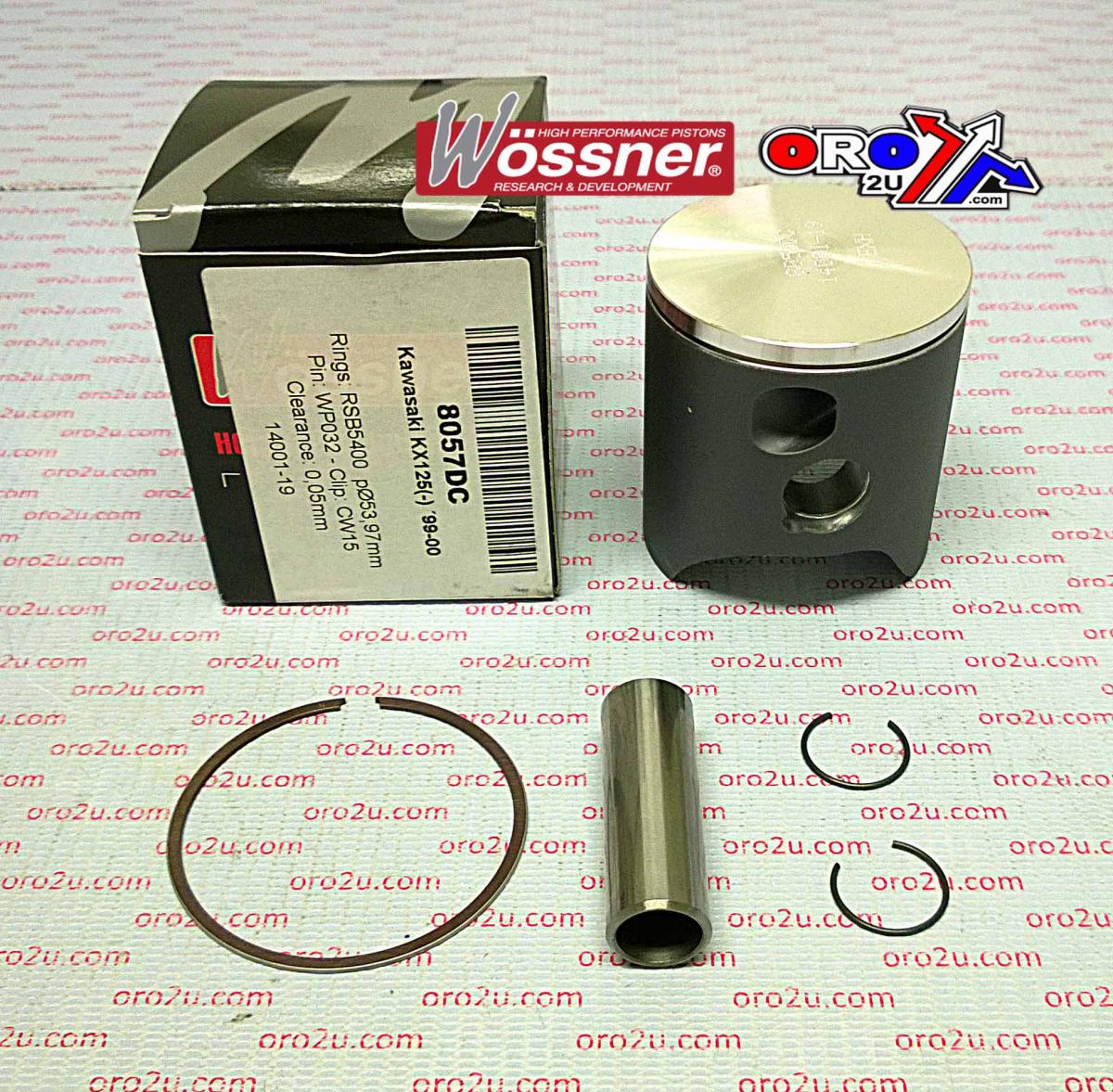

Included Components

•


  Piston: Wossner PN# 8057D200





•


  Lock: PN# CW15





•


  Pin: PN# WP032





•


  Ring Set: PN# RSB5600





•


  Rod: PN# P2034
