PISTON KIT 81-19 PW50 40.50, WOSSNER 8267D050 YAMAHA
PISTON KIT 81-19 PW50 40.50, WOSSNER 8267D050 YAMAHA

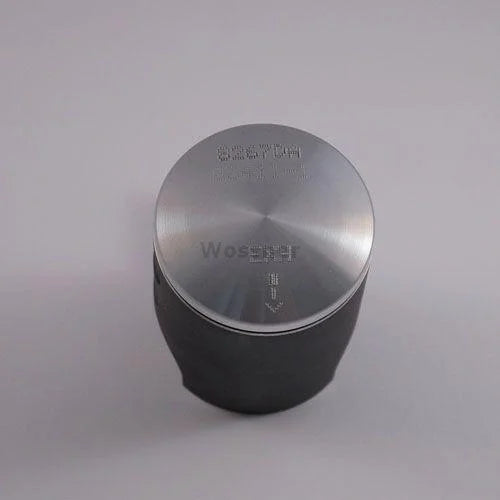

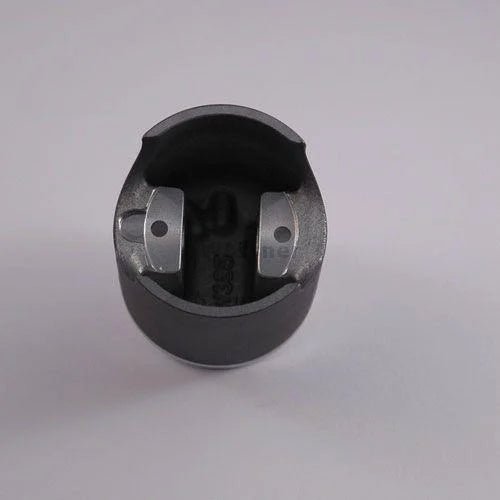

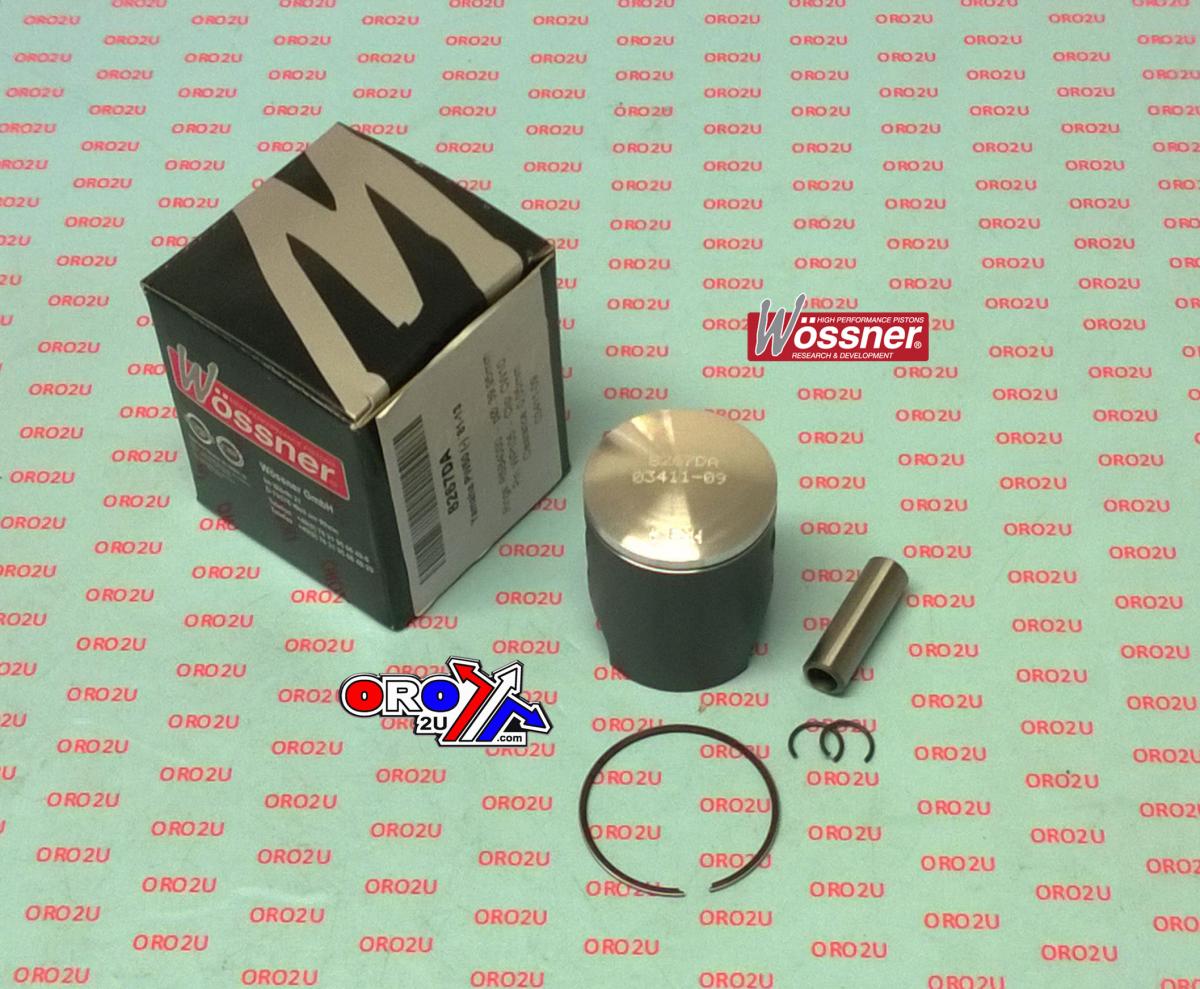

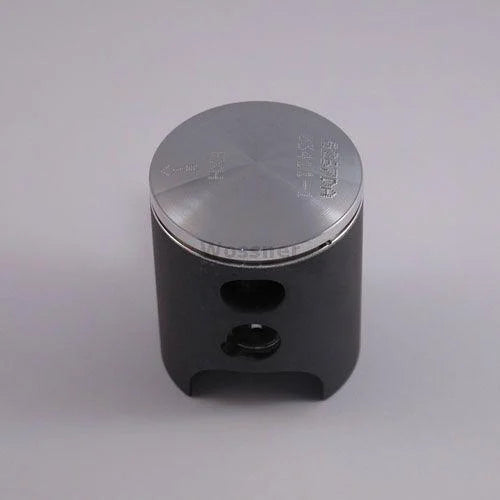

This Wossner forged piston kit is a +0.50mm oversize replacement for Yamaha PW50 models from 1981 to 1997. Engineered with precision and manufactured in Germany, it provides enhanced strength and consistent performance for two-stroke engine applications requiring a slightly larger bore size.
Features
-
Forged piston construction for superior strength and durability
-
Elliptical design ensures a consistent bearing surface during heat expansion
-
Promotes efficient heat dissipation to cylinder walls
-
Prevents localised stress and piston collapse
-
Manufactured in Germany
Specifications
-
Bore Size: 40.50mm
-
Actual Piston Size: 40.45mm
-
Stroke: 39.20mm
-
Piston Clearance: 0.05mm
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
-
Compression Height: 24.90mm
-
Lock Part Number: CW10
-
Pin Part Number: WP105
-
Ring Set Part Number: RSB4050
Cross-Reference OEM Part Numbers
-
Part No: 8267D050
Vehicle Fitments
-
Yamaha PW50 (1981–1997)
