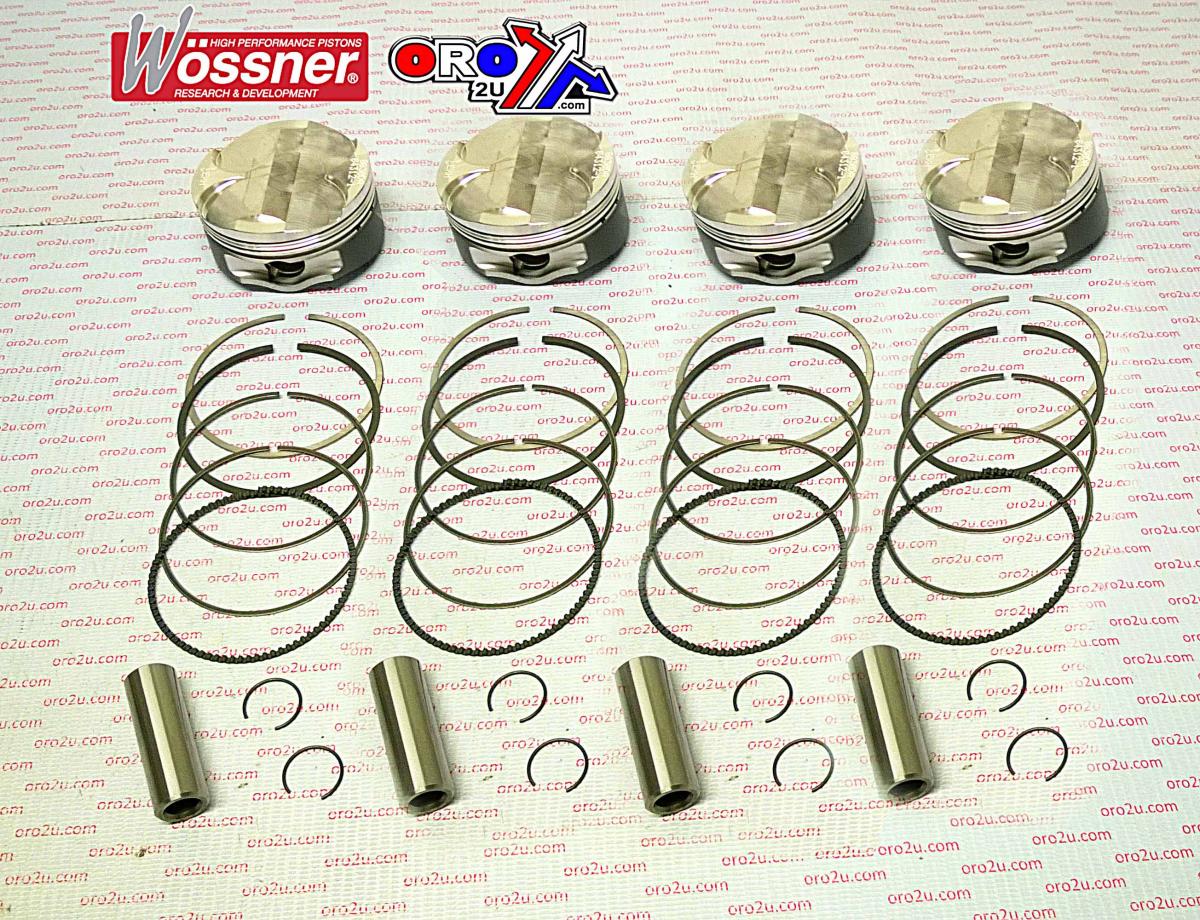

PISTON KIT/4 YAM YZF R6 68.00, WOSSNER K8830D100-4
PISTON KIT/4 YAM YZF R6 68.00, WOSSNER K8830D100-4
The Wossner K8830D100-4 piston kit is a +1.00mm oversize forged piston set engineered for Yamaha YZF R6 models from 2006 to 2011. Featuring a 68.00mm bore and maintaining a 13.0:1 compression ratio, this high-performance kit is built for durability and efficient combustion in high-revving four-stroke engines. Manufactured in Germany, the set includes four pistons and all required installation components.
Features
-
Forged high-performance pistons with skirt coating
-
Elliptical design ensures balanced load distribution and controlled thermal expansion
-
Optimised for effective combustion chamber heat transfer to cylinder walls
-
Designed for high-compression four-stroke engines
-
Includes piston pins, clips, and rings
Specifications
-
Bore size: 68.00mm (+1.00mm oversize)
-
Measured bore: 67.94mm
-
Display displacement: 599 / 617 / 635 cm³
-
Stroke: 42.50mm
-
Clearance: 0.06mm
-
Compression ratio: 13.0:1
-
Dome volume: –2.00 cm³
-
Compression height: 21.20mm
-
Quantity: 4 pistons per kit
-
Made in Germany
Cross-Reference OEM Part Numbers
-
Part No. 56-W9874.100.WO
-
Clip: CW15
-
Piston Pin: WP011
-
Ring Set: 680XKS
Vehicle Fitments
-
Yamaha YZF R6 2006–2011
