PISTON KIT/4 SUZ GSXR1000 TURB, WOSSNER K8747D160-4 75.00mm

The Wossner K8747D160-4 piston kit is a +1.60mm oversize forged piston set designed for Suzuki GSXR1000 Turbo models from 2005 to 2008. Featuring a 75.00mm bore and a reduced compression ratio of 10.0:1, these pistons are optimised for high-boost turbocharged performance. Manufactured in Germany, the kit includes four pistons and all required installation components.

Features

•


  Forged high-performance pistons with skirt coating





•


  Elliptical design ensures even thermal expansion and load distribution





•


  Designed for efficient heat transfer to cylinder walls





•


  Lower compression ratio ideal for turbocharged setups





•

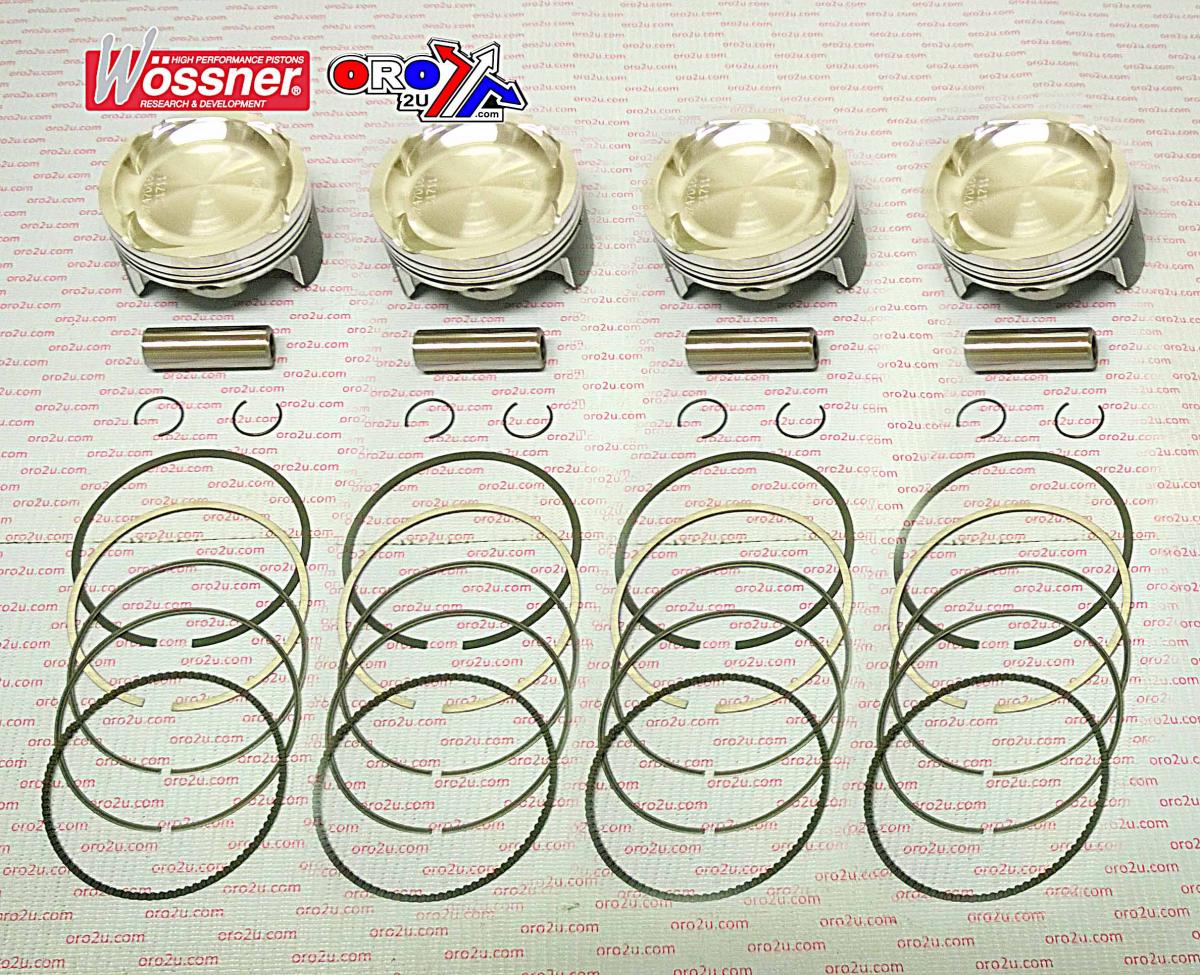

  Includes piston pins, clips, and rings




Specifications

•


  Bore size: 75.00mm (+1.60mm oversize)





•


  Measured bore: 74.96mm





•


  Display displacement: 998 / 1042 / 1070 cm³





•


  Stroke: 59.00mm





•


  Clearance: 0.04mm





•


  Compression ratio: 10.0:1





•


  OEM compression ratio: 12.5:1





•


  Dome volume: –12.50 cm³





•


  Compression height: 22.50mm





•


  Quantity: 4 pistons per kit





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9871.160.WO





•


  Clip: CW15





•


  Piston Pin: WP011





•


  Ring Set: RIK75.00L




Vehicle Fitments

•


  Suzuki GSXR1000 Turbo 2005–2008
