PISTON KIT 2010 KX250F 77mm B, WOSSNER 8777DB KAWASAKI HC
PISTON KIT 2010 KX250F 77mm B, WOSSNER 8777DB KAWASAKI HC

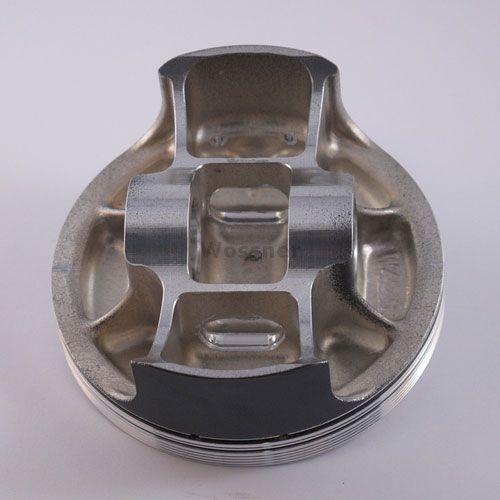

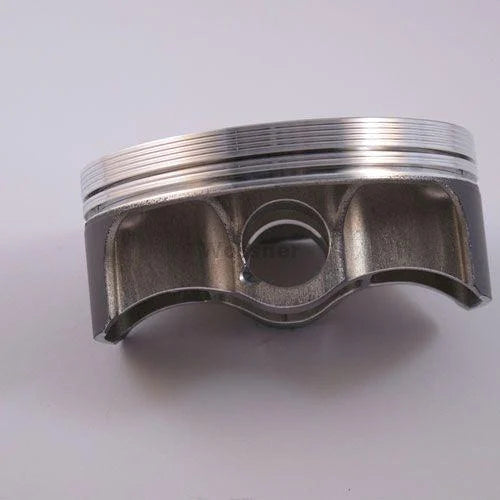

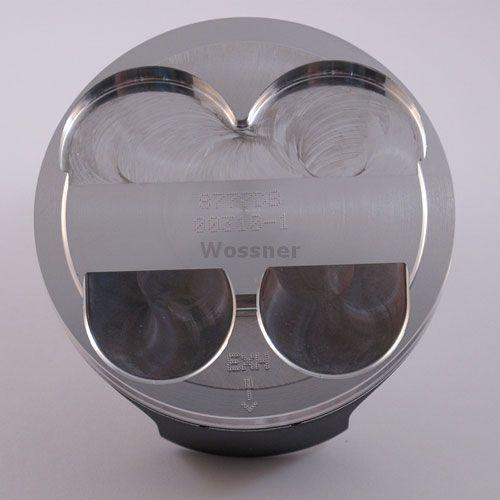

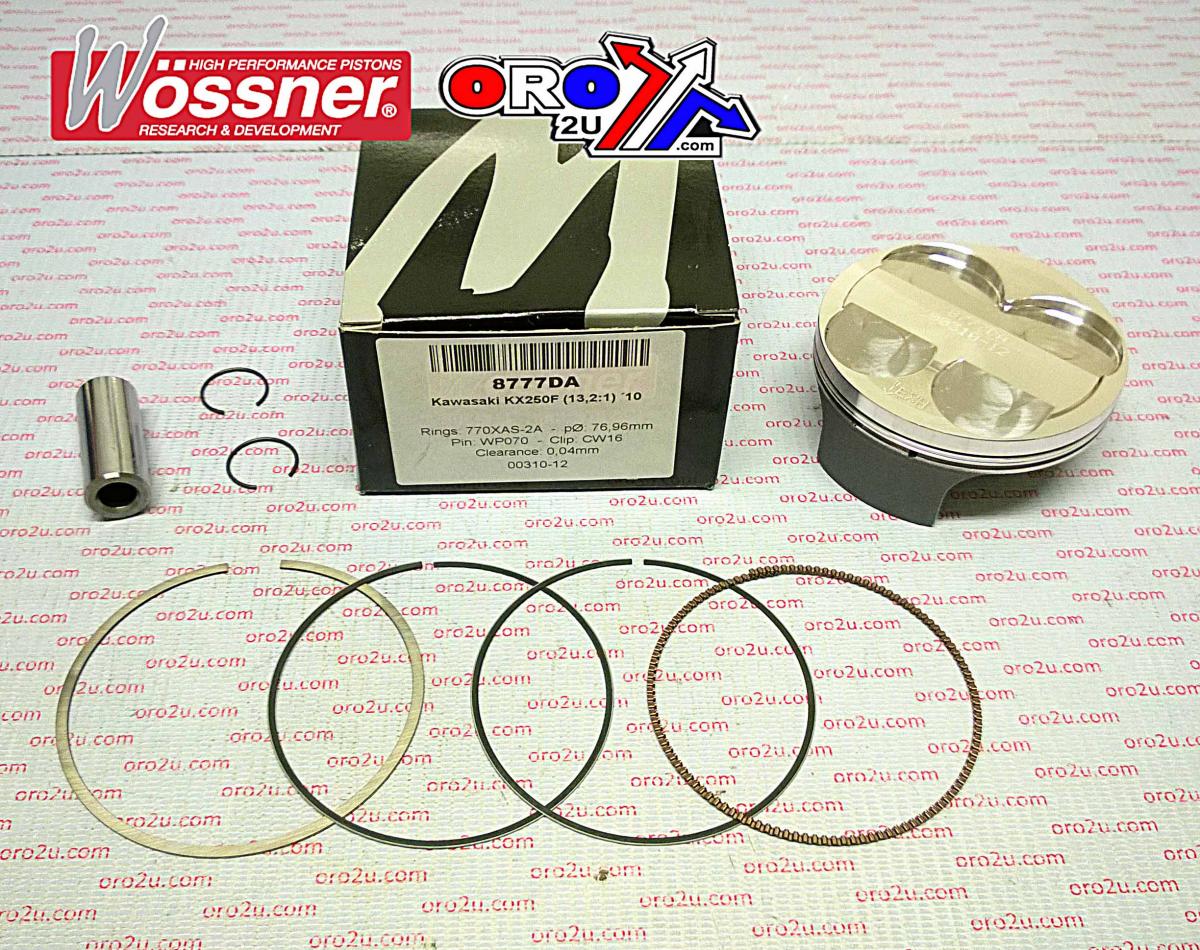

This Wossner forged piston kit features a 77.01mm bore size (76.97mm actual), offering a +0.01mm oversize fitment for the 2010 Kawasaki KX250F. Precision-manufactured in Germany, the piston includes a two-ring design and an elliptical shape that distributes thrust loads evenly, minimising stress and wear during engine operation. It maintains OEM compression characteristics for reliable performance.
Features
-
Forged piston with two-ring configuration for strength and durability
-
Elliptical design promotes even load distribution during thermal expansion
-
Engineered for efficient combustion heat transfer to cylinder walls
-
Manufactured in Germany
Specifications
-
Bore Size: 77.01mm (actual 76.97mm)
-
Displacement: 250 cm³
-
Stroke: 53.60 mm
-
Clearance: 0.04 mm
-
Compression Ratio (Wossner): OEM
-
Compression Ratio (OEM): 13.20:1
-
Dome Volume: -2.50 cm³
-
Compression Height: 19.60 mm
-
Lock Part Number: CW16
-
Pin Part Number: WP070
-
Ring Set Part Number: 770XAS-2
Cross-Reference OEM Part Numbers
-
OEM: 13001-0115
-
Wiseco: 40009M
-
Vertex: 23566
-
ProX: 01.4340
Vehicle Fitments
-
2010 Kawasaki KX250F
