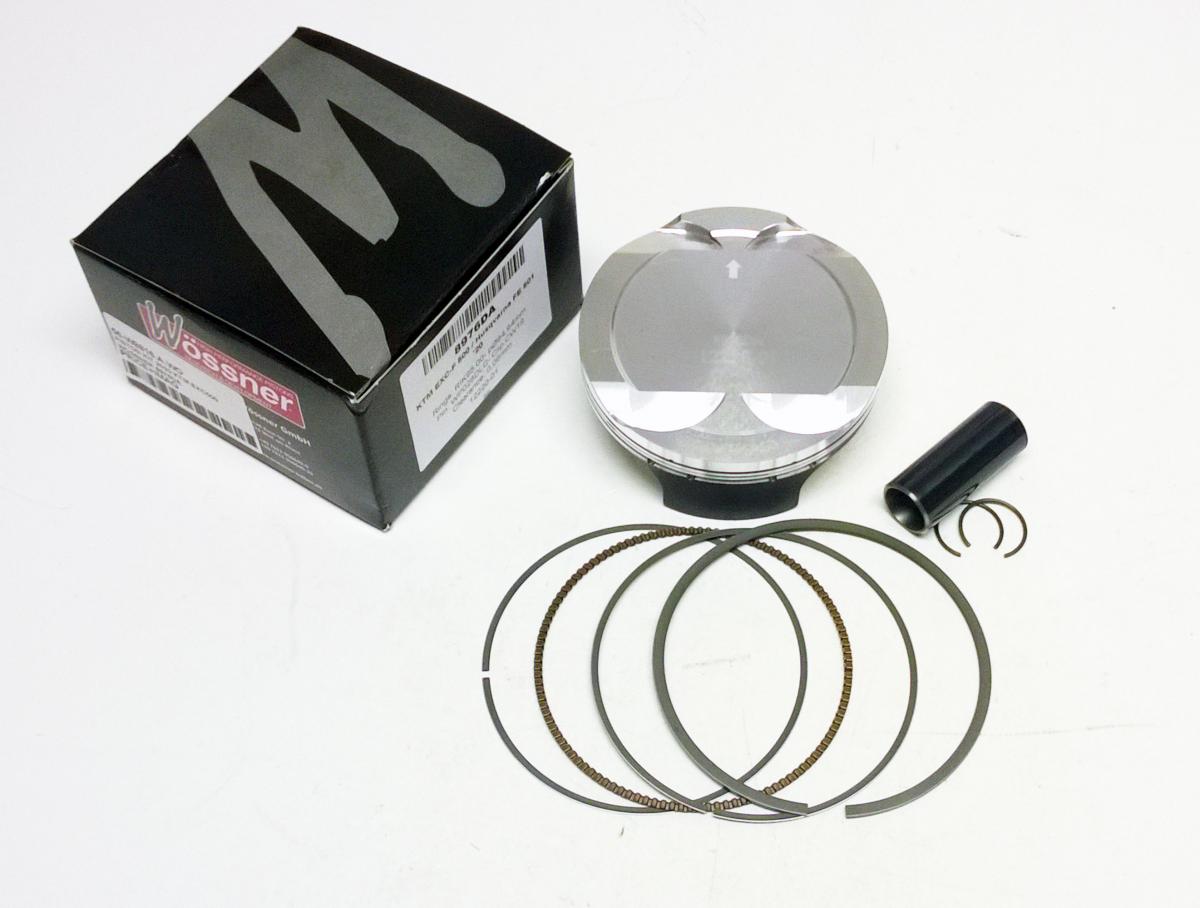

PISTON KIT 20-23 KTM EXC500, WOSSNER 8976DB

The Wossner Forged Piston Kit (8976DB) with a 95mm bore (actual size 94.95mm) is designed for KTM, Husqvarna, and GASGAS 500cc models from 2020 to 2023. This high-performance forged piston, made in Germany, features an elliptical profile for even load distribution and efficient heat transfer. Note that it is not compatible with 2024–2025 models; refer to Wossner 4100 for those applications.

Features

•


  Forged construction for maximum strength and reliability





•


  Designed for effective heat transfer from combustion chamber to cylinder walls





•


  Elliptical skirt profile ensures uniform load distribution and prevents piston collapse





•


  Manufactured in Germany




Specifications

•


  Piston Size: 95mm (STD)





•


  Actual Size: 94.95mm





•


  Dome Volume: -5.69 cm³





•


  Compression Height: 22.80mm





•


  Theoretical Weight: 227.80g





•


  Kit Part Number: 56-W628.B.WO





•


  Wossner Part Number: 8976DB





•


  Ring Set: RIK95.00





•


  Pin: WP028DLC





•


  Circlips: CW16





•


  Piston Type: Forged




Vehicle Fitments

•


  KTM EXC500 (2020–2023)





•


  Husqvarna FE501 (2020–2023)





•


  GASGAS ECF 500 (2020–2023)




Note

•


  Will not fit 2024/2025 models. See Wossner 4100 for updated compatibility.
