PISTON KIT-2 BMW R1200GS,S,ST, WOSSNER K8710DA-2, 101mm

This Wossner piston kit set includes two forged pistons with a standard 101.00mm bore and a measured diameter of 100.96mm. Specifically designed for BMW R1200 series models from 2006 to 2009, the Pro Series pistons are engineered for high-performance applications and long rod configurations, offering enhanced compression and thermal efficiency.

Features

•


  Forged piston construction for superior strength and endurance





•


  Engineered for optimal combustion chamber heat transfer to cylinder walls





•


  Elliptical profile ensures a consistent bearing surface under thermal expansion





•


  Distributes thrust loads evenly to reduce stress and prevent piston collapse





•


  Manufactured in Germany





•


  Designed for long rod configuration




Specifications

•


  Bore: 101.00mm





•


  Diameter: 100.96mm





•


  Engine Displacement: 1170 cm³





•


  Stroke: 73.00 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): 12.70:1





•


  Compression Ratio (OEM): 12.00:1





•


  Dome Volume: +4.40 cm³





•


  Compression Height: 27.90 mm





•

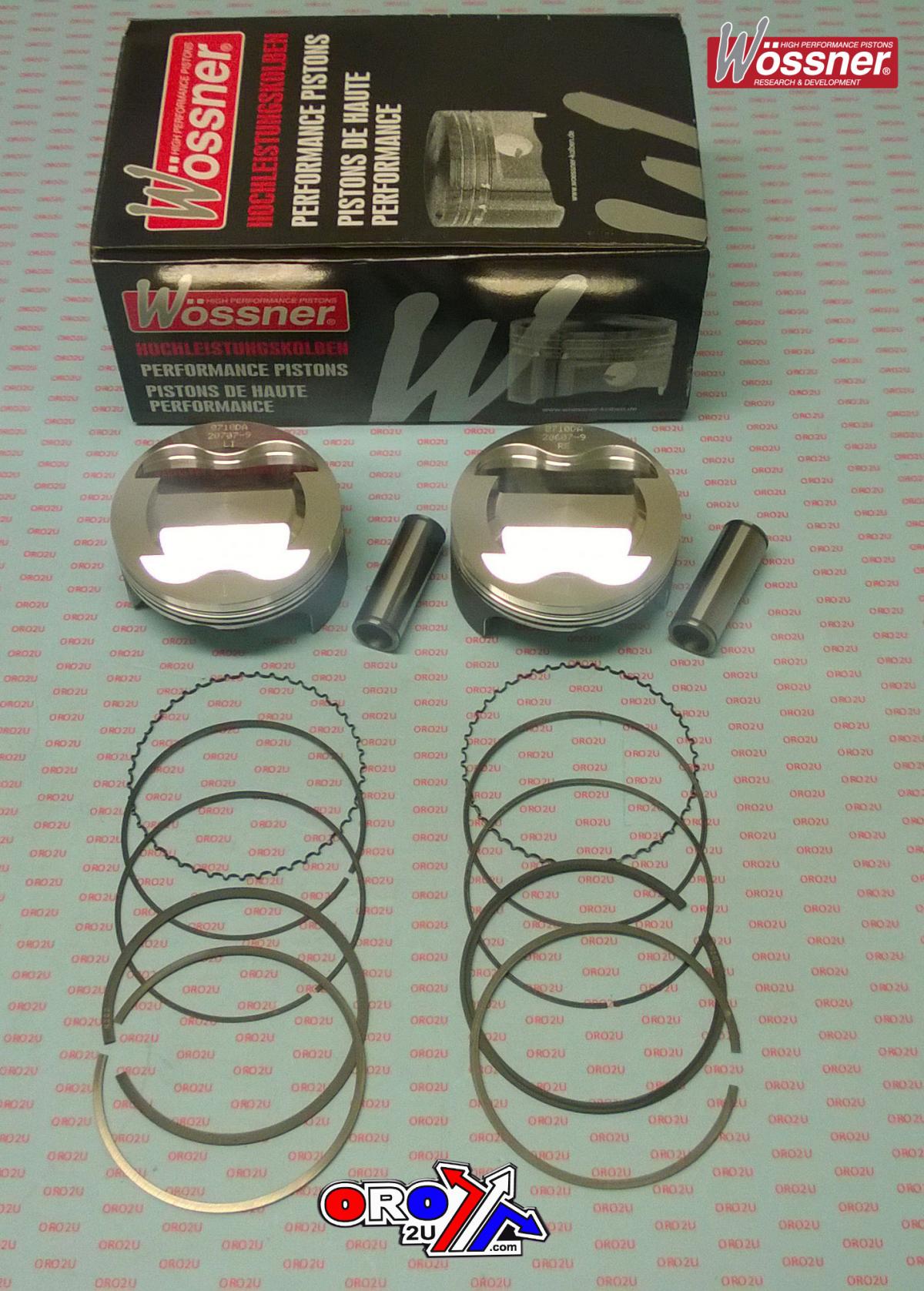

  Kit Includes: 2 pistons, pins, rings, and clips





•


  Clips P/N: C22X1.6





•


  Pin P/N: WP009





•


  Ring Set P/N: 1010XSY




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9935.000.WO





•


  Wossner Piston K8710DA-2




Vehicle Fitments

•


  BMW R1200GS 2006–2009





•


  BMW R1200S 2006–2009





•


  BMW R1200ST 2006–2009





•


  BMW R1200RT 2006–2009





•


  BMW R1200R 2006–2009
