PISTON KIT 14-15 CRF250 76.80, 8912DC WOSSNER HONDA
PISTON KIT 14-15 CRF250 76.80, 8912DC WOSSNER HONDA

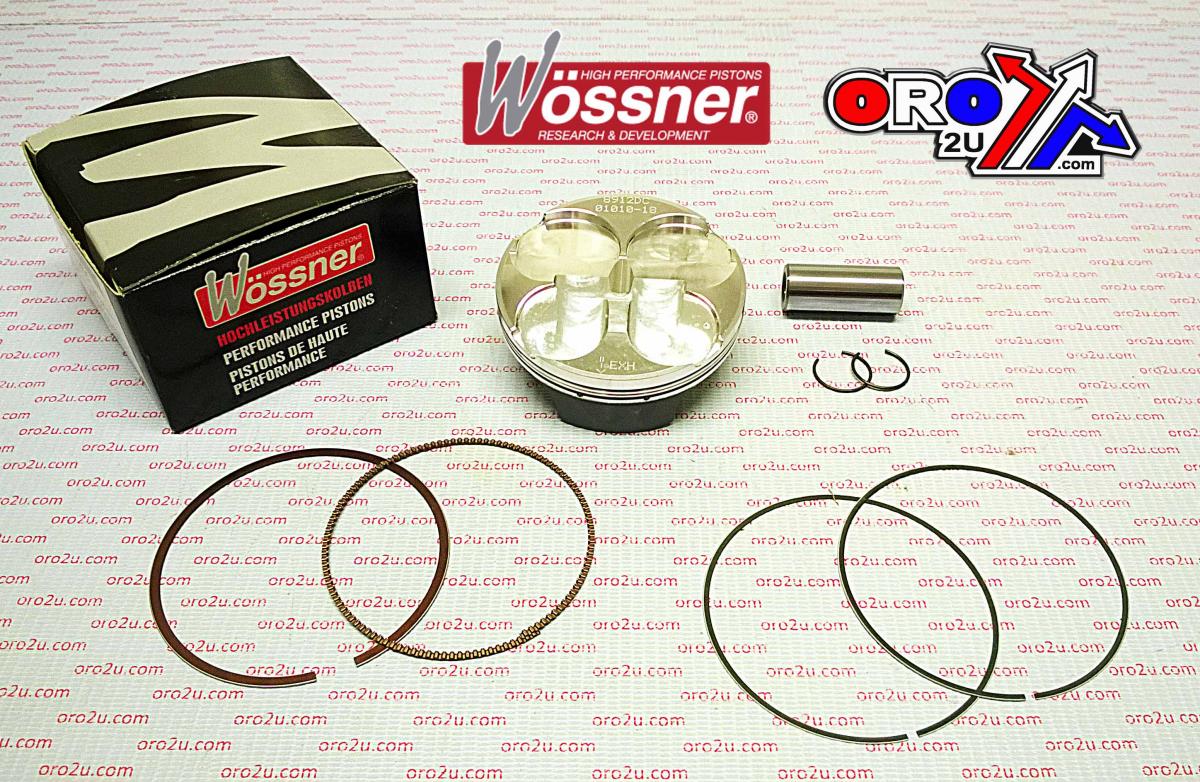

This Wossner forged high-compression piston kit features a 76.82mm bore size (76.78mm actual), providing a +0.02mm oversize fitment for Honda CRF250R models from 2014 to 2015. Manufactured in Germany, the piston includes a high-compression dome and an elliptical profile for consistent thrust load distribution and effective thermal management, delivering increased performance and engine durability.
Features
-
Forged high-compression piston with +0.02mm oversize specification
-
Elliptical design ensures even pressure distribution under thermal expansion
-
Engineered for superior combustion heat transfer and reliability
-
Manufactured in Germany
Specifications
-
Bore Size: 76.82mm (actual 76.78mm)
-
Displacement: 249 cm³
-
Stroke: 53.80 mm
-
Clearance: 0.04 mm
-
Compression Ratio (Wossner): 14.50:1
-
Compression Ratio (OEM): 13.50:1
-
Dome Volume: +0.10 cm³
-
Compression Height: 28.00 mm
-
Theoretical Weight: 19.00 g
-
Lock Part Number: CW16
-
Pin Part Number: WP070
-
Ring Set Part Number: 768XAS
Cross-Reference OEM Part Numbers
-
56-W958.C.WO.HC
Vehicle Fitments
-
2014 Honda CRF250R
-
2015 Honda CRF250R
