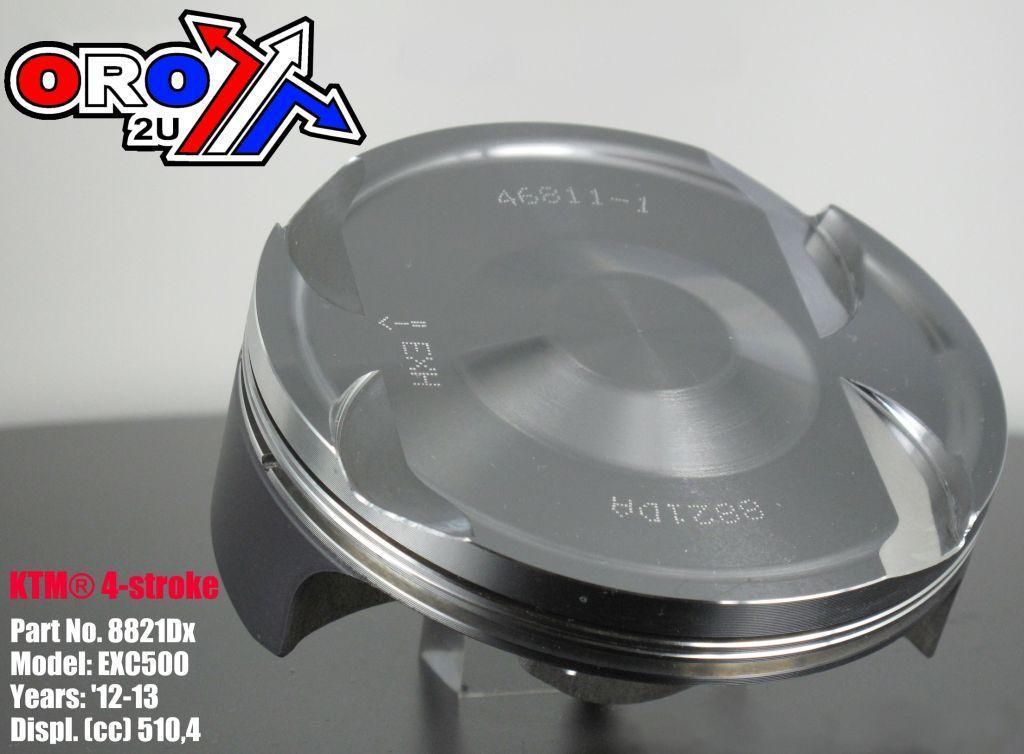

PISTON KIT 12-13 KTM EXC500 95, WOSSNER 8821DB HUSQVARNA

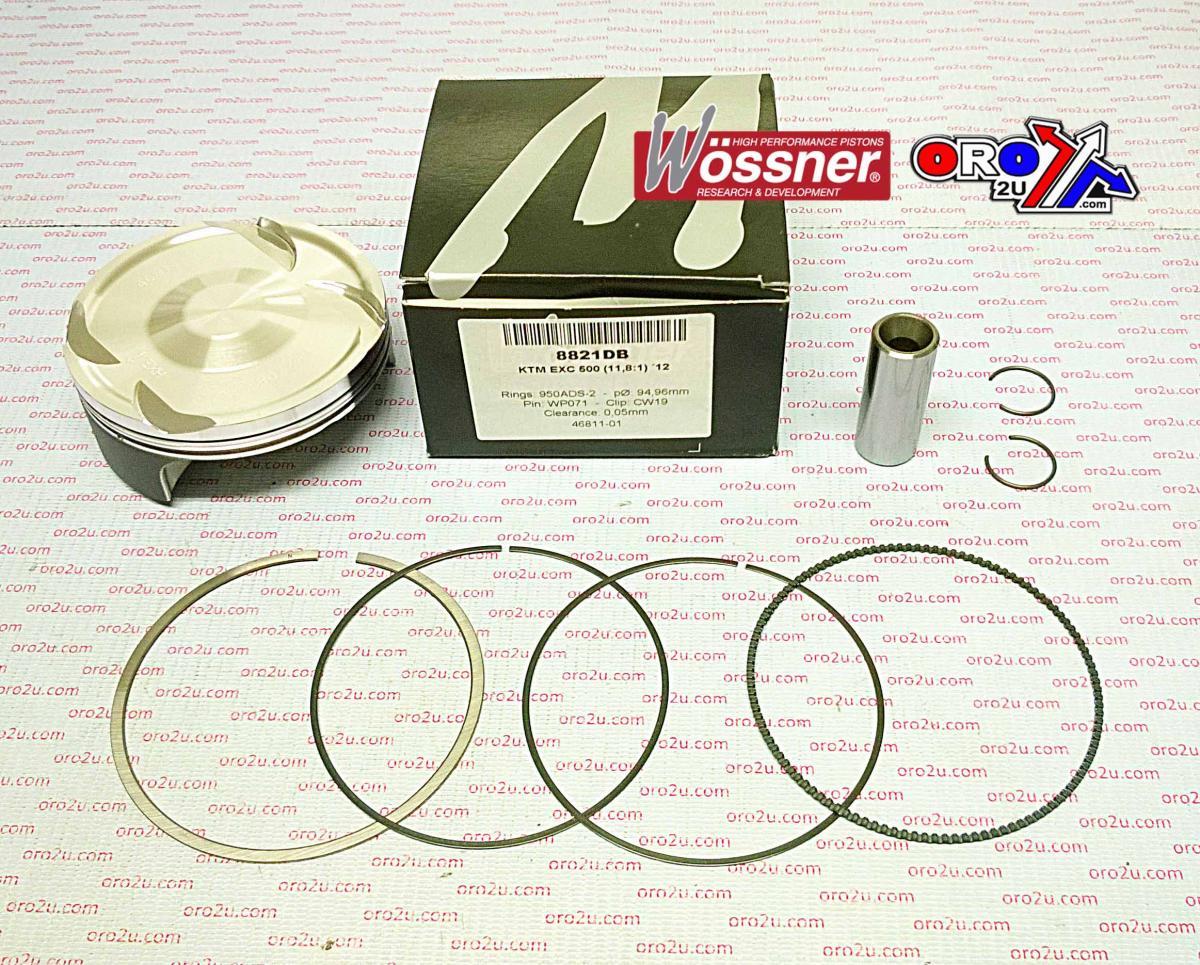

This Wossner forged piston kit is a +0.01mm oversize component tailored for KTM EXC500 four-stroke engines from 2012 onward. Designed with a hard Teflon skirt coating, it ensures an ideal fit and enhanced conformability to the cylinder bore, delivering consistent performance and durability.

Features

•


  Forged piston for superior mechanical strength and durability





•


  Elliptical design provides uniform bearing surface under heat expansion





•


  Optimised for efficient heat dissipation to cylinder walls





•


  Even thrust load distribution helps prevent piston collapse





•


  Hard Teflon skirt coating for enhanced fit and reduced friction




Specifications

•


  Bore Size: 95.01mm





•


  Actual Piston Size: 94.96mm





•


  Display Displacement: 510 cm³





•


  Stroke: 72.00mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: OEM





•


  OEM Compression Ratio: 11.80:1





•


  Dome Volume: -6.80 cm³





•


  Compression Height: 22.80mm





•


  Circlip Part Number: CW19





•


  Pin Part Number: WP071





•


  Ring Set Part Number: 950ADS-2




Cross-Reference OEM Part Numbers

•


  Part No: 56-W925.B.WO




Vehicle Fitments

•


  KTM EXC500 (2012– )
