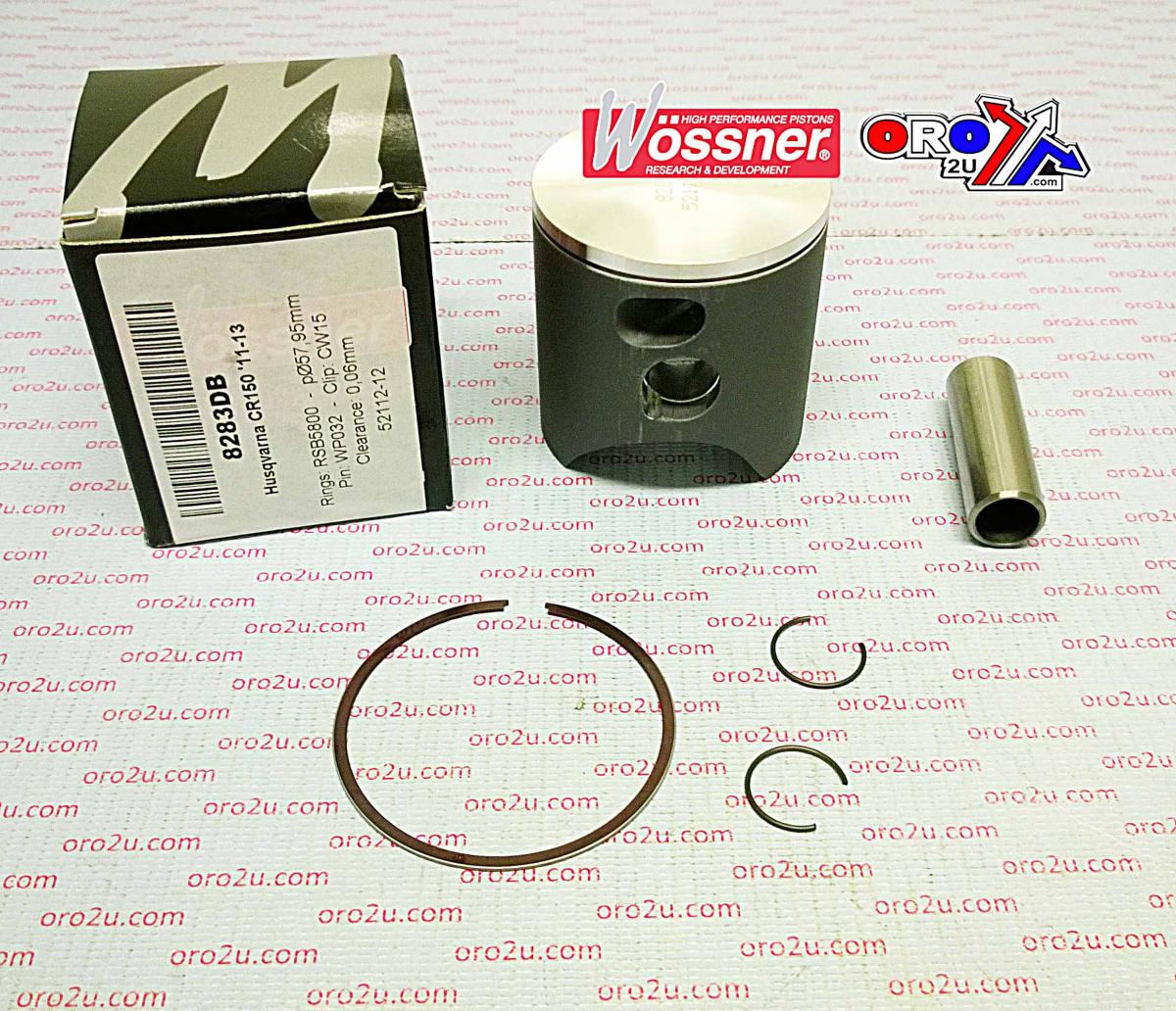

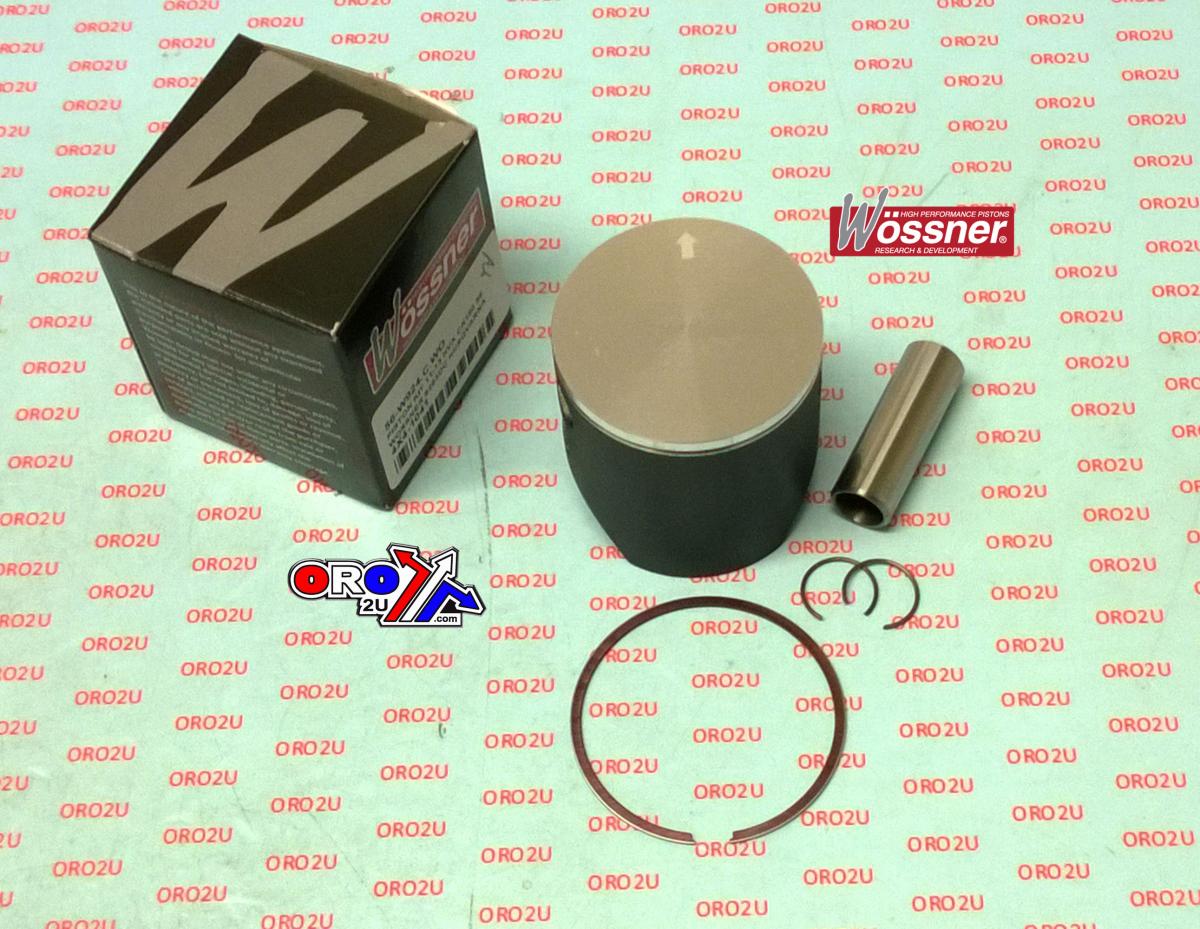

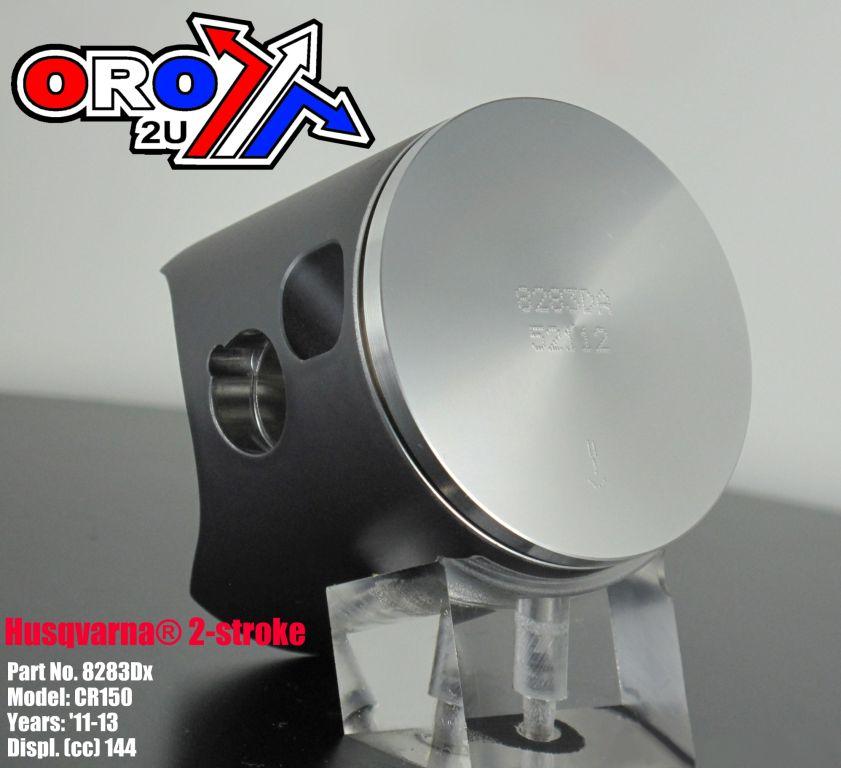

PISTON KIT 11-13 HVA CR150 58, WOSSNER 8283DA HUSQVARNA

This Wossner forged piston kit is engineered as a standard-size replacement for the Husqvarna CR150 two-stroke models from 2011 to 2013. Built for high-performance use, it offers superior strength, heat management, and durability under demanding riding conditions.

Features

•


  Forged construction provides exceptional strength and reliability





•


  Elliptical design ensures uniform bearing surface under thermal expansion





•


  Promotes efficient heat transfer from combustion chamber to cylinder walls





•


  Reduces risk of piston collapse through even thrust load distribution





•


  Manufactured in Germany




Specifications

•


  Bore Size: 58.00mm





•


  Actual Piston Size: 57.94mm





•


  Display Displacement: 144 cm³





•


  Stroke: 54.50mm





•


  Piston Clearance: 0.06mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 28.00mm





•


  Circlip Part Number: CW15





•


  Pin Part Number: WP032





•


  Ring Set Part Number: RSB5800




Cross-Reference OEM Part Numbers

•


  Part No: 56-W924.A.WO





•


  Cross Reference: 800099749/1




Vehicle Fitments

•


  Husqvarna CR150 (2011–2013)
