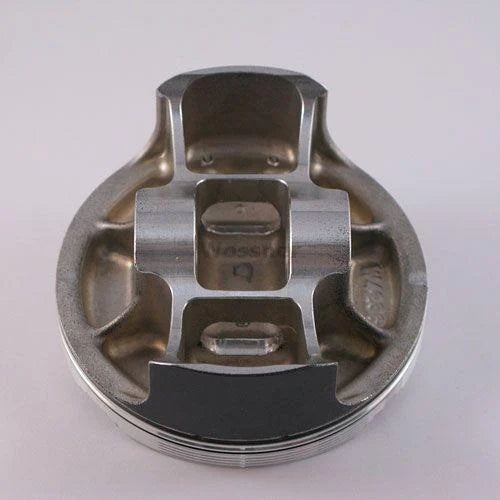

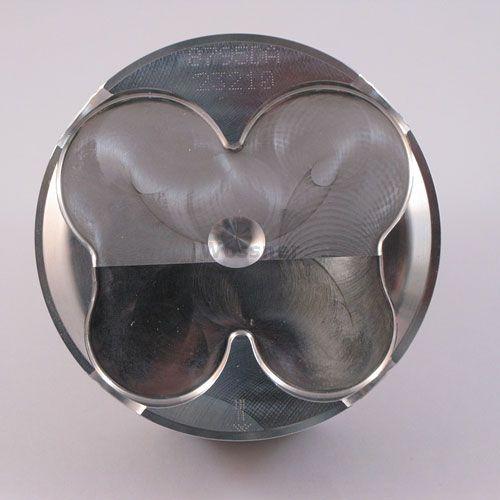

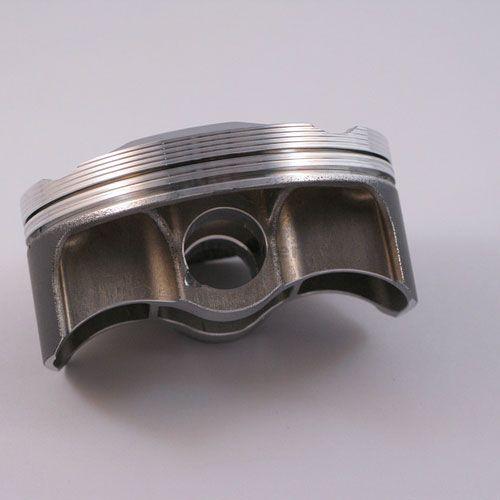

PISTON KIT 10-22 RMZ250 77mm B, WOSSNER SUZUKI 8781DB

Piston kit 77.01mm BORE 76.97 Wossner 8781DB (+0.01MM)

SUZUKI

RX-Z250 2010 - 2022,

• Wossner forged pistons are superior in strength and design.


• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.


• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.


• Made in Germany.

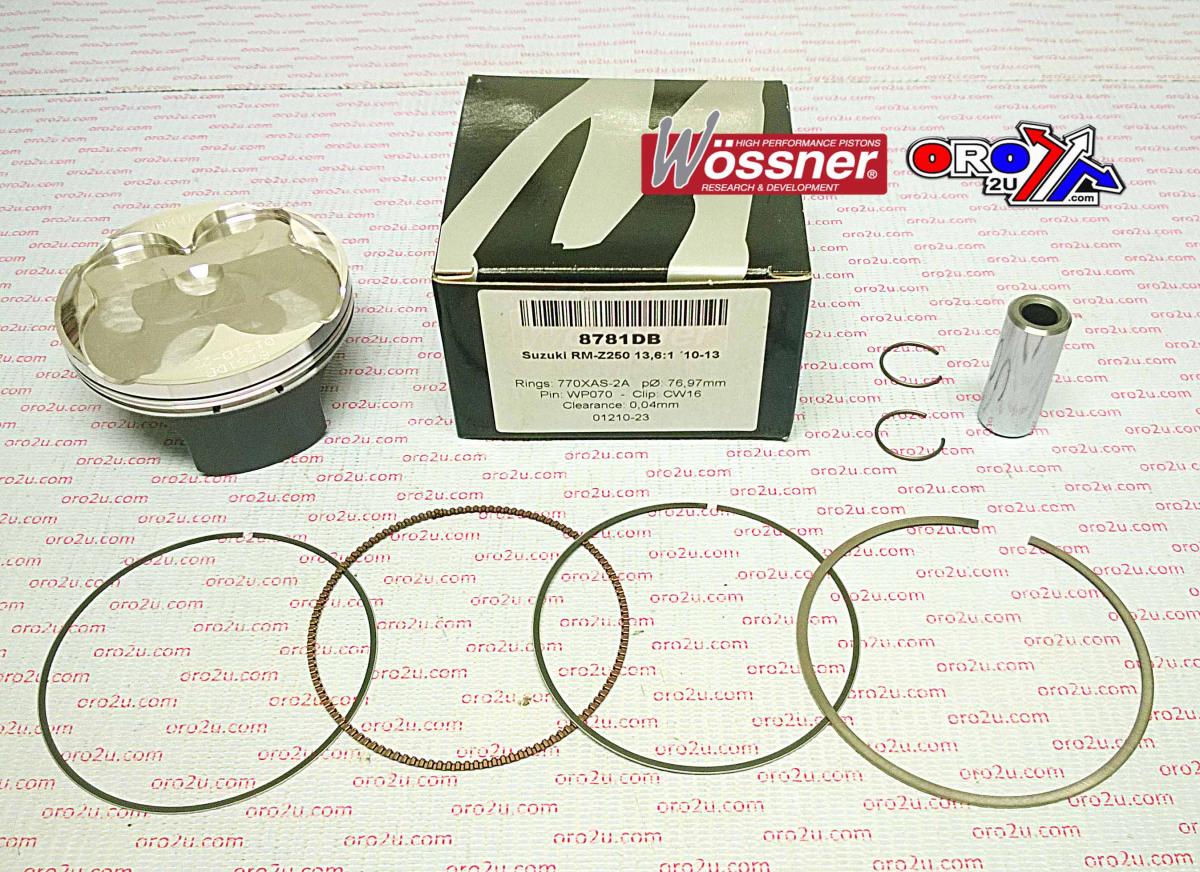

Part No. 56-W951.B.WO (oro2u.com) Wossner Piston Suzuki RM-Z250 77.01 mm Bore (PN# 8781DB)

Lock P/N CW16

Pin P/N WP070

Ring Set P/N 770XAS-S

RM-Z250 2010-13



Display (cm3) 249

Hub stroke (mm) 53.80

Clearance (mm) 0.04

Wossner compression Ratio: 13.60:1

OEM Compression ratio: 13.50:1

Dome volume (cm3) -2.60

Compression height (mm) 19.60

Theorectical weight (G)
