PISTON KIT 10-13 FE390 95.00 A, WOSSNER 8824DA
PISTON KIT 10-13 FE390 95.00 A, WOSSNER 8824DA

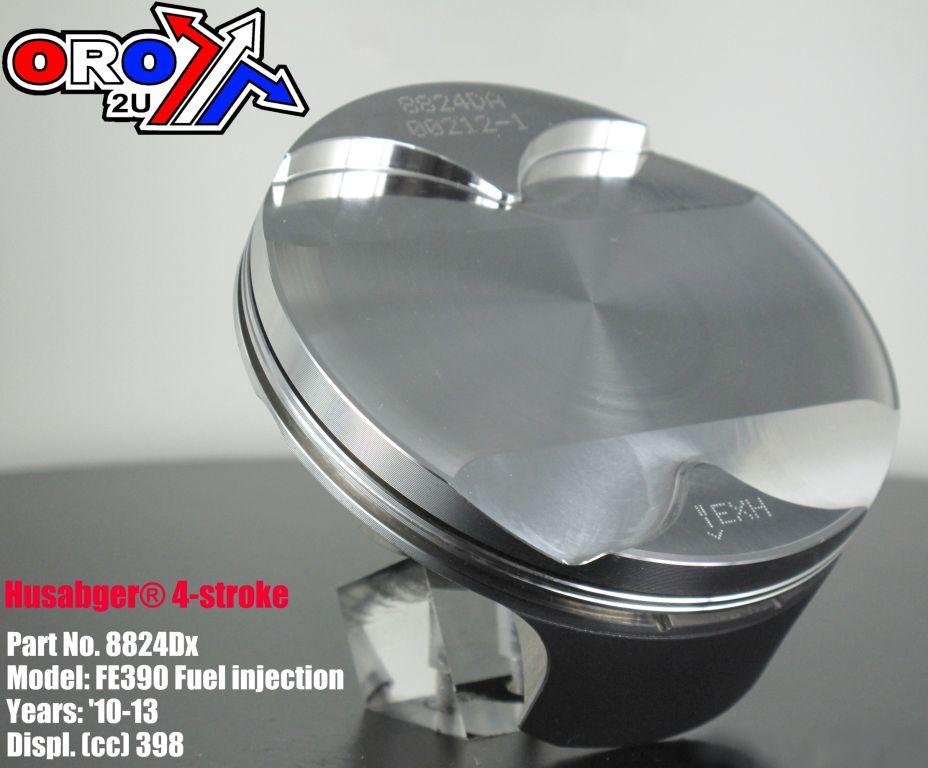

Wossner forged piston kit 8824DA is a standard-size piston with a 95mm bore (measured at 94.95mm), engineered for the Husaberg FE390 fuel-injected models from 2010 to 2012. Manufactured in Germany, this piston delivers superior strength, optimal thermal performance, and a precise fit for high-demand four-stroke engines.
Features
-
Forged construction ensures exceptional strength and durability
-
Elliptical design provides uniform bearing surface under heat expansion
-
Optimised heat transfer from the combustion chamber to cylinder walls
-
Minimises localised stress to reduce the risk of piston collapse
-
Made in Germany
Specifications
-
Bore: 95mm (Measured: 94.95mm)
-
Display Volume: 398 cm³
-
Stroke: 55.50mm
-
Clearance: 0.05mm
-
Compression Height: 23.20mm
-
Wossner Compression Ratio: OEM
-
OEM Compression Ratio: 11.10:1
-
Dome Volume: -1.10 cm³
-
Part No.: 56-W918.A.WO (Wossner 8824DA)
-
Ring Set: 950ADS-2
-
Lock P/N: CW19
-
Pin P/N: WP071
Vehicle Fitments
-
2010 Husaberg FE390
-
2011 Husaberg FE390
-
2012 Husaberg FE390
