PISTON KIT 08-12 DS450 97.00, WOSSNER 8864DA CAN-AM 420685132
PISTON KIT 08-12 DS450 97.00, WOSSNER 8864DA CAN-AM 420685132

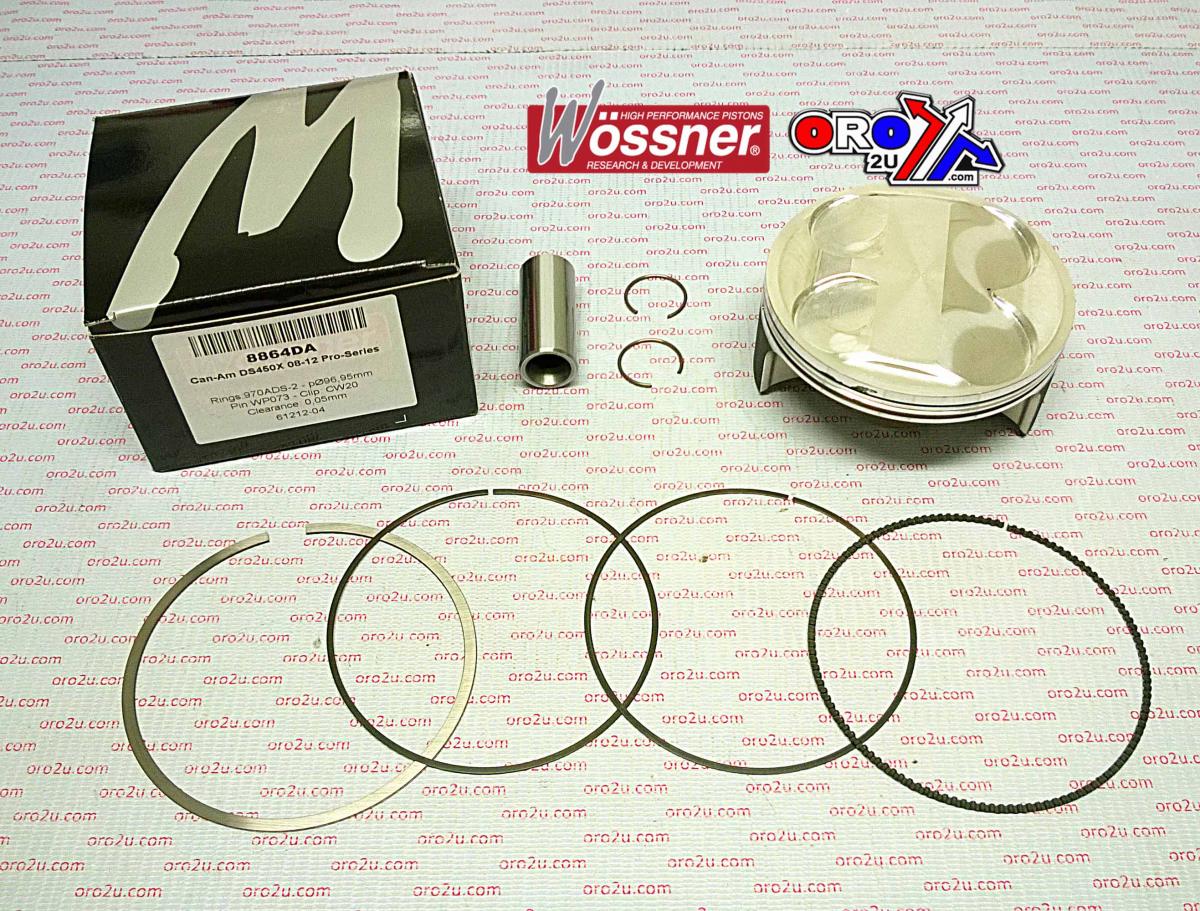

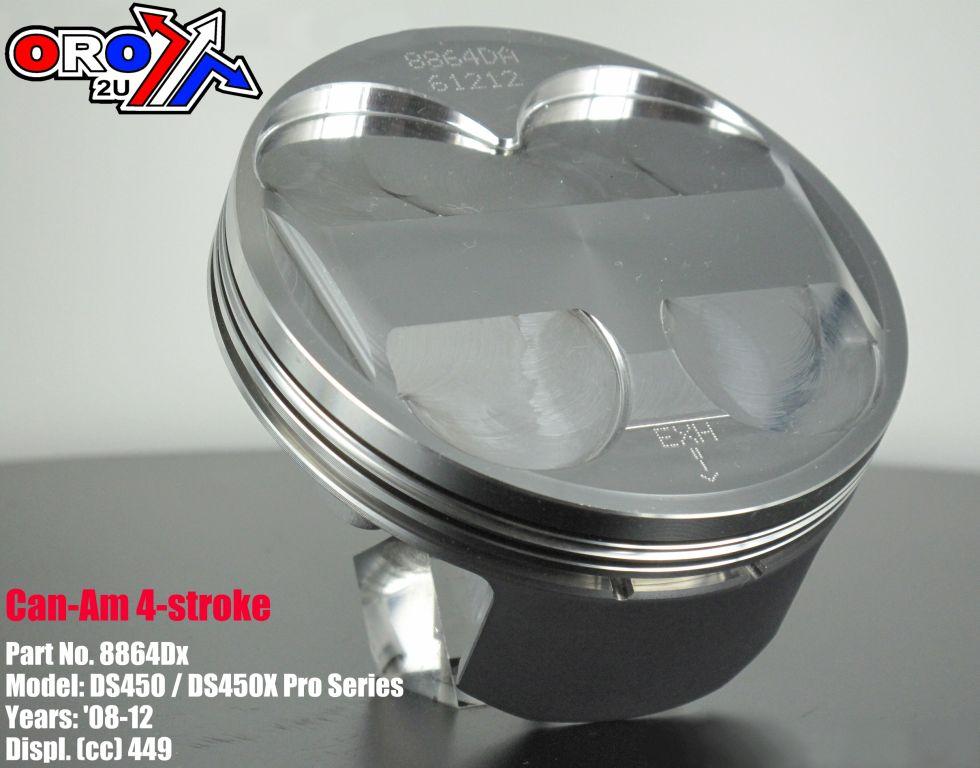

Wossner forged piston kit 8864DA is a high-compression (HC) performance piston designed for the CAN-AM DS450 and DS450X models from 2008 to 2012. With a 97mm bore and a compression ratio of 13.5:1, this Pro Series piston is built for enhanced engine response, structural integrity, and thermal efficiency. Manufactured in Germany, the kit includes all essential components for installation.
Features
-
Forged construction for maximum strength and durability
-
Elliptical design ensures uniform load distribution during heat expansion
-
Optimised for high compression and efficient heat dissipation
-
Prevents piston collapse by reducing localised pressure
-
Made in Germany
Specifications
-
Bore: 97mm (Measured: 96.95mm)
-
Display Volume: 449 cm³
-
Stroke: 60.80mm
-
Clearance: 0.05mm
-
Compression Height: 26.80mm
-
Wossner Compression Ratio: 12.5:1
-
OEM Compression Ratio: 11.8:1
-
Dome Volume: -0.50 cm³
-
Part No.: 56-W910.A.WO (Wossner 8864DA)
-
Ring Set: 970AD-S
-
Lock P/N: CW20
-
Pin P/N: WP073
Cross-Reference OEM Part Numbers
-
420685132
-
40027M09700
-
8943DA
Vehicle Fitments
-
2008 Can-Am DS450
-
2009 Can-Am DS450
-
2010 Can-Am DS450
-
2011 Can-Am DS450
-
2012 Can-Am DS450
-
2008 Can-Am DS450X
-
2009 Can-Am DS450X
-
2010 Can-Am DS450X
-
2011 Can-Am DS450X
-
2012 Can-Am DS450X
