PISTON KIT 03 KX125 54.00 C, WOSSNER 8073DC KAWASAKI MX
PISTON KIT 03 KX125 54.00 C, WOSSNER 8073DC KAWASAKI MX

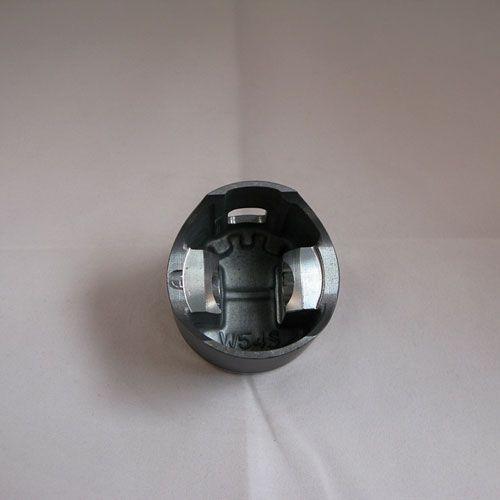

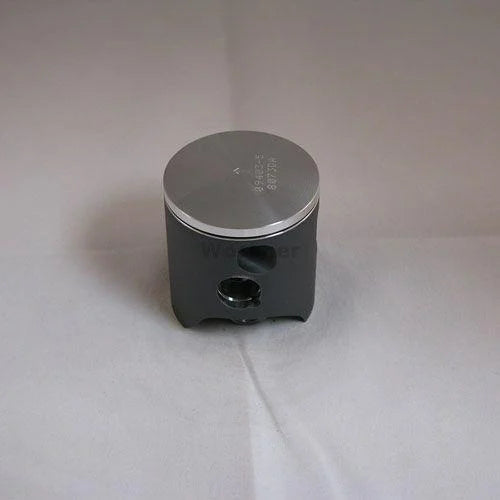

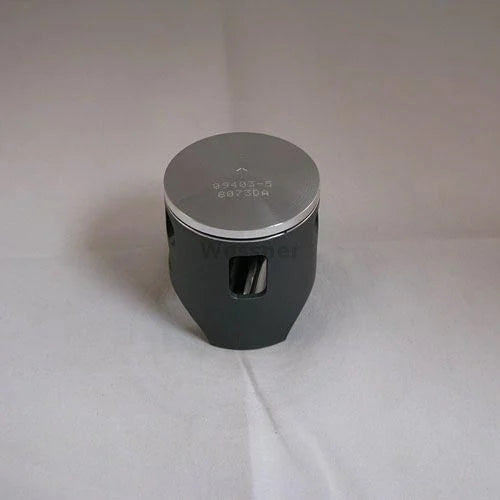

This Wossner forged piston kit is designed for the Kawasaki KX125 (2003), featuring a 54.02mm bore and a 53.97mm piston diameter. Precision-engineered for high performance and durability, this piston provides efficient combustion heat transfer and consistent bearing surface contact during thermal expansion.
Features
-
Forged piston construction ensures high strength and durability
-
Optimised design enhances heat transfer from combustion chamber to cylinder walls
-
Elliptical shape delivers uniform bearing surface under expansion conditions
-
Teflon-coated skirt enhances conformity to bore and reduces friction
Specifications
-
Bore Size: 54.02 mm
-
Piston Diameter: 53.97 mm
-
Compression Height: 29.30 mm
-
Stroke: 54.50 mm
-
Clearance: 0.05 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
-
Displacement: 125 cm³

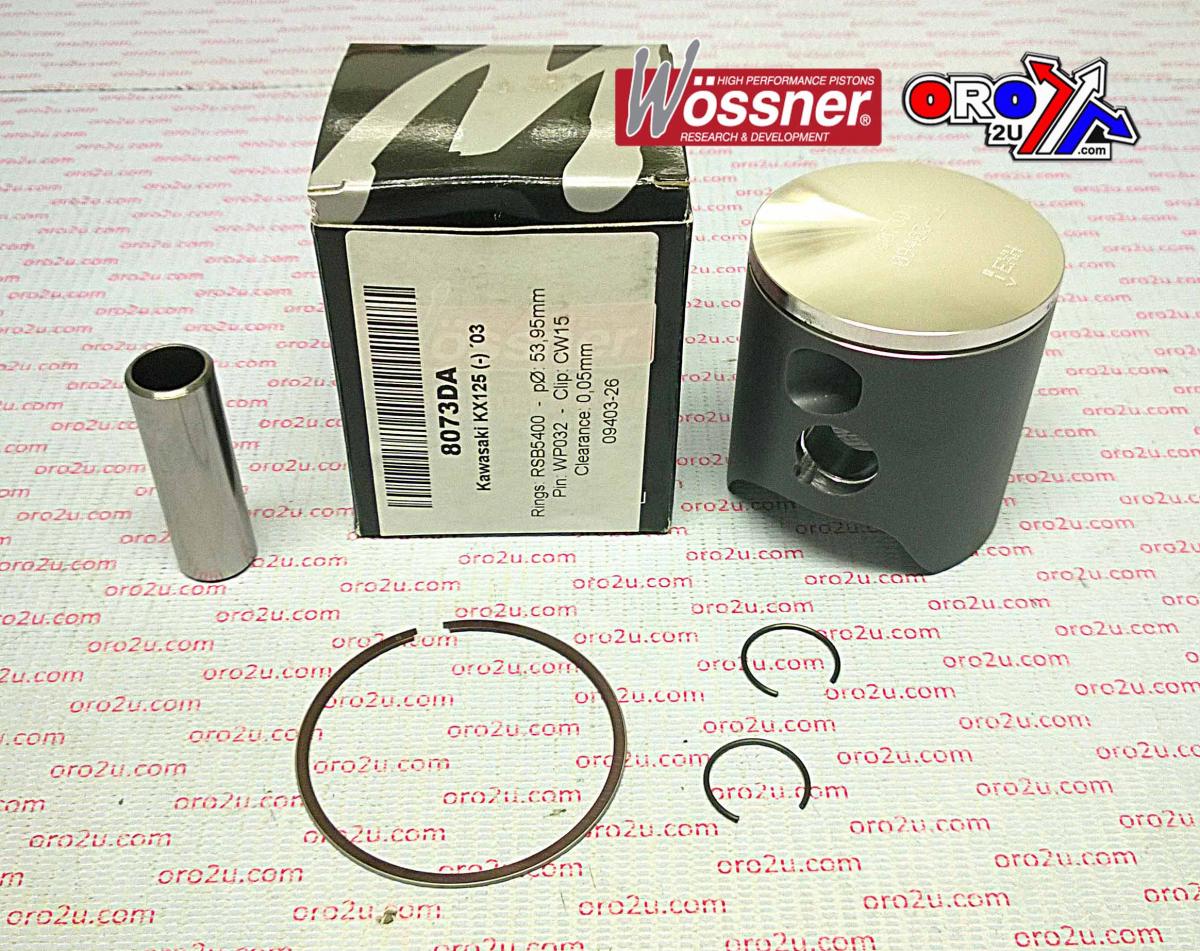

Cross-Reference OEM Part Numbers
-
Piston Kit: Wossner 8073DA
-
Alternate Piston Kit Reference: 56-W822.C.WO / 8073DC
-
Lock: CW15
-
Pin: WP032
-
Ring Set: RSB5400
-
Rod: P2010
Vehicle Fitments
-
Kawasaki KX125 2003
