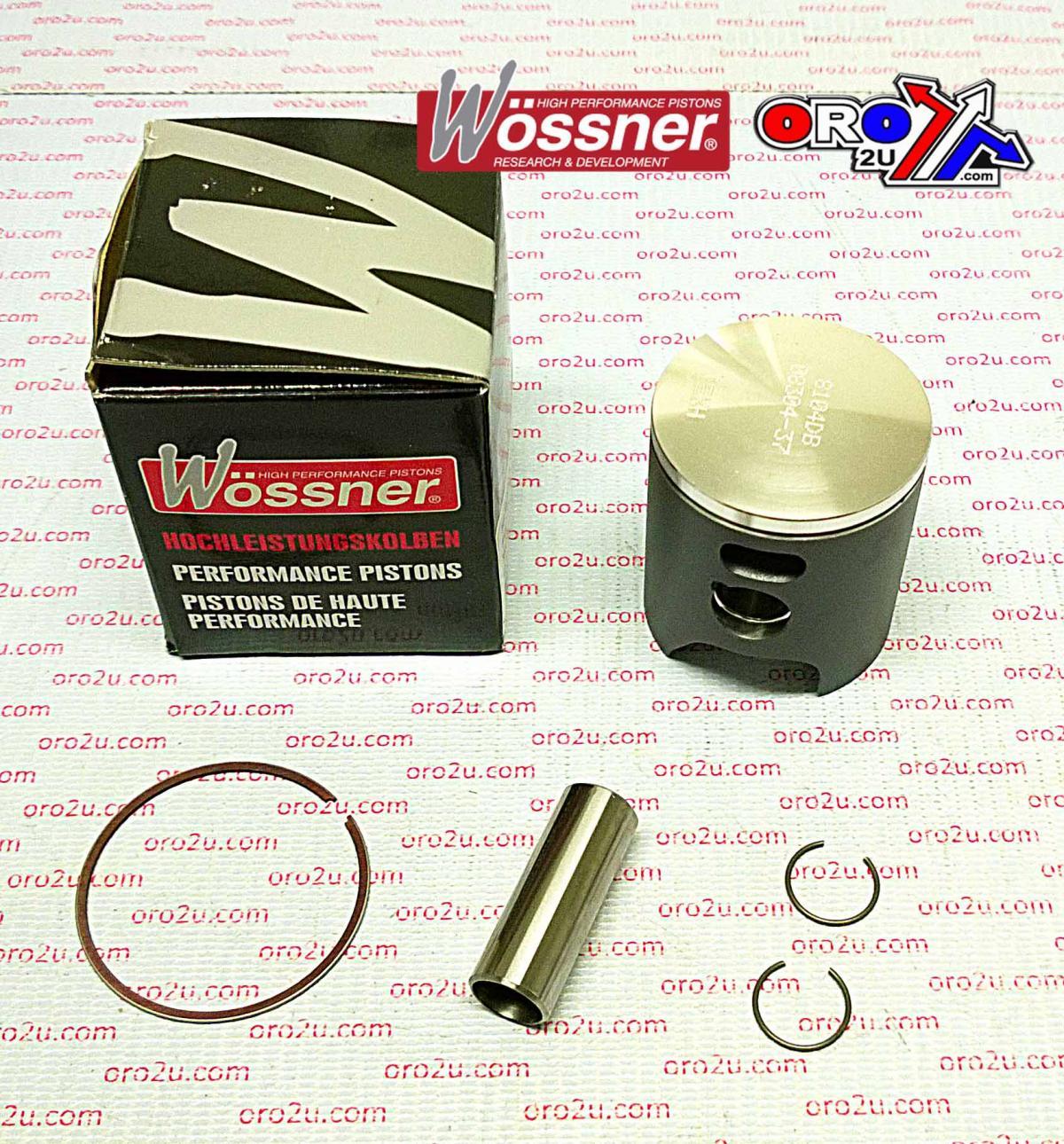

PISTON KIT 02-20 YZ85 47.50 B, WOSSNER 8104DB YAMAHA MX

This Wossner forged piston kit with a 47.51mm bore (+0.01mm oversize) is designed for Yamaha YZ85 models from 2002 to 2019. Crafted for high-performance two-stroke engines, the piston offers excellent strength, heat management, and reliability. Manufactured in Germany, it features an elliptical design that enhances structural integrity under thermal expansion and mechanical load.

Features

•


  Forged construction for superior strength and longevity





•


  Optimised design for efficient combustion heat transfer to cylinder walls





•


  Elliptical profile ensures even bearing surface and minimises risk of piston collapse





•


  Made in Germany




Specifications

•


  Bore: 47.51mm





•


  Actual Bore: 47.46mm





•


  Engine Displacement: 85 cm³





•


  Stroke: 47.80mm





•


  Clearance: 0.05mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 26.00mm





•


  Lock Part Number: CW14





•


  Pin Part Number: WP058





•


  Ring Set Part Number: RSB4750





•


  Con Rod Kit Part Number: P2008




Cross-Reference OEM Part Numbers

•


  Not specified




Vehicle Fitments

•


  Yamaha YZ85 2002 - 2019
