PISTON KIT 01-20 KX85 48.50 C, WOSSNER 8102DC KAWASAKI MX
PISTON KIT 01-20 KX85 48.50 C, WOSSNER 8102DC KAWASAKI MX

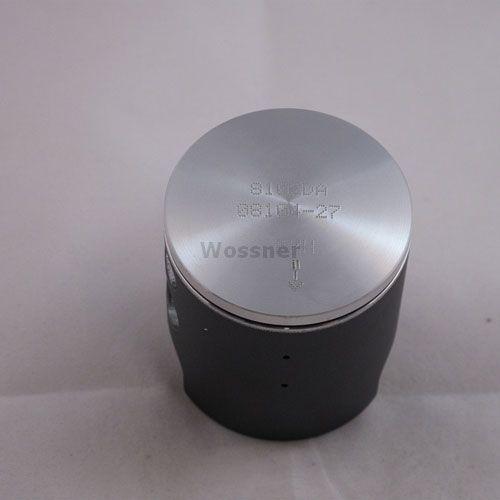

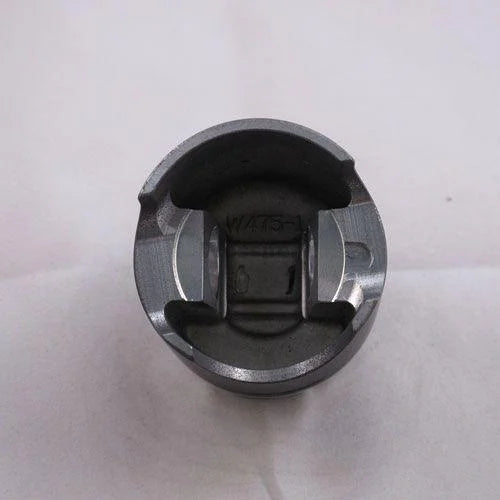

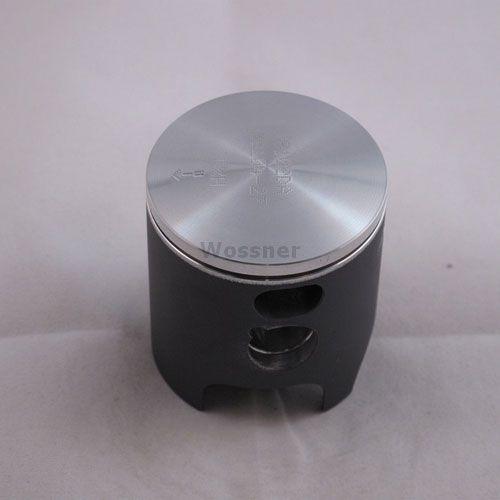

This Wossner piston kit features a 48.52mm bore and 48.47mm actual piston diameter, engineered for performance and durability. Designed specifically for the Kawasaki KX85 (2001–2020), this forged piston provides superior heat transfer and structural strength. Manufactured in Germany, it includes all essential components for high-performance engine rebuilds.
Features
-
Forged piston construction for increased strength and reliability
-
Optimised combustion chamber heat transfer to cylinder walls
-
Elliptical design ensures uniform bearing surface under heat expansion
-
Reduces localised pressure and distributes thrust loads evenly
-
Prevents piston collapse under stress
-
Manufactured in Germany
Specifications
-
Bore: 48.52mm
-
Piston Diameter: 48.47mm
-
Display (cm³): 85
-
Stroke (mm): 45.80
-
Clearance (mm): 0.05
-
Compression Height (mm): 26.00
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
Cross-Reference OEM Part Numbers
-
13001-0006
-
09104826
-
879M04850
Vehicle Fitments
-
Kawasaki KX85 2001–2020
Included Components
-
Lock: CW14
-
Pin: WP058
-
Ring Set: RSB4850
-
Rod: P2005
-
Part Number: 56-W782.C.WO
