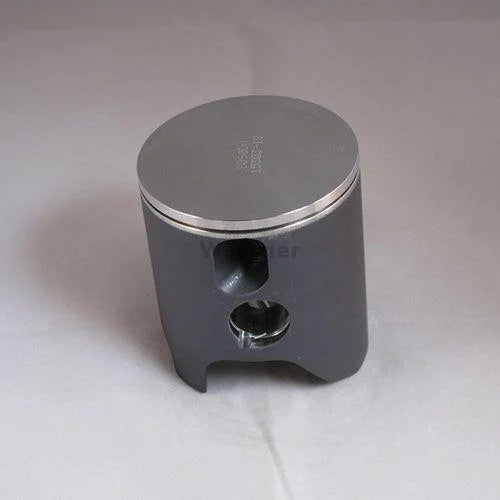

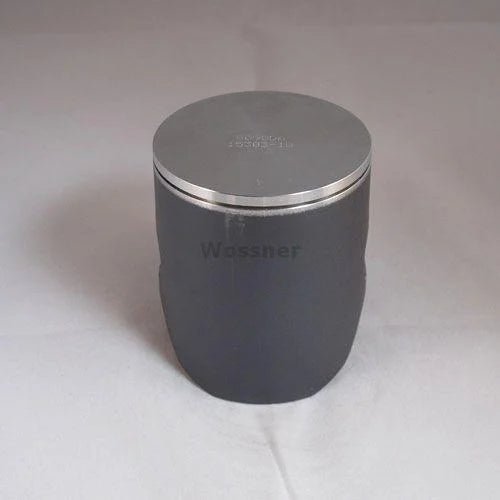

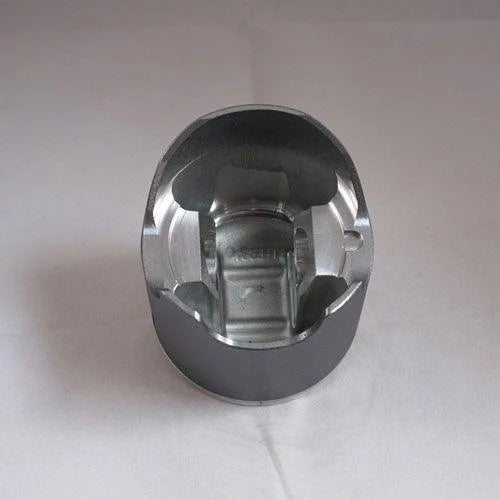

PISTON KIT 00-06 KTM250 67.00, WOSSNER 8090D060 FORGED

This Wossner piston kit with a 67.00mm bore (+0.60mm oversize) is designed for KTM SX250 models from 2000 to 2002. Crafted from high-quality forged materials, this piston delivers enhanced strength, thermal efficiency, and durability in demanding 2-stroke applications.

Features

•


  Forged piston construction provides exceptional resistance to stress and wear





•


  Engineered for effective heat transfer from the combustion chamber to the cylinder wall





•


  Elliptical shape ensures uniform load distribution during thermal expansion





•


  Reduces localised pressure to prevent piston collapse





•


  Manufactured in Germany with precise engineering standards




Specifications

•


  Bore: 67.00 mm





•


  Actual piston size: 66.94 mm





•


  Stroke: 72.00 mm





•


  Display volume: 249 cm³





•


  Clearance: 0.06 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 38.00 mm

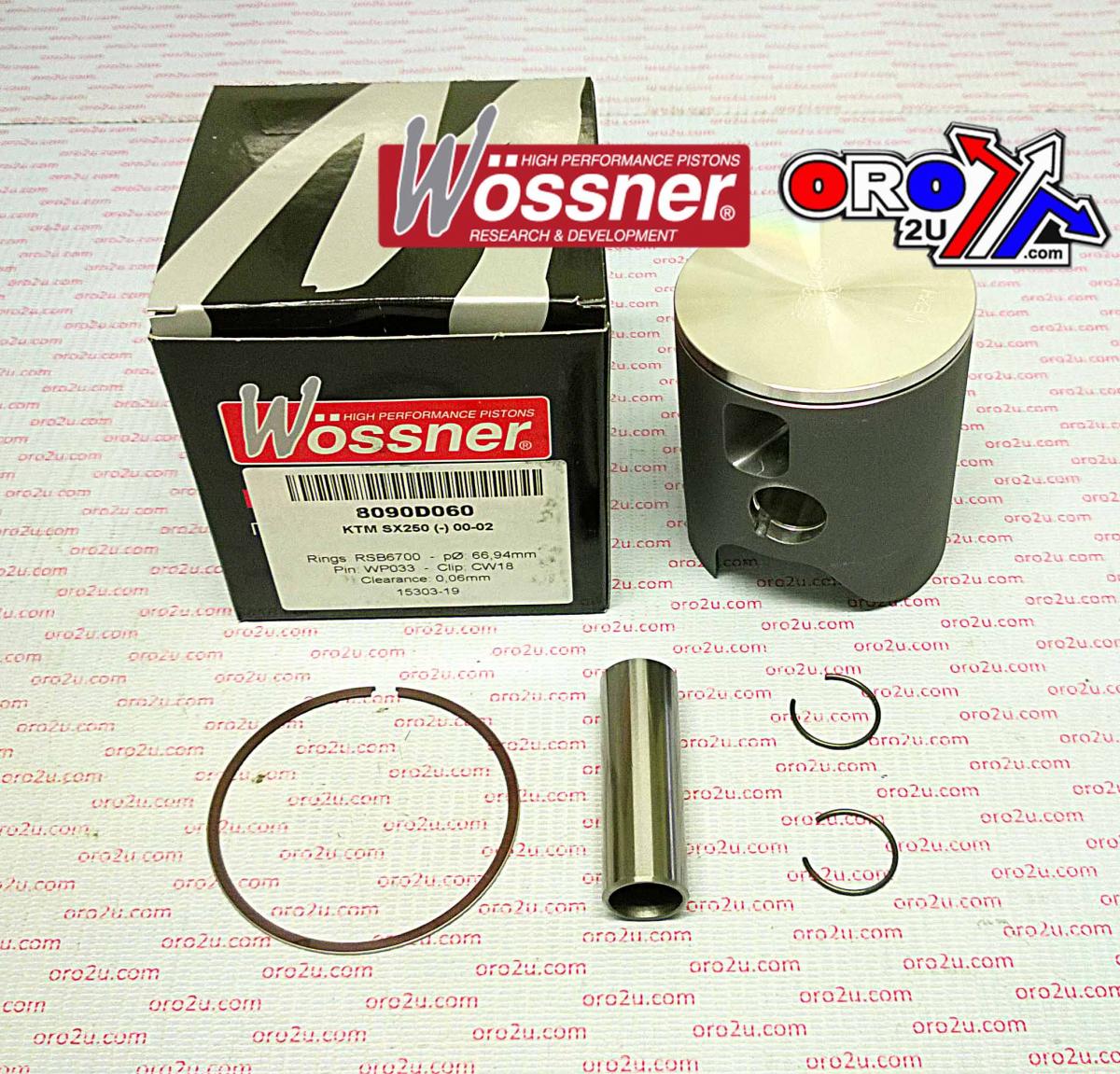

Cross-Reference OEM Part Numbers

•


  Piston Kit: 8090D060





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6700





•


  Part No: 56-W774_060.WO




Vehicle Fitments

•


  KTM SX250 2000





•


  KTM SX250 2001





•


  KTM SX250 2002
