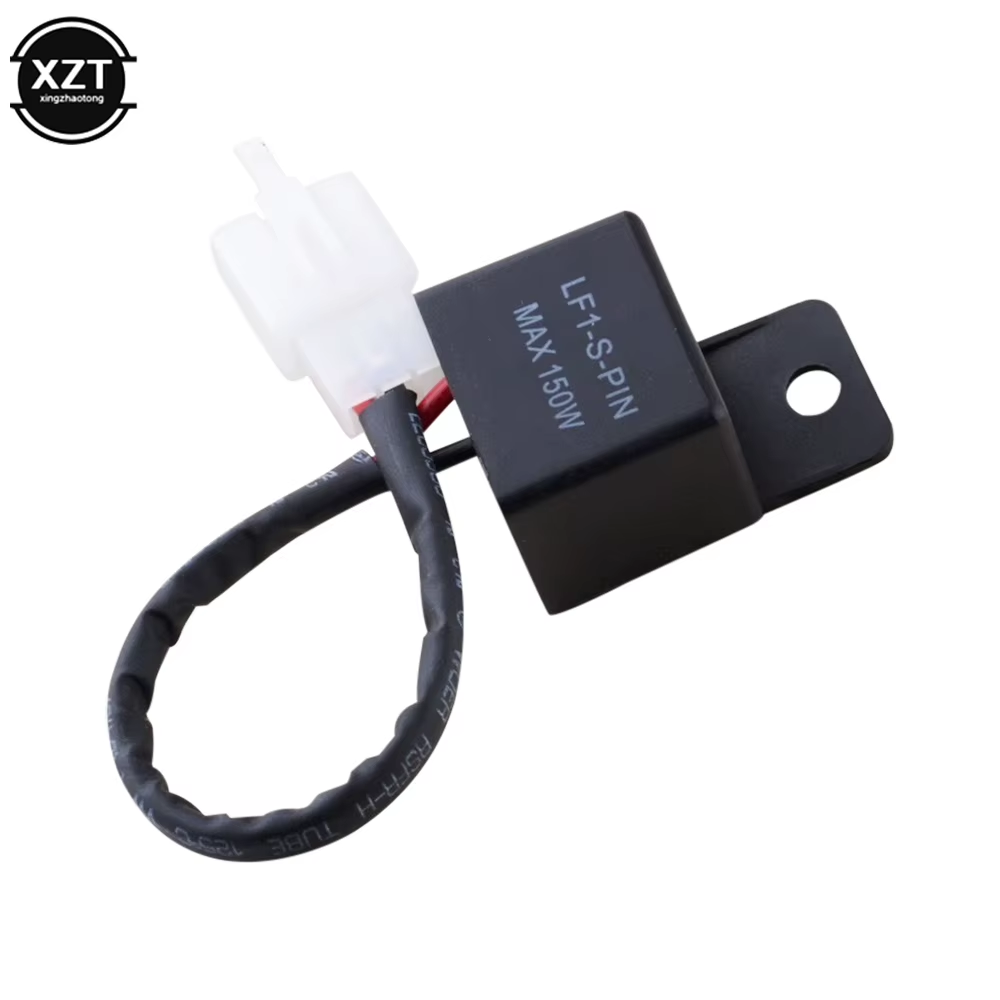

FLASHER RELAY UNIT UNIVERSAL LED 12V 150W

The universal LED flasher relay is a replacement unit for compatible two-pin motorcycle indicator circuits. It controls the flashing of LED indicators on 12 V electrical systems when a conventional flasher relay is unsuitable.

Features

• Allows LED indicators to flash at a normal rate without fitting separate load resistors.

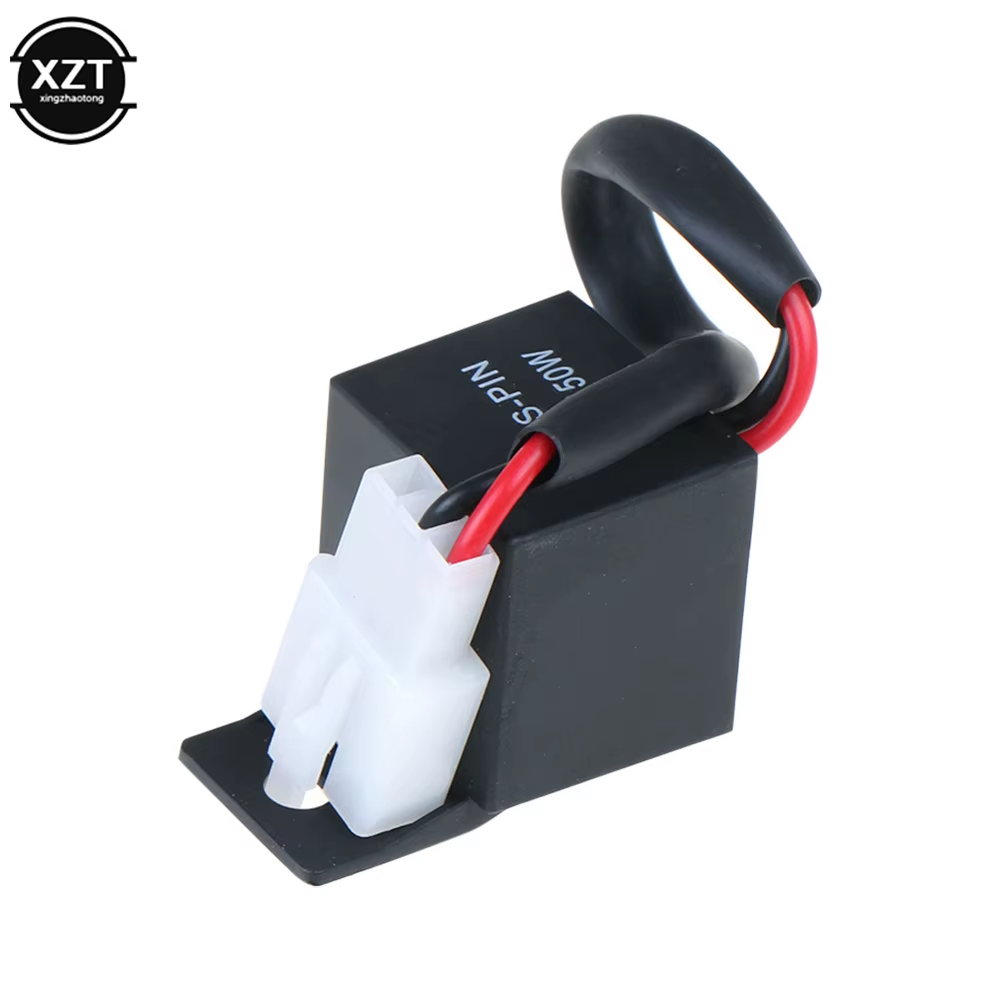

• Removable white adaptor allows direct connection to the pins if the wiring order differs.

Specifications

• Pin configuration: 2-pin


• Operating voltage: 12 V nominal (11–15 V)


• Maximum power: 150 W


• Flashing frequency: 90 flashes per minute


• Switching current: 0.02–12 A


• Operating temperature: -40 °C to +80 °C

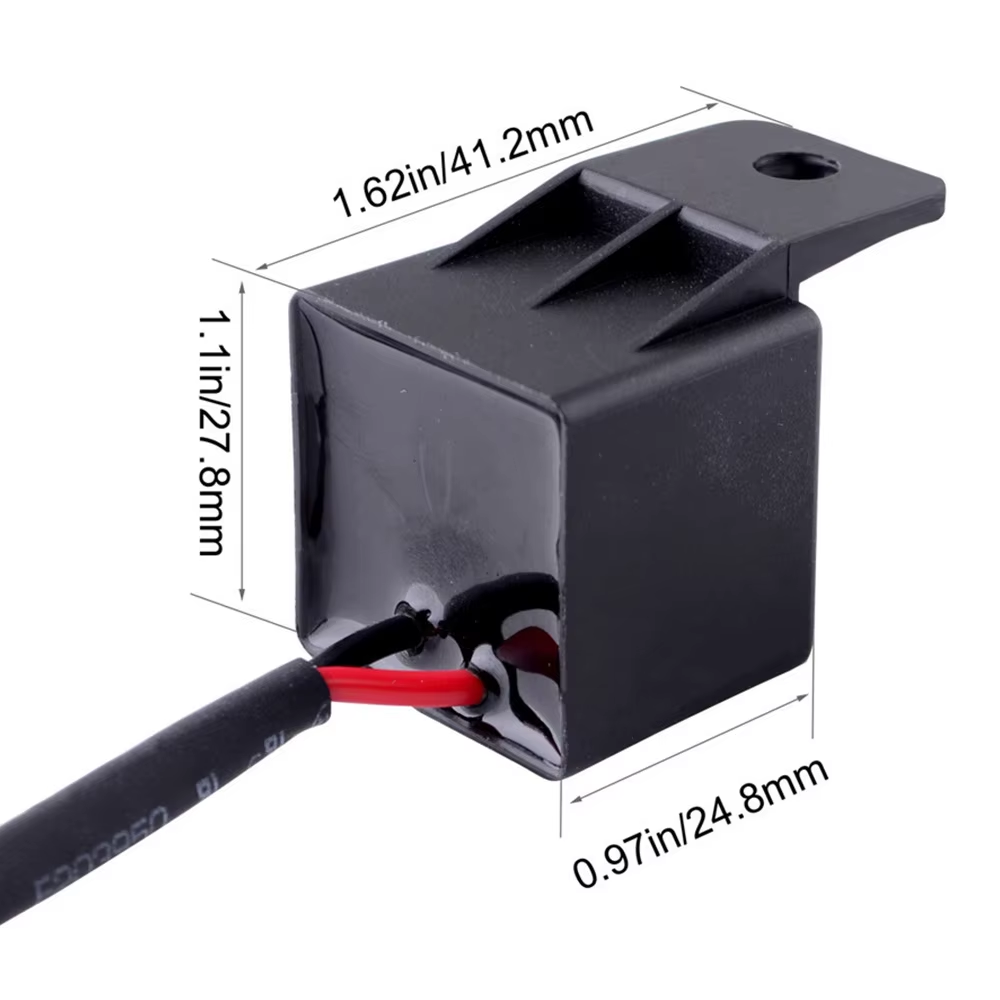

• Cable length: 13 cm


• Materials: plastic and metal

Honda, Kawasaki, Suzuki, KTM and Yamaha motorcycles
