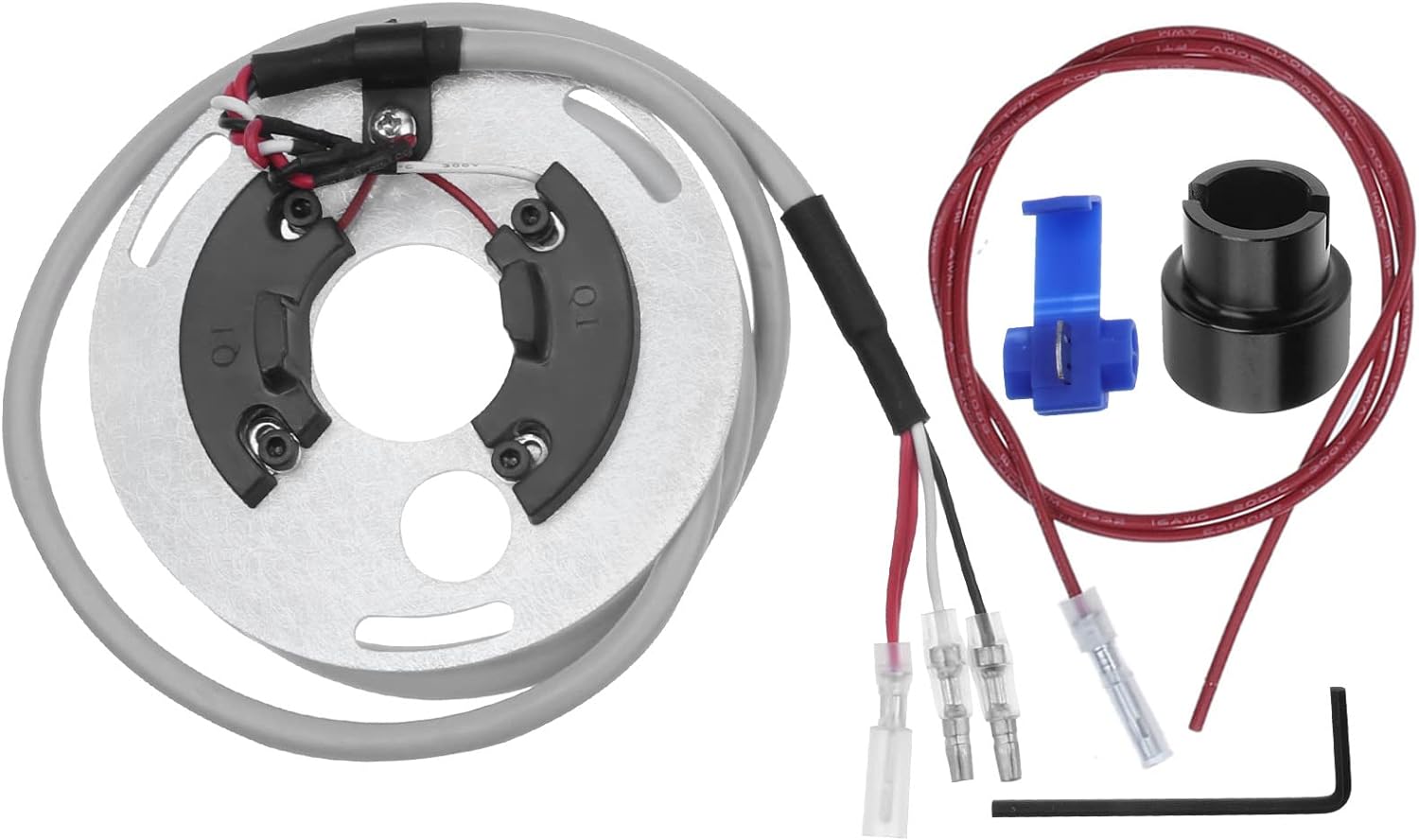

ELECTRONIC IGNITION SYSTEM SUZUKI 1977-1978 GS550 GS750 KD DS3-1

The Dyna S DS3-1 is a self-contained electronic ignition system designed to replace the original points assembly in specific 1977-1978 Suzuki GS550 and GS750 models equipped with Kokusan Denso (KD) ignition systems. It utilizes a magnetic rotor with the original spark advancer, maintaining the factory advance curve.

Features

• Replaces the entire points plate assembly


• Mounts in the original position


• Utilizes a magnetic rotor with the original spark advancer


• Maintains the factory advance curve

Specification

• Compatible with coils having at least 3-ohm primary resistance


• Designed for use with stock or aftermarket coils

Cross-Reference OEM Part Numbers

• DS3-1

Vehicle Fitments

• Suzuki GS550B (1977)


• Suzuki GS550C/EC (1978)


• Suzuki GS750B (1977)


• Suzuki GS750C/EC (1978)

Note: This ignition system is compatible only with models equipped with Kokusan Denso (KD) ignition systems. To verify compatibility, remove the points cover and check the advancer; it should be stamped with "KD." If it's stamped "ND" (Nippondenso), the DS3-2 ignition system is required instead.
