Name: CYLINDER KIT 96.00mm STD 2020-2025 HONDA TRX 520 12100-HR6-B00
Brand: ORO2U
SKU: 56-K241.96.CK
Price: 187.14 GBP
Availability: InStock

CYLINDER KIT 96.00mm STD 2020-2025 HONDA TRX 520 12100-HR6-B00

£187.14

A complete cylinder, piston and gasket top-end rebuild kit with a standard 96.00 mm bore for Honda 518 cc single-cylinder engines. Designed as a direct replacement for the original components on TRX520 (Foreman and Foreman Rubicon) ATVs and Pioneer 520 UTVs, maintaining the OEM bore × stroke (96.0 mm × 71.5 mm) and 19 mm wrist-pin size.

Features

Standard 96.00 mm bore to maintain the 518 cc displacement with a 71.5 mm stroke

Direct replacement dimensions for OEM components

Manufactured to precise tolerances for dependable performance

Aluminium construction

19 mm piston pin with circlips included

Supplied with cylinder head, base and head-cover gaskets

Visual check of the product images before ordering is recommended

Straightforward to install; professional fitting is advised if unsure

Part numbers supplied for identification and cross-reference only

Specifications

Material: Aluminium

Displacement: 518 cc

Bore type: Standard

Bore diameter: 96.00 mm

Stroke: 71.5 mm

Piston pin diameter: 19 mm

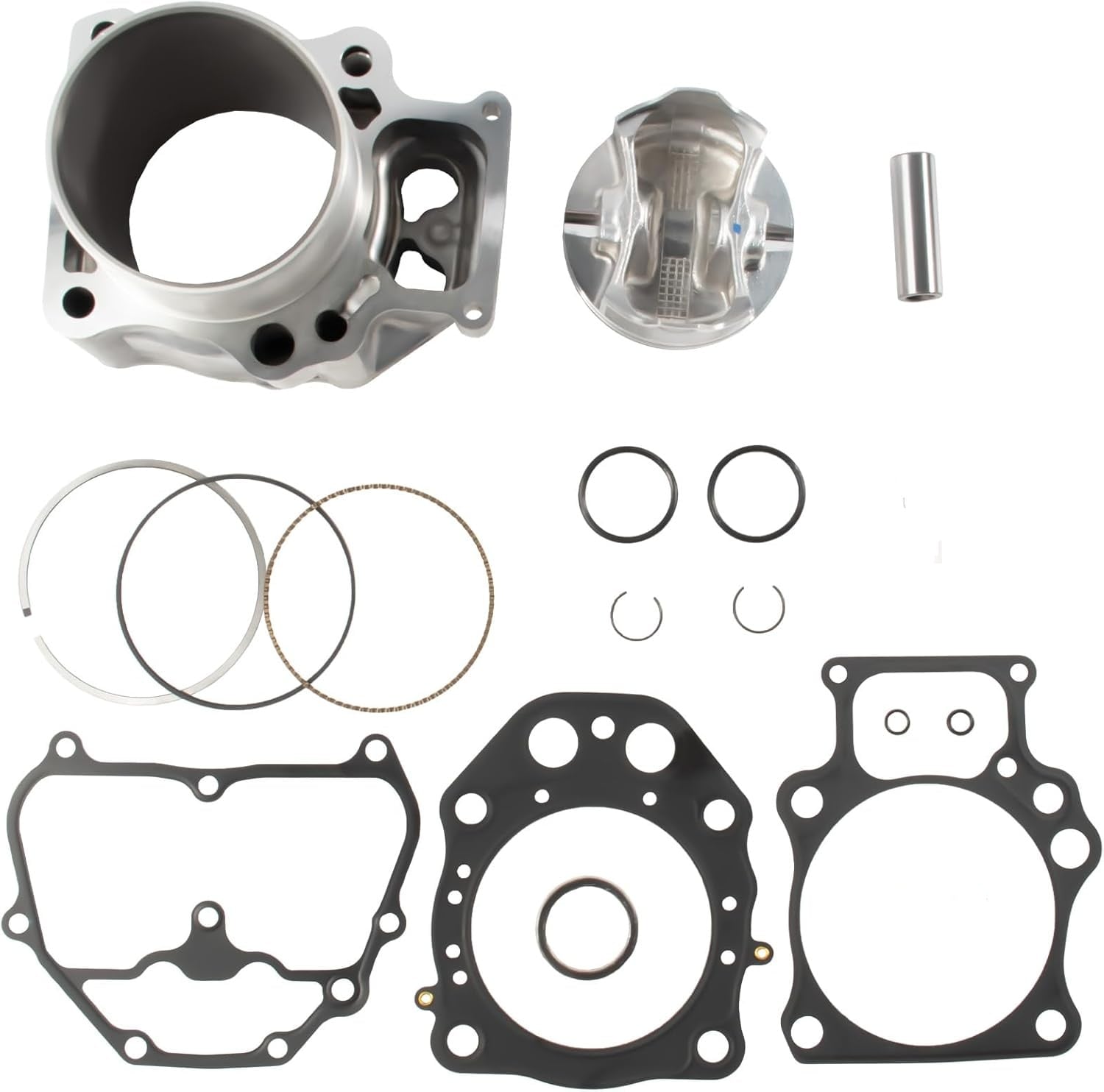

Included in set: Cylinder; piston; piston ring set; wrist pin; 2 × piston circlips; cylinder head gasket; cylinder base gasket; cylinder head cover gasket
