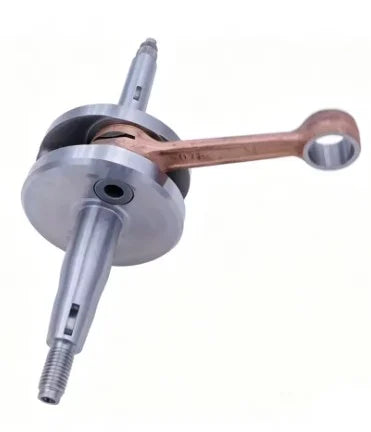

CRANKSHAFT ASSEMBLY 87-06 SUZUKI QUADSPORT LT S 80 12200-40B02

This crankshaft assembly is designed as a direct replacement for the Suzuki QuadSport 80 LT80 engine, providing the rotating crankshaft assembly required to transfer piston movement through the engine. Manufactured to OEM-style specifications, it is intended to match the original equipment in fit and appearance, use the standard mounting locations and provide reliable operation under normal and increased engine loads. It is suitable for 80 cc Suzuki LT80 models from 1987 to 2006.

Features

• Direct OEM-style replacement crankshaft assembly


• Uses the standard factory mounting locations


• Manufactured to meet or exceed OEM-quality requirements


• Designed to match the original equipment in appearance and fit


• Built for durability and resistance to wear under demanding riding conditions


• Designed to provide reliable engine operation and power transfer


• Suitable for increased power loads


• Intended as a cost-effective replacement option


• Designed for straightforward installation


• Supplied as a high-quality replacement part with a satisfaction guarantee

Specifications

• Engine displacement: 80 cc


• Crank pin bearing size associated with later applications: 17 x 23 x 14 mm


• Washer associated with the crankshaft assembly: 17 x 29 x 1 mm

Cross-Reference OEM Part Numbers

• Crankshaft assembly: 12200-40B02


• Crankshaft assembly: 12200-40B00


• Connecting rod: 12161-07901


• Crank pin: 12211-07902


• Right-hand crankshaft: 12221-29A00


• Left-hand crankshaft, Model H: 12261-40B00


• Left-hand crankshaft, Models J/K/L/M/N/P/R/S: 12261-40B01-0A0


• Bearing, Models H/J/K/L/M/N/P: 09263-17010


• Bearing, Models R/S: 09263-17022


• Washer, quantity 2: 09160-17022

Vehicle Fitments

• Suzuki QuadSport 80 (LT80/LT80S), 1987-2006, 80 cc


• 1987-1995 Suzuki LT80S – crankshaft application


• 1996 Suzuki LT80 – crankshaft application


• 1997 Suzuki LT-80 / LT80 – crankshaft application


• 1998-2006 Suzuki LT80 – crankshaft application

Installation & Ordering Notes

• Check the product image and existing component before ordering to confirm the correct part and avoid ordering errors.


• Professional installation is recommended if you are unsure of the correct fitting procedure.
