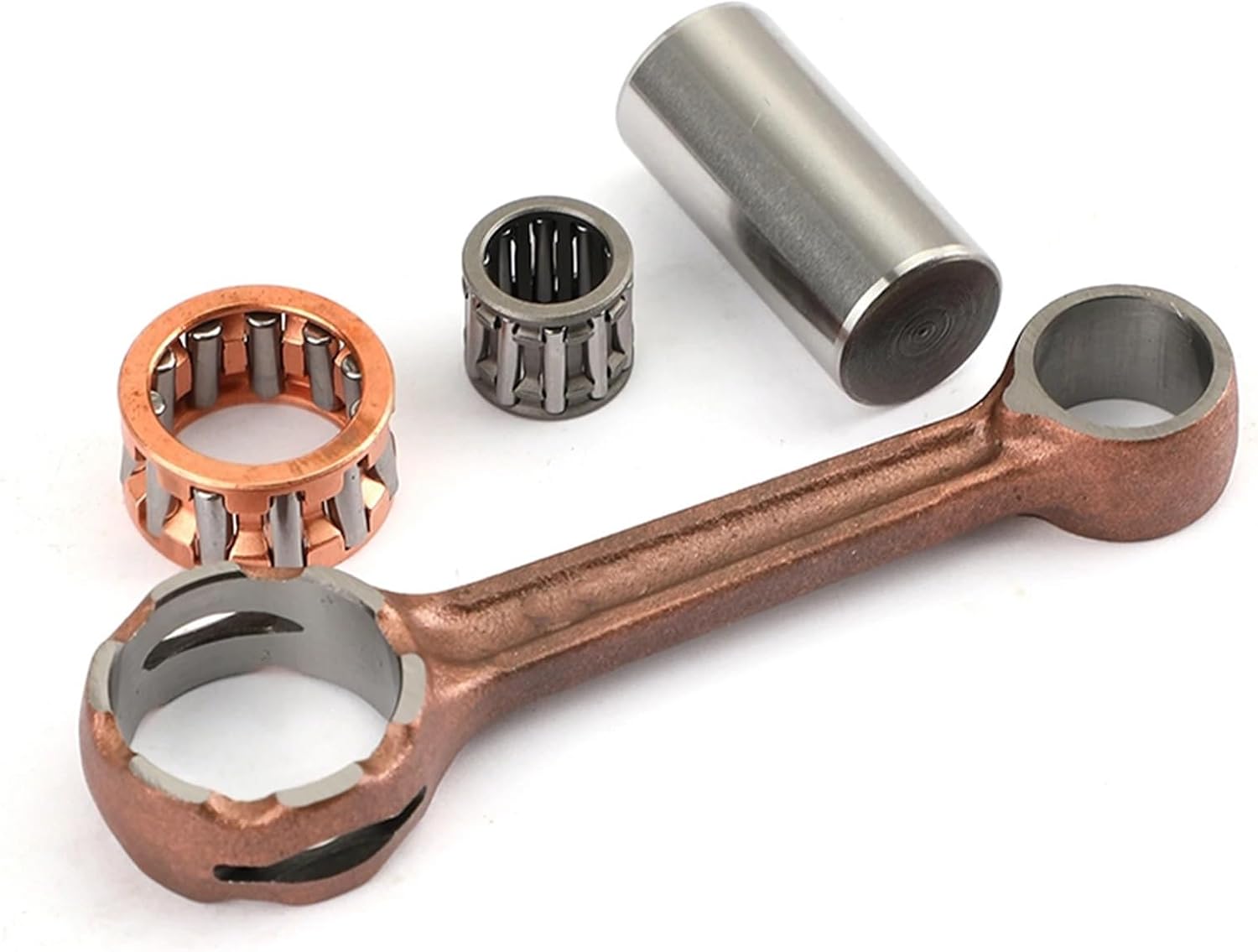

CONNECTING ROD KIT 50-16 SUZUKI TS 50 X ER 12mm piston pin

This connecting rod kit is a replacement crankshaft assembly component for compatible Suzuki 50 cc models. It is intended for engine rebuilds where the original connecting rod, crank pin, or associated needle bearings require replacement, helping restore correct crankshaft operation using OEM-style mounting and fitment.

Features

• Meets or exceeds OEM quality requirements.


• Direct OEM replacement.


• Uses stock mounting locations.


• Designed to handle increased power loads.


• Made to OEM specifications.


• Matches the original equipment appearance.


• Image should be checked before ordering to avoid incorrect selection.


• Professional installation is recommended if unsure.

Specifications

• 80.00 mm center-to-centre length,


• 12.00 mm rod width top and bottom


• Gudgeon Pin ?    12.00mm


• 16.00mm x 40mm crank pin diameter


• Needle bearing size: 12 x 16 x 15.8 mm.


• Needle bearing size: 16 x 22 x 11.8 mm.


• Washers 16x29x1.0

Cross-Reference OEM Part Numbers

• 09263-12023


• 12161-35E01


• 09263-16034


• 12211-04711

Vehicle Fitments

• Suzuki TS50, 1979-1983.


• Suzuki TS50X, 1984-2000.
