CONNECTING ROD RZR 1000, HOTRODS 8708 UTV POLARIS 1204907

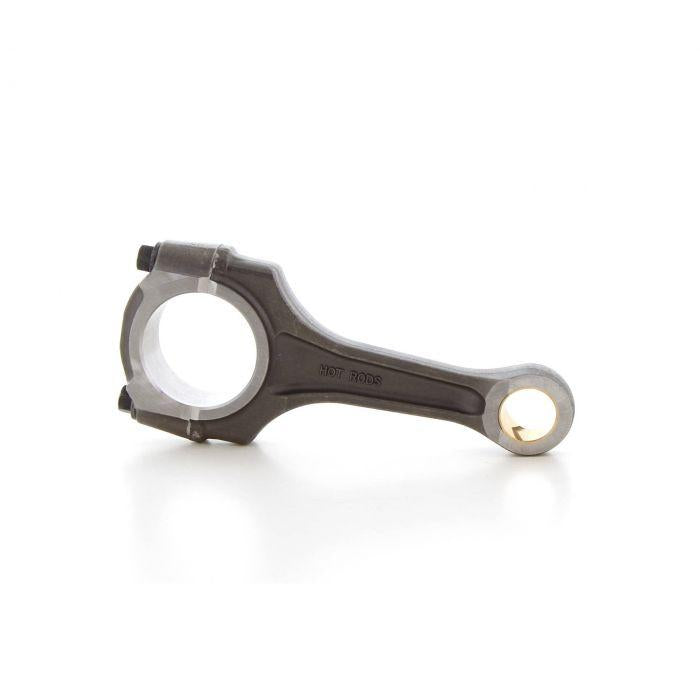

Hot Rods Connecting Rod Kit - 8708

This high-performance connecting rod kit is designed for demanding applications, delivering strength and durability under high-RPM conditions. Manufactured from hot-rolled ASTM 4115 steel and case-hardened for maximum durability, it includes all components required for installation and is compatible with both Hot Rods and OEM crankshafts.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.


• Caged needle roller bearing design for high-RPM reliability.


• Big-end features strategically placed scalloping and vent slots to minimize bearing race distortion.


• Shot-peened to remove surface stress risers and enhance strength.


• Double-honed for an ultra-round bearing surface, ensuring long-lasting performance.


• Small ends are double-drilled to improve wrist pin bearing lubrication and cooling.

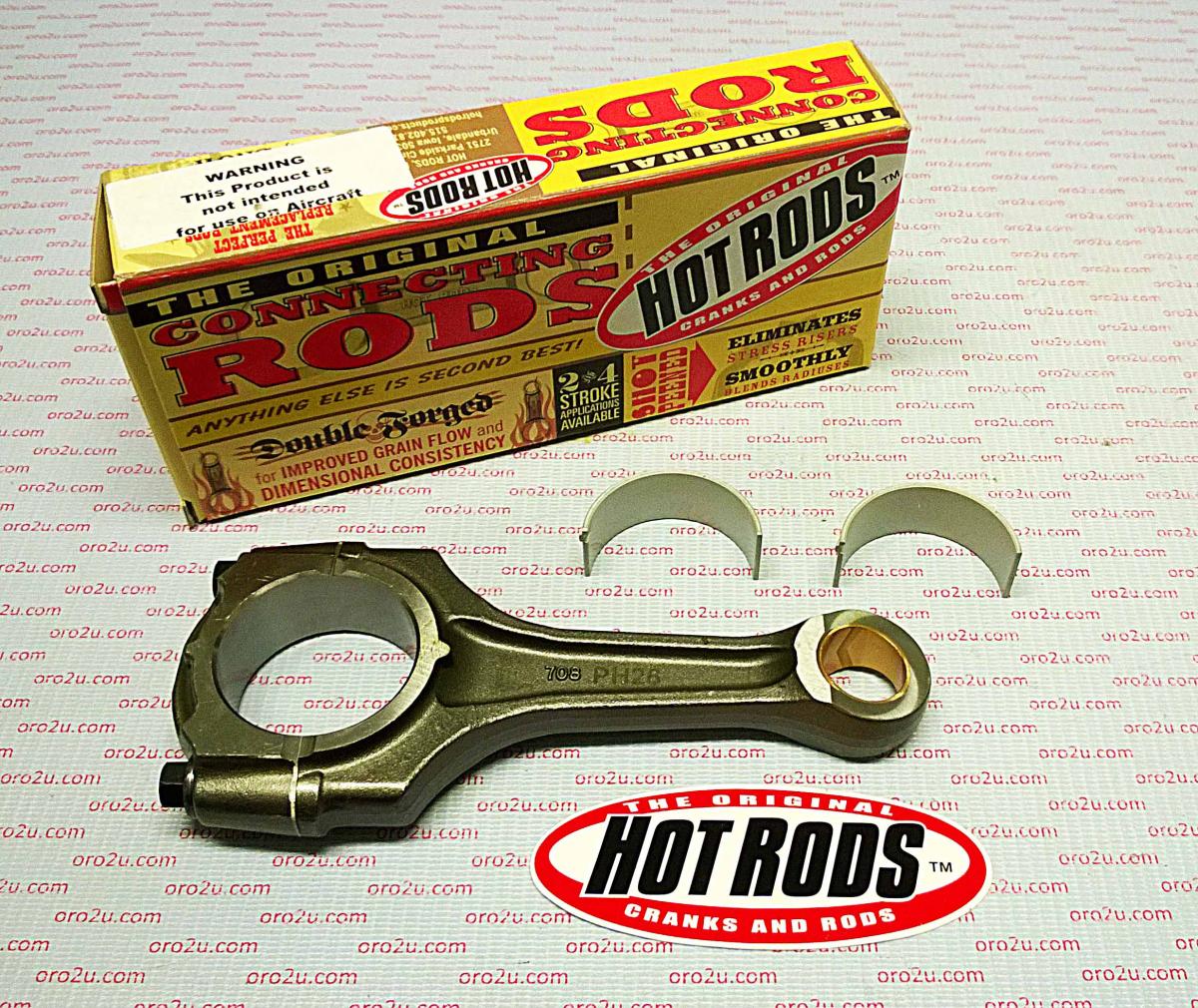

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.

Specifications:

• Big End Bore Ø: 40.95 mm


• Center to Center: 124.85 mm


• Small End Bore Ø: 20.00 mm

Included Items:

• (1) Connecting rod


• (1) Crankpin


• (1) Roller bearing


• (2) Thrust washers

Cross-Reference OEM Part Numbers:

• POLARIS: 1204907

Vehicle Fitments:

Polaris UTV:

• RZR XP 1000: 2014–2016


• RZR 4 1000: 2014–2016

Part Number:

56-9015.HR
