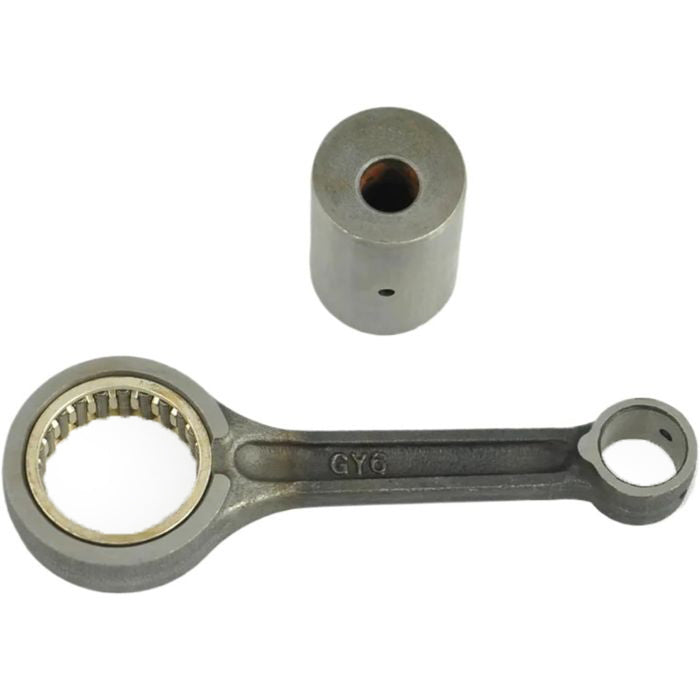

CONNECTING ROD KYMCO GY125 GY6 GY 6 125 13201-GY6-9000-1

This connecting rod kit is designed for Kymco GY6-based engines, covering GY125 and 125/150 variants. It is engineered to OEM standards for dimensional accuracy and reliable operation, supplied with matching pin and big-end bearing to the sizes listed.

Features

• Constructed from high-grade materials for reliability and consistent performance


• Manufactured to exacting standards to support confident engine rebuilds


• Meets or exceeds OEM quality specifications


• Direct OEM replacement


• Check the reference image before ordering to avoid errors


• Cost-effective replacement option


• Straightforward installation; if unsure, use a professional

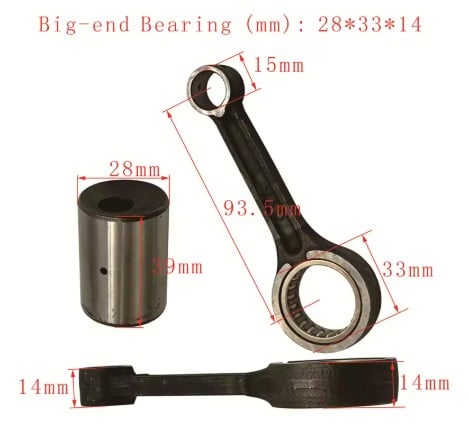

Specifications

• Big-end width: 14 mm


• Small-end width: 14 mm


• Big-end bore: 33 mm


• Small-end bore: 15 mm


• Centre-to-centre length: 93.5 mm


• Overall rod length: 124 mm


• Pin diameter: 28 mm


• Pin length: 39 mm


• Big-end bearing size: 28 × 33 × 14 mm

Cross-Reference OEM Part Numbers

•


  13201-GY6-9000-1
