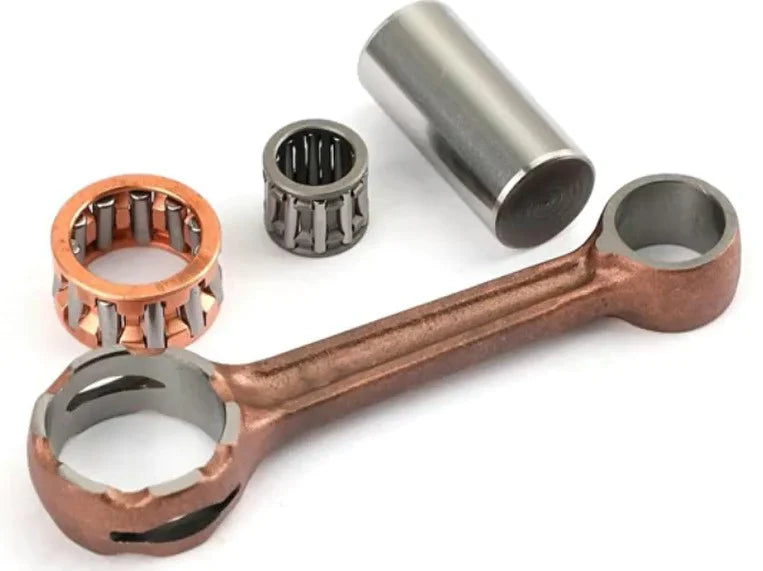

CONNECTING ROD KIT SUZUKI TS50 AUTOMATIC ROD SIZE 14 × 22 mm, 80 mm centres

This connecting rod kit is a replacement crankshaft assembly component for compatible Suzuki 50 cc automatic models. It is intended for engine rebuilds where the original connecting rod, crank pin or associated needle bearings require replacement, helping to restore correct crankshaft operation with OEM-style fitment and mounting.

Features

• Meets or exceeds OEM quality requirements


• Direct OEM replacement


• Uses the original stock mounting locations


• Designed to handle increased power loads


• Manufactured to OEM specifications


• Matches the original equipment appearance


• Product image should be checked before ordering to avoid incorrect selection


• Professional installation is recommended where the installer is unsure

Specifications

• Version: Automatic


• Piston pin not included


• Thrust washers not included


• Small-end bearing width must be physically verified

Sizing

• Connecting rod small-end eye internal diameter: 14.00 mm


• Connecting rod big-end eye internal diameter: 22.00 mm


• Connecting rod centre-to-centre length: 80.00 mm


• Connecting rod small-end width: 12.00 mm


• Connecting rod big-end width: 12.00 mm


• Approximate overall connecting rod length: 104.00 mm


• Piston pin diameter: 10 mm (not included)


• Small-end bearing dimensions: 10 × 14 × approximately 13 mm


• Big-end bearing dimensions: 16 × 22 × 11.8 mm, nominally 12 mm wide


• Crank pin dimensions: 16 × 40 mm


• Thrust washer dimensions: two required, each measuring 16 × 19 × 0.9 mm (not included)

Vehicle Fitments

• Suzuki TS50ER Automatic, 1950–2016
