CONNECTING ROD KIT MAICO 250, MAICO 250 79-83 BCO0562A ROTAX BT20
CONNECTING ROD KIT MAICO 250, MAICO 250 79-83 BCO0562A ROTAX BT20
MAICO
MC / GS 250 1979-1983,
Connecting ConRod rebuild kit. Made in Italy. BCO0562A
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

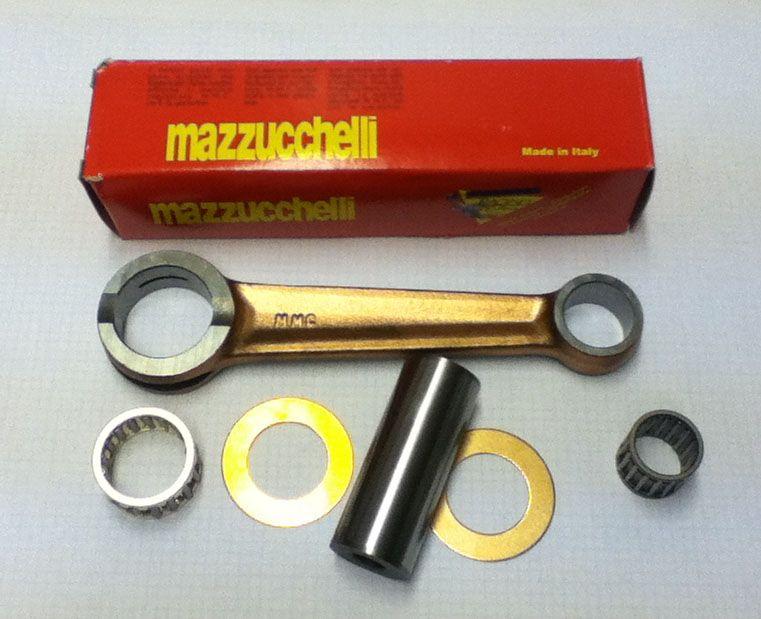

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
132 |
|
Small End Bearing |
18x22x22 |
|
Small End Bore Ø |
22 |
|
Small End Width |
17 |
|
Big End Bearing |
25x31x17 |
|
Big End Bore Ø |
31 |
|
Big End Width |
17 |
|
Big End Pin Ø |
25 |
|
Big End Pin Length |
57 |
|
Washer Thickness |
25x41x1 |
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 132, B = 18, C = 25, D = 17, E = 17, F = 57
Part No. 56-964 (Distributed by oro2u.com)
Cross reference numbers ONLY.
Mazzucchelli BCO0458, ROTAX BT20,
