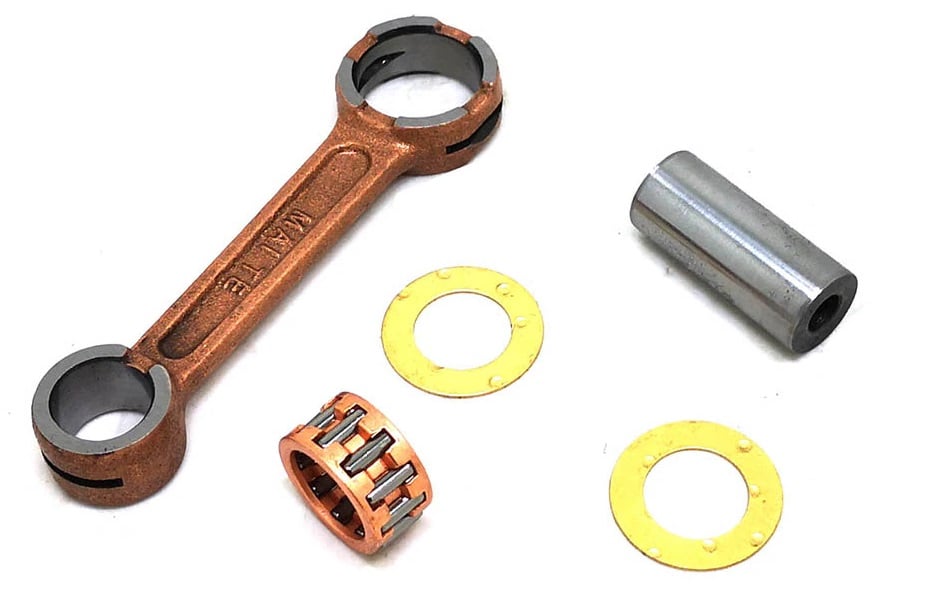

CONNECTING ROD KIT 03-08 KTM SX PRO JUNIOR SENIOR 50 65 45030015500

This connecting conrod rebuild kit is an OE replacement connecting rod assembly for KTM SX65 2003-2008 models and KTM 50 SX Mini 1997-2002 models fitted with the Franco Morini engine. It is designed for crankshaft rebuilding and is supplied as a complete rod assembly with the required crankpin, crankpin bearing, top end bearing and thrust washers where applicable.

Features

• Heavy-duty OE replacement connecting rod


• Designed for crankshaft rebuild applications


• Uses a caged needle roller bearing design for high-RPM operation


• Supplied complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers where required


• Compatible with aftermarket and OE crankshafts

Specifications

• Material: SNCM220 chrome alloy steel


• Crankpin material: hot-rolled ASTM steel, case hardened


• Thrust washer material: bronze phosphor with silver coating


• Centre to centre: 88 mm


• Small end bearing: 12 x 15 x 16.3 mm


• Small end bore diameter: 15 mm


• Small end width: 13 mm


• Big end bearing: 18 x 24 x 14.8 mm


• Big end bore diameter: 24 mm


• Big end width: 14.90 mm


• Big end pin diameter: 18 mm


• Big end pin length: 42 mm


• Washer thickness: 1.00 mm

Cross-Reference OEM Part Numbers

• KTM: 46030015100


• KTM: 45030015500


• Hot Rods: 8626


• ProX: 03-6023


• Wossner: P2002


• Psychic: MX-09039

Vehicle Fitments

• KTM SX65, 2003-2008


• KTM 50 SX Mini, 1997-2002, fitted with Franco Morini engine
