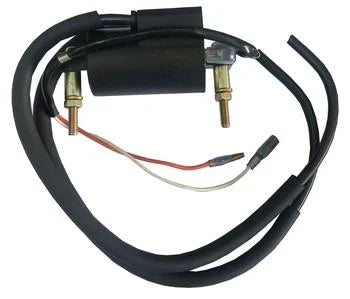

COIL HT BSE 4112, HONDA CB500/550/750, KAWASAKI KZ650/900/1000, Suzuki GS550/750, Moto Guzzi, Benelli

The BSE 4112 HT ignition coil is a replacement coil for the listed motorcycles with contact-breaker ignition. It provides two high-tension outputs for the ignition system; check the electrical specifications and mounting centres against the existing coil before fitting.

Features

• Direct replacement for the listed applications.


• Double-exit design serves two ignition leads.

Specifications

• Ignition type: contact-breaker (points)


• Rated voltage: 12 V


• High-tension outputs: 2


• Electrical terminals: 2


• Mounting holes: 2


• Mounting hole centres: 91 mm


• Primary resistance: 3.8 O

Cross-Reference OEM Part Numbers

• BSE: 4112


• Benelli, Moto Guzzi: 61716500


• Honda: 30500-300-013, 30500-404-000, 30500-323-023


• Kawasaki: 21121-1004, 21121-081, 21121-060, 21121-1003, 21121-058, 21121-1001, 21121-1002, 21121-1013, 21121-1014, 21171-1019


• Suzuki: 33410-45020, 33410-45021

Vehicle Fitments

• Honda CB500: 1971–1973


• Honda CB550: 1975–1978


• Honda CB750: 1969–1978


• Kawasaki KZ650: 1977–1980


• Kawasaki KZ900: 1976–1977


• Kawasaki KZ1000: 1977–1980


• Suzuki GS550: 1977–1979


• Suzuki GS750: 1977–1979
