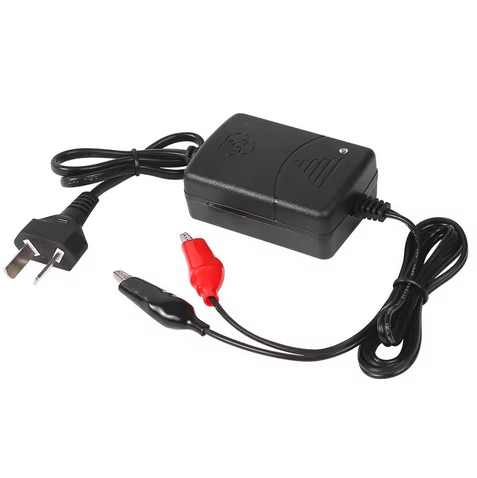

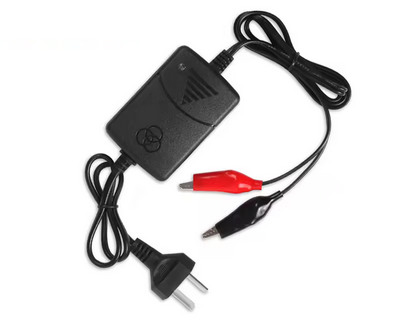

BATTERY TRICKLE CHARGER 12V 1300mA

This 12V battery trickle charger (1300 mA) provides controlled maintenance charging for small lead-acid batteries, delivering stable voltage and current with built-in overload protection. It supports worldwide AC input and features compact dimensions with clip connections for simple hookup.

Features

• Trickle charging for 12V batteries


• Wide AC input range for global use


• Overload protection with automatic recovery


• Compact, lightweight design


• Red and black terminal clip connections


• Designed for straightforward installation

Specifications

• Charging performance: 13.8 V / 1 A (12 V / 1300 mA)


• Floating charge voltage: 14.2 V ± 0.5 V


• Constant voltage output: 13.8 V ± 0.5 V


• Constant current charging current: 0.85–1.25 A


• Conversion current: 450–550 mA


• DC maximum output power: 13 W


• Efficiency: ≥84% (maximum output voltage, full load)


• Input voltage range: 100–240 V AC, 50–60 Hz


• Input current: ≤0.05 A (max)


• Overload protection: 105%–150%, reset by automatic recovery


• Temperature coefficient: ±0.03%/°C (0–50 °C)


• Operating temperature/humidity: −10 °C to +40 °C, 20%–90% RH


• Storage temperature/humidity: −10 °C to +60 °C, 20%–90% RH


• Dimensions (L×W×H): 85 × 48 × 30 mm


• Cable length: input 65 cm; output 85 cm


• Output connection: red and black terminal clips
